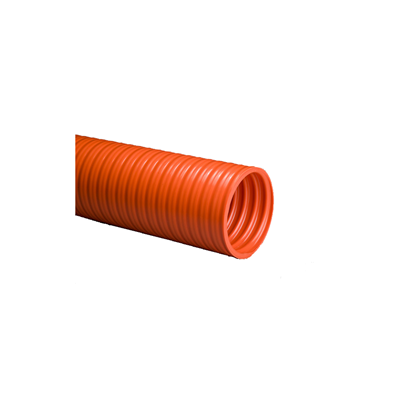

4.0-SLEEVE-TDHD by Texcel | SIGMA-BANDING SLEEVES™ Series | Orange Banding Sleeve For: SIGMA-TDHD | 4" Hose ID | 3ft Length
Buy more, save moreDiscounts applied in cart/checkout.
Hose Accessories
SIGMA™ Banding Sleeves
Flexible PVC banding sleeves for use with SIGMA™ Series tank drop and vapor recovery hose.
1
What are these sleeves used for?
Used in 12" sections on each hose end so band clamps do not slip or cut into the helix, as part of the SIGMA™ hose assembly procedure. SIGMA-COIL™ banding coils (2.0-SLINKY, 3.0-SLINKY, 4.0-SLINKY) are the alternative.
- Tank drop hose assemblies
- Vapor recovery hose assemblies
- Band clamp retention
2
What are the key specifications?
Material
Non-food-grade, flexible PVC
Temperature Range
-40°F to +150°F (depends on actual application)
Design
For right-handed spiral hose
Standard Length
3'
3
Which sizes are available?
| Part Number | Hose ID | Std. Length | Sleeve Color | Weight (lbs/ft) |
|---|---|---|---|---|
| Green — for SIGMA-TDG™ tank drop hose | ||||
| 3.0-SLEEVE-TDG | 3" | 3' | Green | 3.20 |
| 4.0-SLEEVE-TDG | 4" | 3' | Green | 3.75 |
| Orange — for SIGMA-TDHD™ tank drop hose | ||||
| 2.0-SLEEVE-TDHD | 2" | 3' | Orange | 1.10 |
| 3.0-SLEEVE-TDHD | 3" | 3' | Orange | 3.20 |
| 4.0-SLEEVE-TDHD | 4" | 3' | Orange | 3.75 |
| Red — for SIGMA-TD150™ tank drop hose | ||||
| 2.0-SLEEVE-TD150 | 2" | 3' | Red | 1.10 |
| 3.0-SLEEVE-TD150 | 3" | 3' | Red | 3.20 |
| 4.0-SLEEVE-TD150 | 4" | 3' | Red | 3.75 |
| Yellow — for SIGMA-VRM™ and SIGMA-VRH™ vapor recovery hose | ||||
| 2.0-SLEEVE-VAPOR | 2" | 3' | Yellow | 1.10 |
| 3.0-SLEEVE-VAPOR | 3" | 3' | Yellow | 3.20 |
| 4.0-SLEEVE-VAPOR | 4" | 3' | Yellow | 3.75 |
4
Which hose does each sleeve fit?
- SIGMA-TDG™ (green sleeves) — SPVC-TDG-3.0-100, SPVC-TDG-4.0-100
- SIGMA-TDHD™ (orange sleeves) — SPVC-TDHD-2.0-100, SPVC-TDHD-3.0-100, SPVC-TDHD-4.0-100
- SIGMA-TD150™ (red sleeves) — SPVC-TD150-2.0-100, SPVC-TD150-3.0-100, SPVC-TD150-4.0-100
- SIGMA-VRM™ / SIGMA-VRH™ (yellow sleeves) — SPVC-VRM-2.0-100, SPVC-VRM-3.0-100, SPVC-VRM-4.0-100, SPVC-VRH-3.0-100, SPVC-VRH-4.0-100
