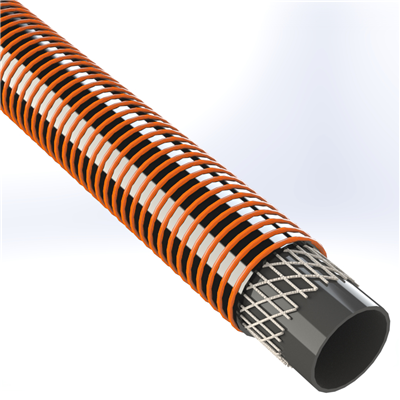

SPVC-TDHD-2.0-100 by Texcel | SIGMA-TDHD™ Series | Heavy-Duty Tank Drop Hose | 2" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Black w/ Orange Spiral Yarn
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose
SIGMA™-TDHD Heavy-Duty Tank Drop Hose
High quality gasoline tank drop hose that is lightweight and flexible, with a high abrasion-resistant helix for easy drag and handling.
1
What is this hose used for?
Suitable for the transfer of gasoline, ethanol blends (up to E15) and other petroleum products with an aromatic content of 40% or less.
- Tank drop service
- Gasoline
- Ethanol blends (up to E15)
2
What are the key specifications?
Construction
Black, specially compounded NBR/PVC (up to 40% aromatics), static dissipating, with a rigid, orange, right-handed PVC helix with spiraled synthetic yarn
Grounding
Embedded tin-coated copper wire
Temperature Range
-40°F to +150°F (service temperature depends on actual application)
Safety Factor
4:1
Compares To
120LT
Branding
TEXCEL® SIGMA-TDHD - HEAVY DUTY TANK DROP HOSE - LOT
3
What are the main product features?
- Compatible with gasoline and ethanol blends — up to E15.
- Flexible — even in sub-zero temperatures.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| SPVC-TDHD-2.0-100 | 2" | 2.63" | 65 | 29 | 5" | 1.12 |
| SPVC-TDHD-3.0-100 | 3" | 3.81" | 65 | 29 | 6" | 1.38 |
| SPVC-TDHD-4.0-100 | 4" | 4.72" | 65 | 29 | 8" | 2.19 |
5
Which accessories are recommended?
SIGMA-TDHD™ sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures.
- SIGMA-TDHD™ sleeves (orange) — 2.0-SLEEVE-TDHD, 3.0-SLEEVE-TDHD, 4.0-SLEEVE-TDHD
- SIGMA-COIL™ banding coils — 2.0-SLINKY, 3.0-SLINKY, 4.0-SLINKY
