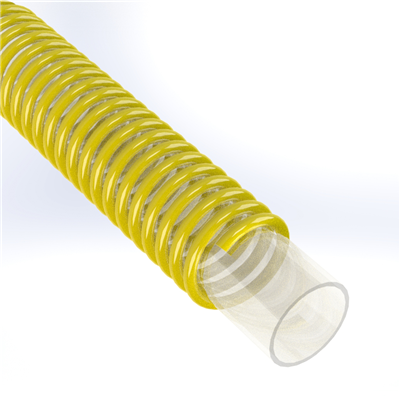

SPVC-VRM-4.0-100 by Texcel | SIGMA-VRM™ Series | Heavy-Duty Tank Drop Hose | 4" Hose ID | 9 PSI | 29 in/Hg Vacuum Rated | Clear w/ Yellow Spiral
SIGMA™ by Texcel
VRM™ Series | Medium-Duty Yellow Vapor Recovery Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $33.30 |
| 40–79 | $30.12 |
| 80+ | $26.57 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | High quality vapor recovery hose for medium-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D 6751). Extremely flexible, even in sub-zero temperatures. | Construction: | Clear, specially compounded polyurethane with a yellow, rigid PVC, right-handed helix |
| Grounding: | Embedded tin coated copper wire | Safety Factor: | 4:1 |
| Temperature: | -40°F to +150°F (service temperature depends on actual application) | Branding: | TEXCEL® SIGMA-VRM™ - MEDIUM DUTY VAPOR RECOVERY HOSE -LOT |
| Compared To: | Tigervapor/ST-120-VP | Sleeves: | SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| SPVC-VRM-2.0-100 | 2" | 3" | 17 psi | 29 | 3" | 0.52 lbs |
| SPVC-VRM-3.0-100 | 3" | 3.50" | 11 psi | 29 | 3.5" | 0.77 lbs |
| SPVC-VRM-4.0-100 | 4" | 4.50" | 9 psi | 29 | 4.5" | 1.11 lbs |
