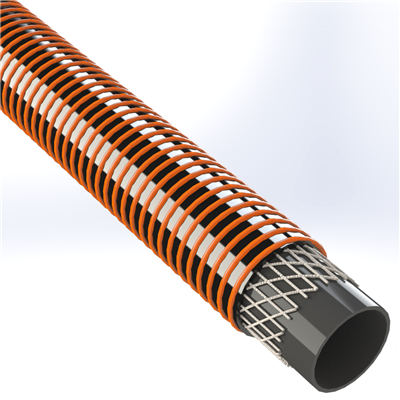

SPVC-TDHD-3.0-100 by Texcel | SIGMA-TDHD™ Series | Heavy-Duty Tank Drop Hose | 3" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Black w/ Orange Spiral Yarn

$2,272.77

SIGMA™ by Texcel
TDHD™ Series | Heavy-Duty Tank Drop Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Hose Length: 100' Length

100' Length Exact Length (FT)

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Technical Data:
Description:	High quality gasoline tank drop hose that is lightweight and flexible with a high abrasion resistant helix for easy drag and handling. Flexible, even in sub-zero temperatures. It's suitable for the transfer of gasoline, ethanol blends (up to E15) and other petroleum products with an aromatic content of 40% or less.	Construction:	Black, specially compounded NBR/PVC (Up to 40% Aromatics) – static dissipating with a Rigid, orange, right-handed PVC helix with spiraled synthetic yarn
		Grounding:	Embedded tin coated copper wire
Safety Factor:	4:1	Temperature:	-40°F to +150°F (service temperature depends on actual application)
Branding:	TEXCEL® SIGMA -TDHD - HEAVY DUTY TANK DROP HOSE -LOT	Compared To:	120LT
Sleeves:	SIGMA-TDHD™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures	Features:	Compatible with gasoline and ethanol blends up to E15

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
SPVC-TDHD-2.0-100	2"	2.63"	65 psi	29	5"	1.12 lbs
SPVC-TDHD-3.0-100	3"	3.81"	65 psi	29	6"	1.38 lbs
SPVC-TDHD-4.0-100	4"	4.72"	65 psi	29	8"	2.19 lbs
