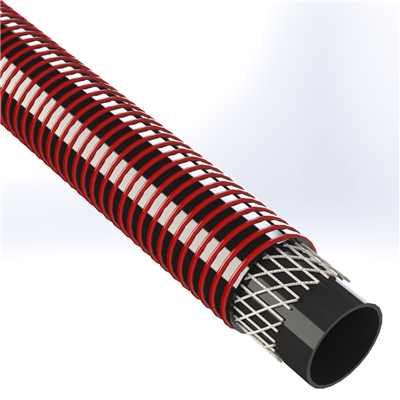

SPVC-TD150-2.0-100 by Texcel | SIGMA-TD150™ Series | Heavy-Duty Tank Drop Hose | 2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black w/ Red Spiral Yarn
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Data: | |||
|---|---|---|---|
| Description: | This lightweight drop hose is designed for higher working pressure applications where 150psi is desired. It’s suitable for the transfer of gasoline, ethanol blends (up to E15), and other petroleum products with an aromatic content of 40% or less in both drop and pump off service applications. Its rugged and abrasion-resistant construction allows for a low coefficient of friction for ease and maneuverability. | Construction: | Black, specially compounded NBR/PVC (up to 60% aromatics) – static-dissipating with a rigid PVC right-handed helix (red) and spiraled synthetic yarn |
| Grounding: | Embedded tin coated copper wire | ||
| Safety Factor: | 4:1 | Temperature: | -40°F to +150°F (service temperature depends on actual application) |
| Branding: | TEXCEL® SIGMA-TD150™ - HEAVY DUTY TANK DROP HOSE 150 PSI W.P. -LOT | Compared To: | SP353 |
| Sleeves: | SIGMA-TD150™ Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures | Features: | Designed for use at a higher 150psi working pressure |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| SPVC-TD150-2.0-100 | 2" | 2.73" | 150 psi | 29 | 6" | 1.26 lbs |
| SPVC-TD150-3.0-100 | 3" | 3.75" | 150 psi | 29 | 7" | 1.55 lbs |
| SPVC-TD150-4.0-100 | 4" | 4.88" | 150 psi | 29 | 9" | 2.49 lbs |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
