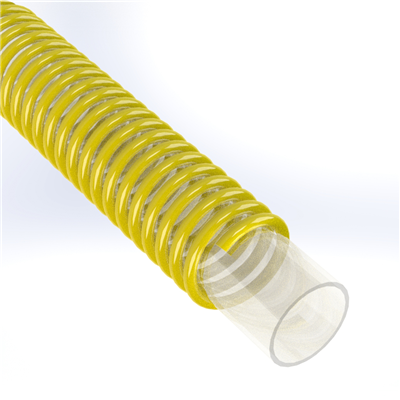

SPVC-VRM-2.0-100 by Texcel | SIGMA-VRM™ Series | Heavy-Duty Tank Drop Hose | 2" Hose ID | 17 PSI | 29 in/Hg Vacuum Rated | Clear w/ Yellow Spiral
Package Quantity: 100 FT
SIGMA™-VRM Medium-Duty Vapor Recovery Hose
High quality vapor recovery hose for medium-duty applications, extremely flexible even in sub-zero temperatures.
1
What is this hose used for?
Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D-6751).
- Vapor recovery
- Gasoline vapors
- Diesel vapors
- Biofuel vapors
2
What are the key specifications?
Clear, specially compounded polyurethane with a yellow, rigid PVC, right-handed helix
Embedded tin-coated copper wire
-40°F to +150°F (service temperature depends on actual application)
4:1
Tigervapor / ST-120-VP
TEXCEL® SIGMA-VRM™ - MEDIUM DUTY VAPOR RECOVERY HOSE - LOT
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| SPVC-VRM-2.0-100 | 2" | 3" | 17 | 29 | 3" | 0.52 |
| SPVC-VRM-3.0-100 | 3" | 3.50" | 11 | 29 | 3.5" | 0.77 |
| SPVC-VRM-4.0-100 | 4" | 4.50" | 9 | 29 | 4.5" | 1.11 |
4
Which accessories are recommended?
SIGMA-VR™ sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures.
- SIGMA vapor sleeves (yellow) — 2.0-SLEEVE-VAPOR, 3.0-SLEEVE-VAPOR, 4.0-SLEEVE-VAPOR
- SIGMA-COIL™ banding coils — 2.0-SLINKY, 3.0-SLINKY, 4.0-SLINKY
Additional Product Data:
