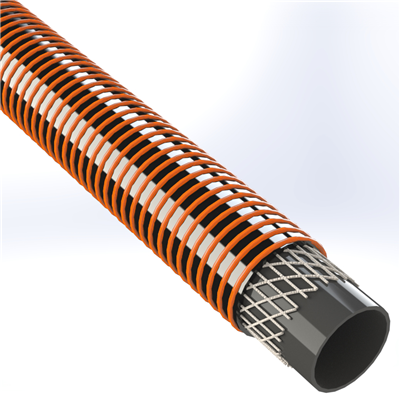

SPVC-TDHD-4.0-100 by Texcel | SIGMA-TDHD™ Series | Heavy-Duty Tank Drop Hose | 4" Hose ID | 65 PSI | 29 in/Hg Vacuum Rated | Black w/ Orange Spiral Yarn
SIGMA™ by Texcel
TDHD™ Series | Heavy-Duty Tank Drop Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $49.89 |
| 40–79 | $45.11 |
| 80+ | $39.80 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
Special Properties:
| Technical Data: | |||
|---|---|---|---|
| Description: | High quality gasoline tank drop hose that is lightweight and flexible with a high abrasion resistant helix for easy drag and handling. Flexible, even in sub-zero temperatures. It's suitable for the transfer of gasoline, ethanol blends (up to E15) and other petroleum products with an aromatic content of 40% or less. | Construction: | Black, specially compounded NBR/PVC (Up to 40% Aromatics) – static dissipating with a Rigid, orange, right-handed PVC helix with spiraled synthetic yarn |
| Grounding: | Embedded tin coated copper wire | ||
| Safety Factor: | 4:1 | Temperature: | -40°F to +150°F (service temperature depends on actual application) |
| Branding: | TEXCEL® SIGMA -TDHD - HEAVY DUTY TANK DROP HOSE -LOT | Compared To: | 120LT |
| Sleeves: | SIGMA-TDHD™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures | Features: | Compatible with gasoline and ethanol blends up to E15 |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| SPVC-TDHD-2.0-100 | 2" | 2.63" | 65 psi | 29 | 5" | 1.12 lbs |
| SPVC-TDHD-3.0-100 | 3" | 3.81" | 65 psi | 29 | 6" | 1.38 lbs |
| SPVC-TDHD-4.0-100 | 4" | 4.72" | 65 psi | 29 | 8" | 2.19 lbs |
