5260520 by Fenner Drives | Eagle Hyfen 85 CXF V Belting | Cross Section A | 0.50" w x 0.51" h, | Reinforced | Blue, Green, Orange | 100ft
Fenner Drives

5260520 by Fenner Drives | Eagle Hyfen 85 CXF V Belting | Cross Section A | 0.50" w x 0.51" h, | Reinforced | Blue, Green, Orange | 100ft

Sale price$2,093.07
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

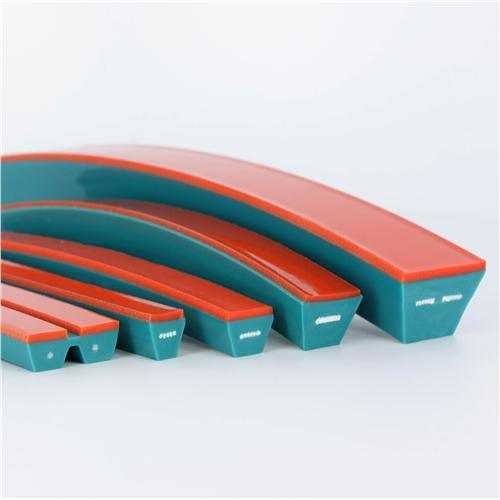

  • Eagle Hyfen 85 Reinforced CXF Vee Belting is a co-extruded belt constructed of a polyester reinforced 85 A durometer polyurethane base belt and a softer, higher CoF (coefficient of friction) 60 A durometer polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives unique dual durometer belts offer strength and load carrying capabilities with the added bonus of the ultra-grip tops. The combination of a tough 85A durometer base and an ultra-grip co-extruded 60A top surface gives you the strength and grip that your demanding application needs! In addition to the already reliant durability of this belt, there is also a polyester reinforcing tensile member to increase the strength of the belt.

    Best Suited For: Conveying applications that require an extremely strong, low stretch vee belt combined with a high traction surface. Perfectly suited for carrying heavy loads up an inclined conveyor.

  • 85A polyurethane base durometer
  • 60A co-extruded unltra-grip top surface
  • Strength and load carrying capabilities
  • Polyester reinforcing tensile membert
  • RoHS 2002/95/EC Directive Compliant


    • This CXF belt has a flat top surface providing you with the extra grip you need for your application. Our integrally bonded tops cannot delaminate leaving you worry and stress free! Fenner Drives Eagle Co-Extruded belting easily outperforms all adhesively bonded special surface belts!

    Eagle Hyfen 85 Reinforced CXF Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Eagle Hyfen 85 Reinforced CXF Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Twin, Vee Profile Size: A/13, B/17, C/22, D/32
Reinforcement: Polyester Tape Color: Blue, Green, Orange
Compliancy: RoHS Durometer: 60A, 85A
Material: Polyurethane Special Feature: Smooth Ultra-Grip 60A Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP80AR Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 5.9 26.3 16 71.1 24 106.9 29.4 130.7 0.066 lbs 0.099 kg
4940066 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 3.9 17.3 9.3 41.2 14.8 65.8 19.5 86.6 0.065 lbs 0.097 kg
L04I85AR Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.065 lbs 0.096 kg
L04G89AR Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 3.8 16.8 14.3 63.5 53.9 239.9 88.7 394.8 0.065 lbs 0.096 kg
4940075 Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
4940071 Eagle Beige 95 A/13 Cogged 1/2 x 5/16" 13 x 8mm 2.78" 71mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
5260200 Eagle Hyfen 95 A 1/2 x 3/8" --- 3.75" 95mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5220000 Eagle Hyfen 95 A Cogged 1/2 x 3/8" --- 2.75" 70mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5299007 Eagle Hyfen 85 A Ridge-Top 1/2 x 9/16" --- 6.19" 157mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.1 lbs 0.148 kg
5299019 Eagle Hyfen 85 A Twin 1-3/16 x 5/16" --- 3.44" 87mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.151 lbs 0.224 kg
5260520 Eagle Hyfen 85 CXF A 0.50 x 0.51" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.103 lbs 0.153 kg
5260520 Eagle Hyfen 85 CXR A 1.19 x 0.41" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.088 lbs 0.131 kg
5260572 Eagle Hyfen 85 CXF A Twin 0.50 x 0.51" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.203 lbs 0.302 kg
5260577 Eagle Hyfen 85 CXR A Twin 1.19 x 0.41" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.174 lbs 0.259 kg
493060030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.085 lbs 0.127 kg
L04I85ARSG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.095 lbs 0.142 kg
493150030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.084 lbs 0.124 kg
