4940075 by Fenner Drives | Eagle 95 V Belting | Cross Section A/13 | 1/2" w x 5/16" h, 13mm w x 8mm h | Reinforced | Beige | 100ft
Fenner Drives

4940075 by Fenner Drives | Eagle 95 V Belting | Cross Section A/13 | 1/2" w x 5/16" h, 13mm w x 8mm h | Reinforced | Beige | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:

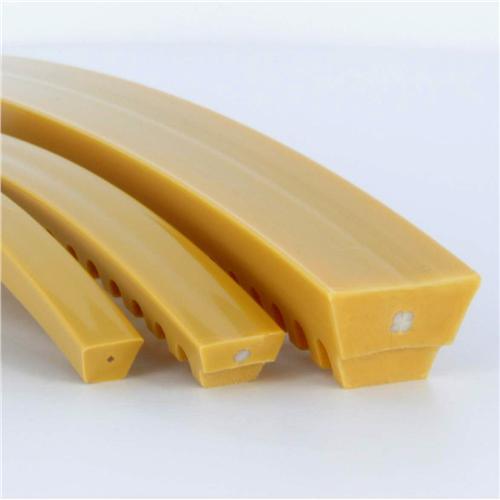

  • Eagle Beige 95 Reinforced Vee Belting is constructed of polyurethane with a 95 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Beige 95 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Beige 95 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Vee belt profile.

  • 95 shore A durometer
  • Polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch, High strength, REACH


    • The proven workhorses! Eagle Beige 95 Reinforced Vee Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Beige Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.


Since Eagle Beige 95 Reinforced Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee, Vee Cogged Profile Size: 3L
Reinforcement: Single Polyester Cord Color: Beige
Compliancy: REACH Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP80AR Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 5.9 26.3 16 71.1 24 106.9 29.4 130.7 0.066 lbs 0.099 kg
4940066 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 3.9 17.3 9.3 41.2 14.8 65.8 19.5 86.6 0.065 lbs 0.097 kg
L04I85AR Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.065 lbs 0.096 kg
L04G89AR Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 3.8 16.8 14.3 63.5 53.9 239.9 88.7 394.8 0.065 lbs 0.096 kg
4940075 Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
4940071 Eagle Beige 95 A/13 Cogged 1/2 x 5/16" 13 x 8mm 2.78" 71mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
5260200 Eagle Hyfen 95 A 1/2 x 3/8" --- 3.75" 95mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5220000 Eagle Hyfen 95 A Cogged 1/2 x 3/8" --- 2.75" 70mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5299007 Eagle Hyfen 85 A Ridge-Top 1/2 x 9/16" --- 6.19" 157mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.1 lbs 0.148 kg
5299019 Eagle Hyfen 85 A Twin 1-3/16 x 5/16" --- 3.44" 87mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.151 lbs 0.224 kg
5260520 Eagle Hyfen 85 CXF A 0.50 x 0.51" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.103 lbs 0.153 kg
5260520 Eagle Hyfen 85 CXR A 1.19 x 0.41" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.088 lbs 0.131 kg
5260572 Eagle Hyfen 85 CXF A Twin 0.50 x 0.51" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.203 lbs 0.302 kg
5260577 Eagle Hyfen 85 CXR A Twin 1.19 x 0.41" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.174 lbs 0.259 kg
493060030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.085 lbs 0.127 kg
L04I85ARSG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.095 lbs 0.142 kg
493150030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.084 lbs 0.124 kg
