L04I85ARSG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section A/13 | 0.50" w x 0.53" h, 13mm w x 13.51mm h | Reinforced | Ivory | 100ft
Fenner Drives

L04I85ARSG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section A/13 | 0.50" w x 0.53" h, 13mm w x 13.51mm h | Reinforced | Ivory | 100ft

Sale price$1,202.84
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

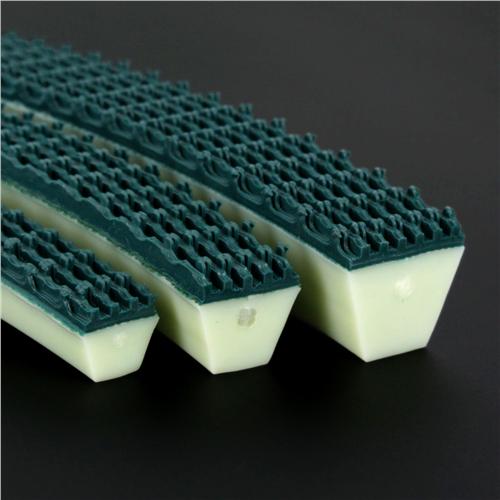

  • Eagle Ivory 85 Reinforced SGT PVC is constructed of polyester cord reinforcement with an 85 A durometer polyurethane base belt and an extremely compliant SGT (SuperGrip Top) PVC top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Reinforced SGT PVC Vee Belts are your answer. Our PVC 50A SuperGrip Top surface is soft and tacky enough that it won't damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern.

    Best Suited For: Conveying applications that require a strong, low stretch vee belt combined with a super grip surface. Perfect for applications where conveying in slippery environments, up steep inclines or where moving easily damaged products is more important than abrasion resistance.

  • 85A polyurethane base durometer
  • 50A PVC top surface
  • Integrally bonded tops cannot delaminate
  • Polyester reinforcing tensile member for extra strength
  • RoHS 2002/95/EC Directive Compliant


    • Eagle Ivory 85 Reinforced SGT PVC Vee Belts are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

    Eagle Ivory 85 Reinforced SGT PVC Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Ivory 85 Reinforced SGT PVC Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Green, Ivory
Compliancy: RoHS Durometer: 50A, 85A
Material: Polyurethane, Polyurethane Top Surface Special Feature: Polyurethane Grip Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP80AR Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 5.9 26.3 16 71.1 24 106.9 29.4 130.7 0.066 lbs 0.099 kg
4940066 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 3.9 17.3 9.3 41.2 14.8 65.8 19.5 86.6 0.065 lbs 0.097 kg
L04I85AR Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.065 lbs 0.096 kg
L04G89AR Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 3.8 16.8 14.3 63.5 53.9 239.9 88.7 394.8 0.065 lbs 0.096 kg
4940075 Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
4940071 Eagle Beige 95 A/13 Cogged 1/2 x 5/16" 13 x 8mm 2.78" 71mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
5260200 Eagle Hyfen 95 A 1/2 x 3/8" --- 3.75" 95mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5220000 Eagle Hyfen 95 A Cogged 1/2 x 3/8" --- 2.75" 70mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5299007 Eagle Hyfen 85 A Ridge-Top 1/2 x 9/16" --- 6.19" 157mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.1 lbs 0.148 kg
5299019 Eagle Hyfen 85 A Twin 1-3/16 x 5/16" --- 3.44" 87mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.151 lbs 0.224 kg
5260520 Eagle Hyfen 85 CXF A 0.50 x 0.51" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.103 lbs 0.153 kg
5260520 Eagle Hyfen 85 CXR A 1.19 x 0.41" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.088 lbs 0.131 kg
5260572 Eagle Hyfen 85 CXF A Twin 0.50 x 0.51" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.203 lbs 0.302 kg
5260577 Eagle Hyfen 85 CXR A Twin 1.19 x 0.41" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.174 lbs 0.259 kg
493060030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.085 lbs 0.127 kg
L04I85ARSG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.095 lbs 0.142 kg
493150030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.084 lbs 0.124 kg
