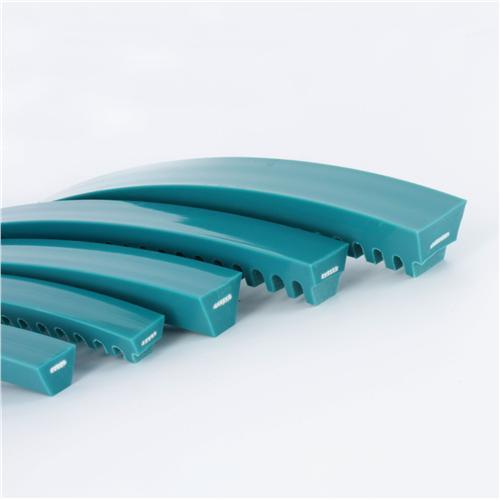

5260200 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section A | 1/2" w x 3/8" h, | Reinforced | Green, Blue | 100ft
Fenner Drives

5260200 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section A | 1/2" w x 3/8" h, | Reinforced | Green, Blue | 100ft

Sale price$1,409.59
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 95 Series
Overview:
  • Eagle Hyfen 95 Reinforced Belting is the ideal high-strength, low-stretch choice with a 95 Shore A durometer and a polyester reinforcing tensile member. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Hyfen 95 Reinforced Belts are made of an 95 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 95 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 95 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member!

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 95 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 95 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee, Vee Cogged Profile Size: A/13, B/17, C/22
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP80AR Eagle Opaque 80 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 5.9 26.3 16 71.1 24 106.9 29.4 130.7 0.066 lbs 0.099 kg
4940066 Eagle Orange 85 A/13 1/2 x 5/16" 13 x 8mm 3.13" 80mm 3.9 17.3 9.3 41.2 14.8 65.8 19.5 86.6 0.065 lbs 0.097 kg
L04I85AR Eagle Ivory 85 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.065 lbs 0.096 kg
L04G89AR Eagle Green 89 A/13 1/2 x 5/16" 13 x 8mm 3.15" 80mm 3.8 16.8 14.3 63.5 53.9 239.9 88.7 394.8 0.065 lbs 0.096 kg
4940075 Eagle Beige 95 A/13 1/2 x 5/16" 13 x 8mm 3.78" 96mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
4940071 Eagle Beige 95 A/13 Cogged 1/2 x 5/16" 13 x 8mm 2.78" 71mm 20.9 93 48.8 217.1 71.6 318.4 88.1 391.7 0.067 lbs 0.099 kg
5260200 Eagle Hyfen 95 A 1/2 x 3/8" --- 3.75" 95mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5220000 Eagle Hyfen 95 A Cogged 1/2 x 3/8" --- 2.75" 70mm 18.3 81.3 26.6 118.2 34.1 151.8 41.3 183.6 0.077 lbs 0.114 kg
5299007 Eagle Hyfen 85 A Ridge-Top 1/2 x 9/16" --- 6.19" 157mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.1 lbs 0.148 kg
5299019 Eagle Hyfen 85 A Twin 1-3/16 x 5/16" --- 3.44" 87mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.151 lbs 0.224 kg
5260520 Eagle Hyfen 85 CXF A 0.50 x 0.51" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.103 lbs 0.153 kg
5260520 Eagle Hyfen 85 CXR A 1.19 x 0.41" --- 4.53" 115mm 17.4 77.4 25.1 111.5 33.8 150.2 42.8 190.2 0.088 lbs 0.131 kg
5260572 Eagle Hyfen 85 CXF A Twin 0.50 x 0.51" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.203 lbs 0.302 kg
5260577 Eagle Hyfen 85 CXR A Twin 1.19 x 0.41" --- 4.53" 115mm 45.5 202.2 34.4 153.2 44.9 199.9 54.9 244.2 0.174 lbs 0.259 kg
493060030M Eagle Ivory 85 SGT PU A/13 0.50 x 0.47" 13 x 12.06mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.085 lbs 0.127 kg
L04I85ARSG Eagle Ivory 85 SGT PVC A/13 0.50 x 0.53" 13 x 13.51mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.095 lbs 0.142 kg
493150030M Eagle Ivory 85 SGT TPE A/13 0.50 x 0.48" 13 x 12.34mm 4.11" 104mm 4.9 21.9 14.8 66 23.6 105.1 30.1 134.1 0.084 lbs 0.124 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
