0470833 Fenner Drives Tango Link V Belting - Cross Section: B - 10m - Beltsmart
Fenner Drives

0470833 by Fenner Drives | Tango Link V Belting | Cross Section: B | 10m

Sale price$787.06
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 10 M

Product Data:

Brand:
  • T-Link
Overview:

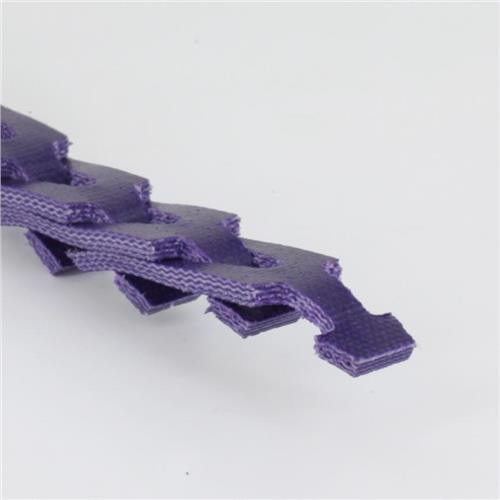

  • B/17 Tango Conveyor Belting offers many benefits over traditional polyurethane belting: No Welding; Easy, Fast Installation; Longer Belt Life; and Resistance to Harsh Environments.
Description:
  • Best Suited For: Conveying applications designed to use classical B/17 section polyurethane belts.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

  • Easy, Fast Installation with No Welding Required
  • Make to length by hand, without tools
  • No curing time, just twist and go!


  • Longer Belt Life
  • Extremely high strength and excellent performance in harsh environments


    • Simple Inventory Management

  • Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: B/17/5L
Reinforcement: None Color: Purple
Compliancy: RoHS Durometer: N/A
Material: N/A Package Length: 10m

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470825 Tango Belting? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0470833 Tango Belting? 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0435101 PowerTwist® SuperGrip Top PU 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0409200 PowerTwist® Super Grip Top PVC 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0405082 PowerTwist® Friction Top® 25ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0408082 PowerTwist® Friction Top® 100ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0499021 PowerTwist® Bridge Top? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0499002 PowerTwist® Bridge Top? 10ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0410300-25 PowerTwist® Roller Drive? 25ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0410300 PowerTwist® Roller Drive? 100ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411301 PowerTwist® Roller Drive? 10m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411300 PowerTwist® Roller Drive? 30m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0408605 PowerTwist Plus® Antistatic 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408601 PowerTwist Plus® Antistatic 100ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
040860010 PowerTwist Plus® Antistatic 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408600 PowerTwist Plus® Antistatic 30m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
