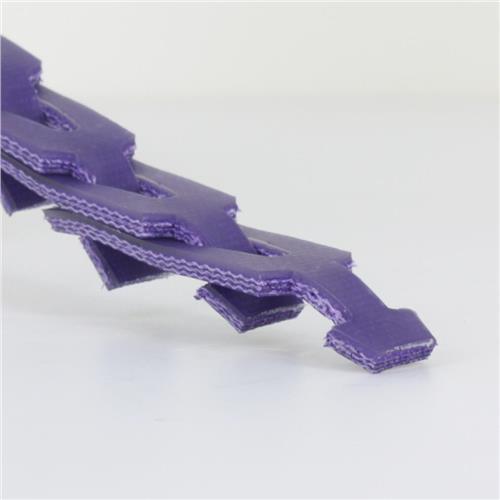

0408082 Fenner Drives PowerTwist Friction Top Link V Belting - Cross Section: B - 100ft - Beltsmart
Fenner Drives

0408082 by Fenner Drives | PowerTwist Friction Top Link V Belting | Cross Section: B | 100ft

Sale price$3,985.06
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 100 FT

Product Data:

Brand:
  • PowerTwist
Overview:
  • With a top layer of 85A polyurethane engineered into each link, B/17 section Tango Friction Top offers a high coefficient of friction in conveying applications. Packaged in 100' lengths.
Description:
  • Best Suited For: Conveying applications where more grip is needed on the top surface than standard Tango, but the grip of a Tango SGT (Super Grip Top) is not required.

    Tango Friction Top offers a higher coefficient of friction because of the top layer of 85A polyurethane that is engineered into each link. This extremely durable polyurethane surface is fused with the rest of the belt and will never delaminate.

  • 85A polyurethane composite polyester/polyurethane material
  • Top surface cannot delaminate
    • Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

    Easy, Fast Installation with No Welding Required

  • Make to length by hand, without tools
  • No curing time, just twist and go!


    • Longer Belt Life

  • Extremely high strength and excellent performance in harsh environments


    • Simple Inventory Management

  • Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: B/17/5L
Reinforcement: None Color: Purple
Compliancy: RoHS Material: Composite Polyester/Polyurethane
Special Feature: 85A Polyurethane top surface Package Length: 100ft

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470825 Tango Belting? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0470833 Tango Belting? 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0435101 PowerTwist® SuperGrip Top PU 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0409200 PowerTwist® Super Grip Top PVC 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0405082 PowerTwist® Friction Top® 25ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0408082 PowerTwist® Friction Top® 100ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0499021 PowerTwist® Bridge Top? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0499002 PowerTwist® Bridge Top? 10ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0410300-25 PowerTwist® Roller Drive? 25ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0410300 PowerTwist® Roller Drive? 100ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411301 PowerTwist® Roller Drive? 10m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411300 PowerTwist® Roller Drive? 30m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0408605 PowerTwist Plus® Antistatic 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408601 PowerTwist Plus® Antistatic 100ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
040860010 PowerTwist Plus® Antistatic 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408600 PowerTwist Plus® Antistatic 30m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
