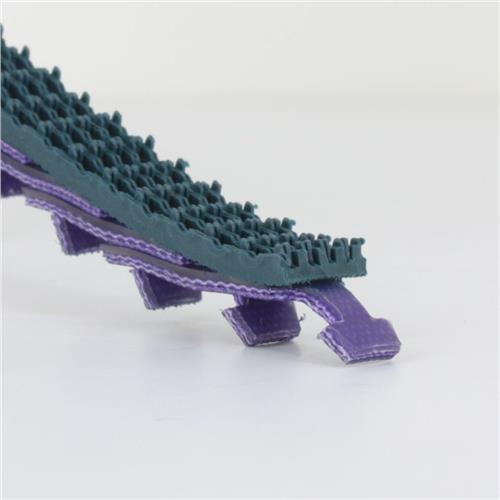

0409200 Fenner Drives PowerTwist SuperGrip Top PVC Link V Belting - Cross Section: B - 100ft - Beltsmart
Fenner Drives

0409200 by Fenner Drives | PowerTwist SuperGrip Top PVC Link V Belting | Cross Section: B | 100ft

Sale price$2,889.78
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 100 FT

Product Data:

Brand:
  • PowerTwist
Overview:
  • Tango SuperGrip Top PVC incorporates an ultra-high grip, extremely pliable top layer. Its soft PVC compound surface provides superior traction and belt life in tough applications. Packaged in 100' lengths.
Description:
  • Best Suited For: Conveying in slippery environments, up steep inclines or moving easily damaged products.

    If ultra-high grip and an extremely pliable top are what your application demands, Tango SuperGrip Top PVC is your solution. This compliant top surface is attached with a proprietary "adhesive free" bonding technology that will not delaminate.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

    Easy, Fast Installation with No Welding Required

  • Make to length by hand, without tools
  • No curing time, just twist and go!


    • Longer Belt Life

  • Extremely high strength and excellent performance in harsh environments


    • Simple Inventory Management

  • Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: B/17/5L
Reinforcement: None Color: Green, Purple
Compliancy: RoHS Material: Composite Polyester/Polyurethane
Special Feature: PVC top surface Package Length: 100ft

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470825 Tango Belting? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0470833 Tango Belting? 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0435101 PowerTwist® SuperGrip Top PU 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0409200 PowerTwist® Super Grip Top PVC 100ft B 5.5" 140mm 400 lbs 181 kg 135 lbs 61 kg
0405082 PowerTwist® Friction Top® 25ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0408082 PowerTwist® Friction Top® 100ft B 5.0" 127mm 400 lbs 181 kg 135 lbs 61 kg
0499021 PowerTwist® Bridge Top? 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0499002 PowerTwist® Bridge Top? 10ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0410300-25 PowerTwist® Roller Drive? 25ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0410300 PowerTwist® Roller Drive? 100ft B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411301 PowerTwist® Roller Drive? 10m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0411300 PowerTwist® Roller Drive? 30m B 5.0" 127mm 275 lbs 125 kg 95 lbs 43 kg
0408605 PowerTwist Plus® Antistatic 25ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408601 PowerTwist Plus® Antistatic 100ft B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
040860010 PowerTwist Plus® Antistatic 10m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg
0408600 PowerTwist Plus® Antistatic 30m B 5.5" 140mm 612 lbs 278 kg 204 lbs 93 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
