0409100 Fenner Drives PowerTwist SuperGrip Top PVC Link V Belting - Cross Section: A - 100ft - Beltsmart
Fenner Drives

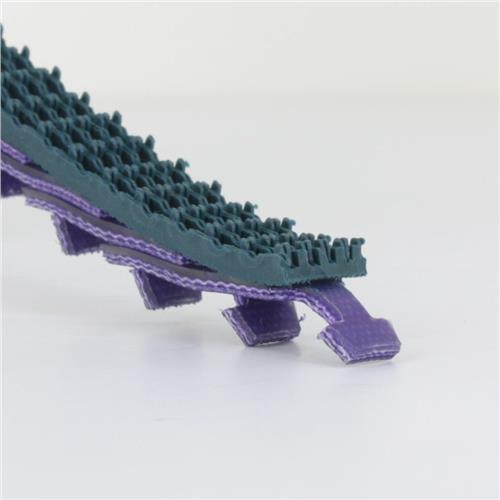

0409100 by Fenner Drives | PowerTwist SuperGrip Top PVC Link V Belting | Cross Section: A | 100ft

Sale price$2,588.32
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 100 FT

Product Data:

Brand:
  • PowerTwist
Overview:
  • Tango SuperGrip Top PVC incorporates an ultra-high grip, extremely pliable top layer. Its soft PVC compound surface provides superior traction and belt life in tough applications. Packaged in 100' lengths.
Description:
  • Best Suited For: Conveying in slippery environments, up steep inclines or moving easily damaged products.

    If ultra-high grip and an extremely pliable top are what your application demands, Tango SuperGrip Top PVC is your solution. This compliant top surface is attached with a proprietary "adhesive free" bonding technology that will not delaminate.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

  • Easy, Fast Installation with No Welding Required
  • Make to length by hand, without tools
  • No curing time, just twist and go!
  • Longer Belt Life - Extremely high strength and excellent performance in harsh environments
  • Simple Inventory Management - Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: A/13/4L
Reinforcement: None Color: Purple
Compliancy: RoHS Durometer: N/A
Material: Polyester/Polyurethane Minimum Pulley Diameter: 3.00", 80mm
Special Feature: PVC top surface Package Length: 1/2", 13mm

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470725 Tango Belting 25ft A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0470733 Tango Belting 10m A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0430101 PowerTwist® SuperGrip Top PU 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0409100 PowerTwist® SuperGrip Top PVC 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 20ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 100ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0499022 PowerTwist® Bridge Top? 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0499020 PowerTwist® Bridge Top? 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408505 PowerTwist Plus® Antistatic 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408501 PowerTwist Plus® Antistatic 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
040850010 PowerTwist Plus® Antistatic 10m A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408500 PowerTwist Plus® Antistatic 30m A 3.0" 76mm 340lbs 154kg 115bs 52kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
