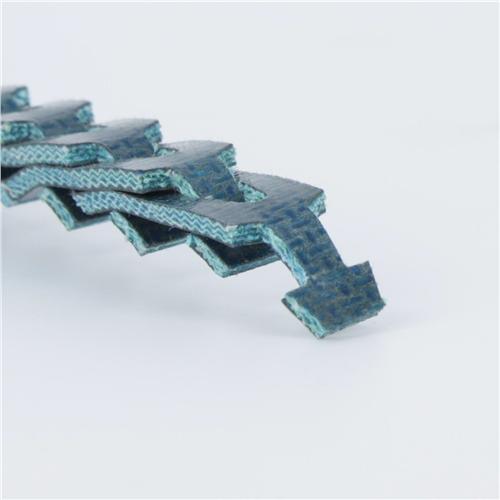

040850010 Fenner Drives PowerTwist Plus Antistatic Link V Belting - Cross Section: A - 10m - Beltsmart
Fenner Drives

040850010 by Fenner Drives | PowerTwist Plus Antistatic Link V Belting | Cross Section: A | 10m

Sale price$801.97
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 10 M

Product Data:

Brand:
  • PowerTwist
Overview:
  • A/13/4L section PowerTwist Plus Antistatic V Belts are the permanent upgrade for traditional rubber V belts and transmits high power while exhibiting low stretch. Also combines fast and easy installation with the best antistatic properties of any V belt on the market. ISO 1813:1998 certified
Description:
  • Best Suited For: Any power transmission application designed to use a classical A/13/4L section antistatic rubber V belt, such as fuel transfer pumps. Also ideal for conveying applications that frequently have issues with static electricity, such as glass and solar cell manufacturing.

    Have an application where static electricity is getting you all charged up? Fenner Drives' patented PowerTwist Plus Antistatic is the answer... with all the benefits of standard PowerTwist Plus along with the best antistatic properties of any V belt on the market, easily passing the ISO 1813:1998 standard. While the standard allows the resistance of the drive belt to be as high as 3.6 mega ohms (3,600,000 ohms), PowerTwist Plus Antistatic typically registers well below 50 ohms, while even the best so called antistatic (static conductive) rubber belts usually measure between a shocking 10,000-200,000 ohms. Unlike antistatic rubber V-belts whose antistatic properties may be adversely affected by humidity levels, environmental conditions and wear, PowerTwist Plus Antistatic's proprietary construction allows the belt's antistatic properties to perform in the harshest conditions. PowerTwist Plus Antistatic is a drop-in replacement for classical section V belts.

  • 100% ISO 1813:1998 inspected and certified by Fenner Drives
  • Ultralow resistance antistatic V belt


  • Antistatic properties unaffected by humidity levels
  • Electric Blue color for easy identification
  • US Patents 7,621,114 and 7,950,213


    • PowerTwist Plus Antistatic can't be outperformed! PowerTwist Plus Antistatic sets the standard for link V belt longevity and durability. Other brands don't come close. The combination of high strength and low elongation under load simply cannot be beaten. Because they're made of a custom-designed, high-tech polyurethane/polyester composite, PowerTwist Plus Antistatic V-belts won't fail you when others may. The result? Less downtime. Higher productivity. Reduced maintenance costs.

  • Antistatic industrial workhorse
  • Minimized maintenance time
  • High performance polyester/polyurethane composite technology with the same horsepower ratings as conventional rubber V belts
  • Easy to inventory
  • Offer problem solving alternatives to V-belts of classical cross-sections
  • Drop-in permanent upgrade for conventional endless rubber V belts
  • RoHS 2002/95/EC Directive compliant.
    • The right belt at the right time! Instead of trying to carry all the endless V belt sizes you might need, with PowerTwist Plus Antistatic, you only need to stock the most common cross sections - A/13/4L and B/17/5L and you'll have almost 100%, on-site availability guaranteed. With PowerTwist Plus Antistatic you will reduce the inventory dollars that you have tied up in replacement V belts and still have instant availability.

  • Perfectly suited to A/13/4L, and B/17/5L drives
  • Reduced inventory... any belt, any time!


    • No tools required. No matter what equipment you are operating, productivity is critical. PowerTwist Plus Antistatic V Belts minimize downtime with no tools required and has easy installation in minutes without machine tear-downs or struggling with rusted-down motor bases.

    PowerTwist Plus Antistatic V Belts have the same cross section dimensions as conventional endless V belts and can be installed on existing pulleys with no changes in set-up.

    Single or matched V belt sets can be made with a flick of the wrist! PowerTwist Plus Antistatic V Belts can be made up to required length by hand in seconds and rolled onto the drive just like a bicycle chain. Their custom multi-ply composite construction prevents roll-on damage. If conventional rubber V belts are installed this way, almost certainly some of the load-bearing tension cords will be broken, leading to significantly reduced belt life.

  • Easier, faster installation
  • Easily installed without dismantling drive components
  • Make any length by hand in seconds without any tools
  • Simplified drive design
    • Tame hostile environments If your V belt drives are operating in hostile, nasty environments, you've got to take advantage of the high performance properties of polyurethanes. That's why we use a high performance polyurethane elastomer reinforced with multiple plies of polyester fabric for PowerTwist Plus Antistatic. This custom material provides PowerTwist Plus Antistatic with significantly superior resistance to oils, grease, water, and the most common industrial/agricultural chemicals and solvents. Plus an operating temperature range, with no loss of performance, of -40 deg F to +240 deg F. Conventional SBR/chloroprene brand V-belts simply can't compete.

    If your drive environment is like hell's kitchen and conventional V-belt life is down to a few months, PowerTwist Plus Antistatic may be your long term answer.

  • Longer belt life in harsh operating conditions
  • Unaffected by extreme temperatures, water, steam, oil, grease, and common industrial chemicals and solvents


    • Reduce transmitted vibration. All conventional V-belts with a continuous tensile cord will transmit vibrations from the motor to driveN components; these vibrations cause system noise and can significantly shorten bearing life. The segmented twist-lock design of PowerTwist Plus Antistatic acts as a vibration dampener - vibration can enter a link but cannot be transmitted as there is no continuous tension cord present. Save your bearings - fit PowerTwist Plus Antistatic V Belts!

  • unique belt construction dampens transmitted motor vibrations, extending the bearing life and reducing noise levels
  • high resistance to abrasion and shock loads
    • RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13/4L
Reinforcement: None Color: Blue
Compliancy: RoHS Durometer: N/A
Material: Polyester/Polyurethane Minimum Pulley Diameter: 3.00", 80mm Special Feature: Antistatic properties Package Length: 1/2", 13mm

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470725 Tango Belting 25ft A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0470733 Tango Belting 10m A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0430101 PowerTwist® SuperGrip Top PU 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0409100 PowerTwist® SuperGrip Top PVC 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 20ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 100ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0499022 PowerTwist® Bridge Top? 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0499020 PowerTwist® Bridge Top? 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408505 PowerTwist Plus® Antistatic 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408501 PowerTwist Plus® Antistatic 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
040850010 PowerTwist Plus® Antistatic 10m A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408500 PowerTwist Plus® Antistatic 30m A 3.0" 76mm 340lbs 154kg 115bs 52kg
