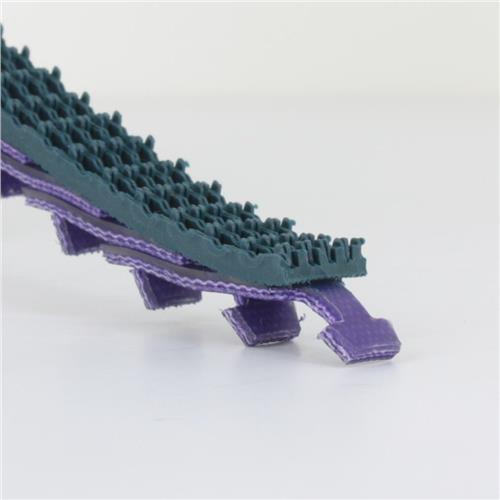

0405081 Fenner Drives PowerTwist Friction Top Link V Belting - Cross Section: A - 25ft - Beltsmart
Fenner Drives

0405081 by Fenner Drives | PowerTwist Friction Top Link V Belting | Cross Section: A | 25ft

Sale price$887.03
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 25 FT

Product Data:

Brand:
  • PowerTwist
Overview:
  • Tango SuperGrip Top PVC incorporates an ultra-high grip, extremely pliable top layer. Its soft PVC compound surface provides superior traction and belt life in tough applications. Packaged in 100' lengths.
Description:
  • Best Suited For: Conveying in slippery environments, up steep inclines or moving easily damaged products.

    If ultra-high grip and an extremely pliable top are what your application demands, Tango SuperGrip Top PVC is your solution. This compliant top surface is attached with a proprietary "adhesive free" bonding technology that will not delaminate.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

  • Easy, Fast Installation with No Welding Required
  • Make to length by hand, without tools
  • No curing time, just twist and go!
  • Longer Belt Life - Extremely high strength and excellent performance in harsh environments
  • Simple Inventory Management - Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: A/13/4L
Reinforcement: None Color: Green, Purple
Compliancy: RoHS Durometer: N/A
Material: Composite Polyester/Polyurethane Minimum Pulley Diameter: 3.00", 80mm
Special Feature: PVC top surface Package Length: 1/2", 13mm

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470725 Tango Belting 25ft A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0470733 Tango Belting 10m A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0430101 PowerTwist® SuperGrip Top PU 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0409100 PowerTwist® SuperGrip Top PVC 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 20ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 100ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0499022 PowerTwist® Bridge Top? 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0499020 PowerTwist® Bridge Top? 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408505 PowerTwist Plus® Antistatic 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408501 PowerTwist Plus® Antistatic 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
040850010 PowerTwist Plus® Antistatic 10m A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408500 PowerTwist Plus® Antistatic 30m A 3.0" 76mm 340lbs 154kg 115bs 52kg
