0430101 Fenner Drives PowerTwist SuperGrip Top PU Link V Belting - Cross Section: A - 100ft - Beltsmart
Fenner Drives

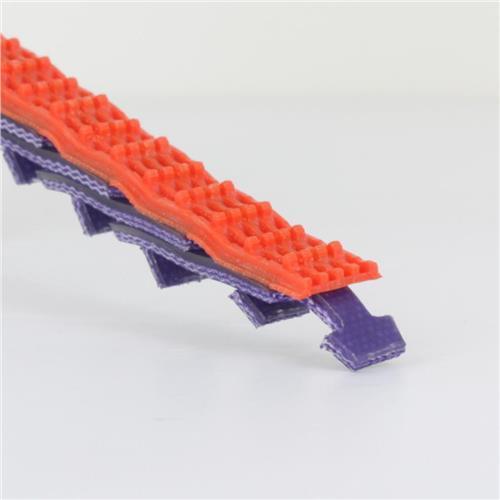

0430101 by Fenner Drives | PowerTwist SuperGrip Top PU Link V Belting | Cross Section: A | 100ft

Sale price$2,846.80
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 100 FT

Product Data:

Brand:
  • PowerTwist
Overview:
  • With a top layer of 85A polyurethane engineered into each link, A/13 section Tango Friction Top offers a high coefficient of friction in conveying applications. Packaged in 100' lengths.
Description:
  • Best Suited For: Conveying applications where more grip is needed on the top surface than standard Tango, but the grip of a Tango SGT (Super Grip Top) is not required.

    Tango Friction Top offers a higher coefficient of friction because of the top layer of 85A polyurethane that is engineered into each link. This extremely durable polyurethane surface is fused with the rest of the belt and will never delaminate.

  • 85A polyurethane composite polyester/polyurethane material
  • Top surface cannot delaminate


  • Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:
  • Easy, Fast Installation with No Welding Required
  • Make to length by hand, without tools
  • No curing time, just twist and go!
  • Longer Belt Life - Extremely high strength and excellent performance in harsh environments
  • Simple Inventory Management - Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: A/13/4L
Reinforcement: None Color: Purple
Compliancy: RoHS Durometer: N/A
Material: Composite Polyester/Polyurethane Minimum Pulley Diameter: 3.00", 80mm Special Feature: 85A Polyurethane top surface Package Length: 1/2", 13mm

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470725 Tango Belting 25ft A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0470733 Tango Belting 10m A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0430101 PowerTwist® SuperGrip Top PU 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0409100 PowerTwist® SuperGrip Top PVC 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 20ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 100ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0499022 PowerTwist® Bridge Top? 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0499020 PowerTwist® Bridge Top? 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408505 PowerTwist Plus® Antistatic 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408501 PowerTwist Plus® Antistatic 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
040850010 PowerTwist Plus® Antistatic 10m A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408500 PowerTwist Plus® Antistatic 30m A 3.0" 76mm 340lbs 154kg 115bs 52kg
