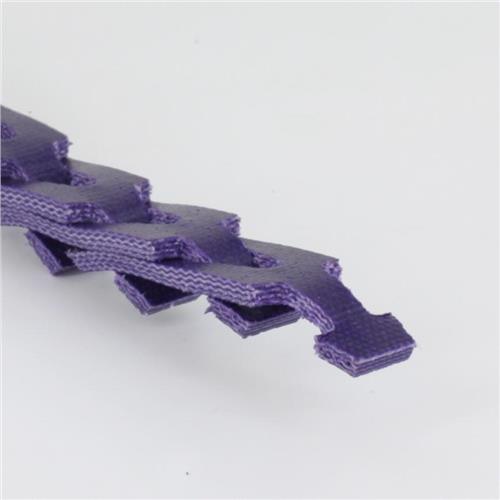

0470733 Fenner Drives Tango Link V Belting - Cross Section: A - 10m - Beltsmart

0470733 by Fenner Drives | Tango Link V Belting | Cross Section: A | 10m

Sale price$546.10
Fenner Drives - V Belting Conveying - Link V Belting

Package Quantity: 10 M

Buy More, Save More!
Quantity Price Each
5–14 $513.33
15–29 $464.19
30+ $409.58
Discounts applied in cart/checkout.

Product Data:

Brand:
  • T-Link
Overview:
  • A/13 Tango Conveyor Belting offers many benefits over traditional polyurethane belting: No Welding; Easy, Fast Installation; Longer Belt Life; and Resistance to Harsh Environments.
Description:
  • Best Suited For: Conveying applications designed to use classical A/13 section polyurethane belts.

    Take advantage of the added-value benefits of Tango High Performance Conveyor Belting:

    Easy, Fast Installation with No Welding Required

  • Make to length by hand, without tools
  • No curing time, just twist and go!
  • Longer Belt Life
  • Extremely high strength and excellent performance in harsh environments
  • Simple Inventory Management - Less money tied up in spare belting and no belt waste


    • From standard conveying to applications requiring abrasion resistance, non-marking, high temperature, oil and chemical resistance, you name it- simply Twist and Go with Tango Belting for all of your conveying needs.

    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: V Profile Size: A/13/4L
Reinforcement: None Color: Purple
Compliancy: RoHS Durometer: N/A
Material: Composite Polyester/Polyurethane Minimum Pulley Diameter: 3.00", 76mm
Package Length: 25' or 10m

Part Number Material & Color Length Cross Section Minimum Pulley Ø Max Product Weight
w/Idlers		 Max Product Weight
w/UHMW
(in) (mm) (lbs) (kg) (lbs) (kg)
0470725 Tango Belting 25ft A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0470733 Tango Belting 10m A 3.0" 76mm 340lbs 154kg 115lbs 52kg
0430101 PowerTwist® SuperGrip Top PU 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0409100 PowerTwist® SuperGrip Top PVC 100ft A 3.0" 76mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 20ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0405081 PowerTwist® Friction Top® 100ft A 2.5" 64mm 200lbs 91kg 65lbs 30kg
0499022 PowerTwist® Bridge Top? 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0499020 PowerTwist® Bridge Top? 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408505 PowerTwist Plus® Antistatic 25ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408501 PowerTwist Plus® Antistatic 100ft A 3.0" 76mm 340lbs 154kg 115bs 52kg
040850010 PowerTwist Plus® Antistatic 10m A 3.0" 76mm 340lbs 154kg 115bs 52kg
0408500 PowerTwist Plus® Antistatic 30m A 3.0" 76mm 340lbs 154kg 115bs 52kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
