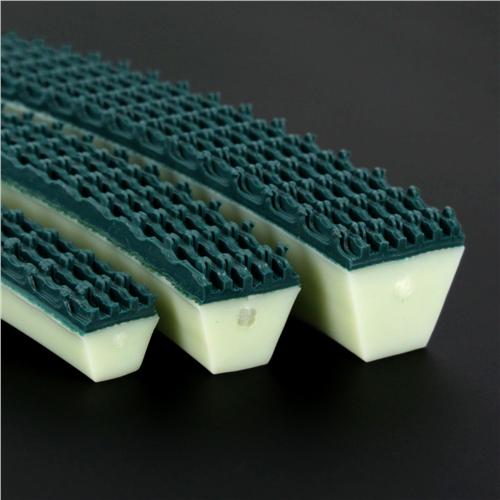

L04I85CRSG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section C/22 | 0.88" w x 0.78" h | Reinforced | Ivory | 100ft
Fenner Drives

L04I85CRSG by Fenner Drives | Eagle 85 SGT PVC V Belting | Cross Section C/22 | 0.88" w x 0.78" h | Reinforced | Ivory | 100ft

Sale price$2,872.97
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:
  • Eagle Ivory 85 Reinforced SGT PVC is constructed of polyester cord reinforcement with an 85 A durometer polyurethane base belt and an extremely compliant SGT (SuperGrip Top) PVC top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Reinforced SGT PVC Vee Belts are your answer. Our PVC 50A SuperGrip Top surface is soft and tacky enough that it won't damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern.

    Best Suited For: Conveying applications that require a strong, low stretch vee belt combined with a super grip surface. Perfect for applications where conveying in slippery environments, up steep inclines or where moving easily damaged products is more important than abrasion resistance.

  • 85A polyurethane base durometer
  • 50A PVC top surface
  • Integrally bonded tops cannot delaminate
  • Polyester reinforcing tensile member for extra strength
  • RoHS 2002/95/EC Directive Compliant


    • Eagle Ivory 85 Reinforced SGT PVC Vee Belts are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

    Eagle Ivory 85 Reinforced SGT PVC Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Ivory 85 Reinforced SGT PVC Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Green, Ivory
Compliancy: RoHS Durometer: 50A, 85A
Material: Polyurethane, Polyurethane Top Surface Special Feature: Polyurethane Grip Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5260400 Eagle Hyfen 95 C 7/8 x 5/8" --- 6.25" 159mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
5240000 Eagle Hyfen 95 C Cogged 7/8 x 5/8" --- 5.25" 133mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
4940068 Eagle Orange 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.62" 145mm 11.7 52 27.8 123.7 44.4 197.4 58.4 260 0.196 lbs 0.291 kg
L04I85CR Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.71" 145mm 14.8 65.7 44.6 198.3 71 315.7 90.5 402.7 0.194 lbs 0.289 kg
L04G89CR Eagle Green 89 C/22 --- 22 x 14.5mm 5.71" 145mm 11.5 51.3 43.6 193.9 164.6 732.4 270.9 1205.1 0.197 lbs 0.293 kg
4940077 Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
4940073 Eagle Beige 95 C/22 Cogged 7/8 x 9/16" 22 x 14.5mm 5.85" 149mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
5299103 Eagle Ivory 85 C/22 Ridge-Top --- 22 x 24.5 9.65 245mm 21.7 96.6 65.6 291.7 104.4 464.3 133.2 592.4 0.285 lbs 0.424 kg
L04I85CRXH Eagle Ivory 85 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 24.4 108.5 73.7 327.7 117.3 521.6 149.6 665.4 0.32 lbs 0.477 kg
4999524 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
L04G89CRXH Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
5260540 Eagle Green 89 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 18.7 83.4 70.8 315.1 267.5 1189.8 440.1 1957.8 0.32 lbs 0.477 kg
5260545 Eagle Hyfen 85 CXR C 0.88 x 0.63" --- 7.7" 196mm 38 169.1 54.7 243.4 73.7 327.9 93.4 415.4 0.215 lbs 0.32 kg
493070030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.227 lbs 0.338 kg
L04I85CRSG Eagle Ivory 85 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.245 lbs 0.365 kg
493170030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.224 lbs 0.334 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
