5260545 by Fenner Drives | Eagle Hyfen 85 CXR V Belting | Cross Section C | 0.88" w x 0.63" h | Reinforced | Blue, Green, Orange | 100ft
Fenner Drives

5260545 by Fenner Drives | Eagle Hyfen 85 CXR V Belting | Cross Section C | 0.88" w x 0.63" h | Reinforced | Blue, Green, Orange | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:

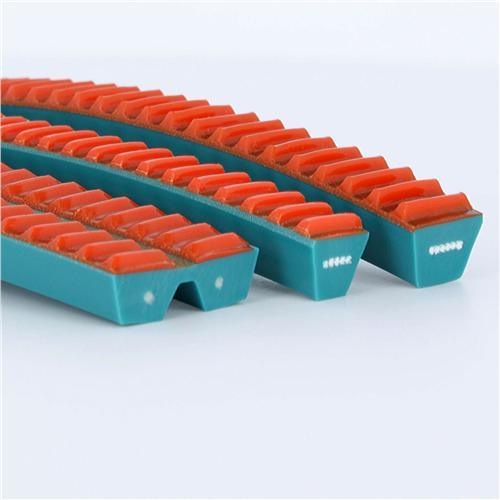

  • Eagle Hyfen 85 Reinforced CXR Vee Belting is a co-extruded belt constructed of a polyester reinforced 85 A durometer polyurethane base belt and a softer, higher CoF (coefficient of friction) ribbed 60 A durometer polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives unique dual durometer belts offer strength and load carrying capabilities with the added bonus of the ultra-grip tops. The combination of a tough 85A durometer base and an ultra-grip co-extruded ribbed 60A top surface gives you the strength and grip that your demanding application needs! In addition to the already reliant durability of this belt, there is also a polyester reinforcing tensile member to increase the strength of the belt.

    Best Suited For: Conveying applications that require an extremely strong, low stretch vee belt combined with a high traction surface. Perfectly suited for carrying heavy loads up an inclined conveyor.

  • 85A polyurethane base durometer
  • 60A co-extruded unltra-grip top surface
  • Strength and load carrying capabilities
  • Polyester reinforcing tensile membert
  • RoHS 2002/95/EC Directive Compliant


    • This CXR belt has a ribbed top surface providing you with a superior grip, as opposed to our CXF belts that have a flat top surface. Our integrally bonded tops cannot delaminate leaving you worry and stress free! Fenner Drives Eagle Co-Extruded belting easily outperforms all adhesively bonded special surface belts!

    Eagle Hyfen 85 Reinforced CXR Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Eagle Hyfen 85 Reinforced CXR Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Twin, Vee Profile Size: A/13, B/17
Reinforcement: Polyester Tape Color: Blue, Green, Orange
Compliancy: RoHS Durometer: 60A, 85A
Material: Polyurethane Special Feature: Smooth Ultra-Grip 60A Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5260400 Eagle Hyfen 95 C 7/8 x 5/8" --- 6.25" 159mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
5240000 Eagle Hyfen 95 C Cogged 7/8 x 5/8" --- 5.25" 133mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
4940068 Eagle Orange 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.62" 145mm 11.7 52 27.8 123.7 44.4 197.4 58.4 260 0.196 lbs 0.291 kg
L04I85CR Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.71" 145mm 14.8 65.7 44.6 198.3 71 315.7 90.5 402.7 0.194 lbs 0.289 kg
L04G89CR Eagle Green 89 C/22 --- 22 x 14.5mm 5.71" 145mm 11.5 51.3 43.6 193.9 164.6 732.4 270.9 1205.1 0.197 lbs 0.293 kg
4940077 Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
4940073 Eagle Beige 95 C/22 Cogged 7/8 x 9/16" 22 x 14.5mm 5.85" 149mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
5299103 Eagle Ivory 85 C/22 Ridge-Top --- 22 x 24.5 9.65 245mm 21.7 96.6 65.6 291.7 104.4 464.3 133.2 592.4 0.285 lbs 0.424 kg
L04I85CRXH Eagle Ivory 85 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 24.4 108.5 73.7 327.7 117.3 521.6 149.6 665.4 0.32 lbs 0.477 kg
4999524 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
L04G89CRXH Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
5260540 Eagle Green 89 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 18.7 83.4 70.8 315.1 267.5 1189.8 440.1 1957.8 0.32 lbs 0.477 kg
5260545 Eagle Hyfen 85 CXR C 0.88 x 0.63" --- 7.7" 196mm 38 169.1 54.7 243.4 73.7 327.9 93.4 415.4 0.215 lbs 0.32 kg
493070030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.227 lbs 0.338 kg
L04I85CRSG Eagle Ivory 85 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.245 lbs 0.365 kg
493170030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.224 lbs 0.334 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
