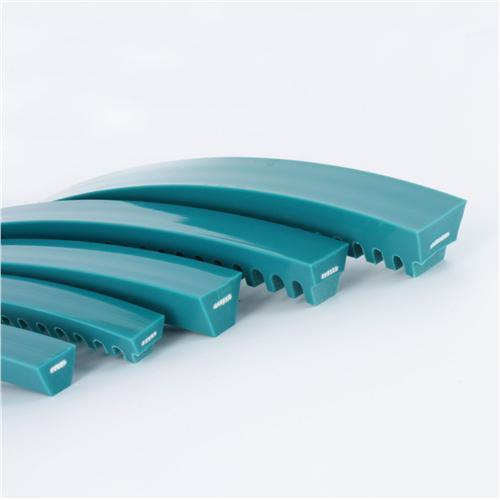

5240000 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section C Cogged | 7/8" w x 5/8" h | Reinforced | Green, Blue | 100ft
Fenner Drives

5240000 by Fenner Drives | Eagle Hyfen 95 V Belting | Cross Section C Cogged | 7/8" w x 5/8" h | Reinforced | Green, Blue | 100ft

Sale price$2,797.61
Fenner Drives - Conveying - V Belting - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 95 Series
Overview:
  • Eagle Hyfen 95 Reinforced Belting is the ideal high-strength, low-stretch choice with a 95 Shore A durometer and a polyester reinforcing tensile member. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Hyfen 95 Reinforced Belts are made of an 95 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 95 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 95 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member!

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 95 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 95 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee, Vee Cogged Profile Size: A/13, B/17, C/22
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
5260400 Eagle Hyfen 95 C 7/8 x 5/8" --- 6.25" 159mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
5240000 Eagle Hyfen 95 C Cogged 7/8 x 5/8" --- 5.25" 133mm 39.8 177.2 57.9 257.6 74.4 330.8 90 400.3 0.226 lbs 0.337 kg
4940068 Eagle Orange 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.62" 145mm 11.7 52 27.8 123.7 44.4 197.4 58.4 260 0.196 lbs 0.291 kg
L04I85CR Eagle Ivory 85 C/22 7/8 x 9/16" 22 x 14.5mm 5.71" 145mm 14.8 65.7 44.6 198.3 71 315.7 90.5 402.7 0.194 lbs 0.289 kg
L04G89CR Eagle Green 89 C/22 --- 22 x 14.5mm 5.71" 145mm 11.5 51.3 43.6 193.9 164.6 732.4 270.9 1205.1 0.197 lbs 0.293 kg
4940077 Eagle Beige 95 C/22 7/8 x 9/16" 22 x 14.5mm 6.85" 174mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
4940073 Eagle Beige 95 C/22 Cogged 7/8 x 9/16" 22 x 14.5mm 5.85" 149mm 63.8 284 149 662.7 218.5 971.9 268.8 1195.9 0.204 lbs 0.303 kg
5299103 Eagle Ivory 85 C/22 Ridge-Top --- 22 x 24.5 9.65 245mm 21.7 96.6 65.6 291.7 104.4 464.3 133.2 592.4 0.285 lbs 0.424 kg
L04I85CRXH Eagle Ivory 85 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 24.4 108.5 73.7 327.7 117.3 521.6 149.6 665.4 0.32 lbs 0.477 kg
4999524 Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
L04G89CRXH Eagle Green 89 C/22 Ridge-Top --- 22 x 24.5mm 9.65" 245mm 16.2 72.3 61.4 273.1 231.8 1031.3 381.5 1697 0.278 lbs 0.413 kg
5260540 Eagle Green 89 C/22 Ridge-Top --- 22 x 28.5mm 11.22" 285mm 18.7 83.4 70.8 315.1 267.5 1189.8 440.1 1957.8 0.32 lbs 0.477 kg
5260545 Eagle Hyfen 85 CXR C 0.88 x 0.63" --- 7.7" 196mm 38 169.1 54.7 243.4 73.7 327.9 93.4 415.4 0.215 lbs 0.32 kg
493070030M Eagle Ivory 85 SGT PU C/22 0.88 x 0.72" 22 x 18.56mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.227 lbs 0.338 kg
L04I85CRSG Eagle Ivory 85 SGT PVC C/22 0.88 x 0.78" 22 x 20.01mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.245 lbs 0.365 kg
493170030M Eagle Ivory 85 SGT TPE C/22 0.88 x 0.73" 22 x 18.84mm 6.61" 168mm 14.8 65.8 44.6 198.3 71 315.7 90.5 402.7 0.224 lbs 0.334 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
