L04G89B by Fenner Drives | Eagle 89 V Belting | Cross Section B/17 | 21/32" w x 7/16" h, 17mm w x 11.5mm h | Non-Reinforced | Green | 100ft
Fenner Drives

L04G89B by Fenner Drives | Eagle 89 V Belting | Cross Section B/17 | 21/32" w x 7/16" h, 17mm w x 11.5mm h | Non-Reinforced | Green | 100ft

Sale price$905.99
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:

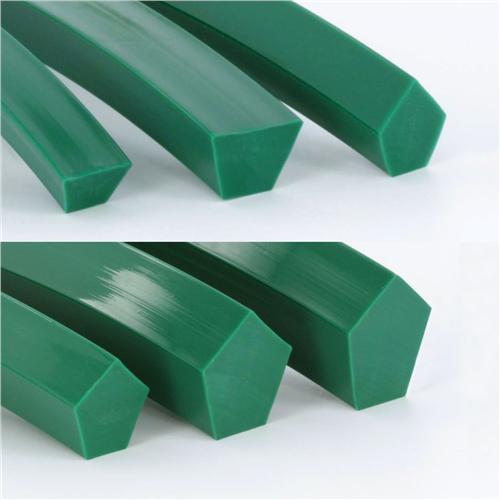

  • Eagle Green 89 Non-Reinforced Vee and Specialty Belting is constructed of solid polyurethane with an 89 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Non-Reinforced Vee and Specialty Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 89 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a vee profile.

  • Solid polyurethane construction
  • 89 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Green 89 Non-Reinforced Vee and Specialty Belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Green Non-Reinforced Vee and Specialty Belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Ridge Top, Vee Profile Size: A/13, B/17, Z/10
Reinforcement: None Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4941109 Eagle Blue 80 MD B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 5 22 8.4 37.3 11.8 52.6 15.1 67 0.113 lbs 0.168 kg
4940010 Eagle Opaque 80 B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 7.4 33.1 15.3 68 24.1 107.2 32.5 144.5 0.121 lbs 0.18 kg
1032047 Eagle Orange 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7 31.1 11.8 52.7 16.6 73.9 21.1 93.7 0.116 lbs 0.172 kg
4912069 Eagle Clear 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7.2 31.9 12.1 54 17 75.8 21.6 96 0.116 lbs 0.172 kg
L04I85B Eagle Ivory 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.62" 92mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.118 lbs 0.175 kg
L04BL85B Eagle Blue 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.25" 92mm 7.3 31 12.4 52.5 17.4 73.7 22 93.4 0.121 lbs 0.18 kg
L04G89B Eagle Green 89 B/17 21/32 x 7/16" 17 x 11.5mm 4.07" 104mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.112 lbs 0.178 kg
4911069 Eagle Clear 95 B/17 11/16 x 13/32" 17.5 x 10mm 4.13" 105mm 13.2 58.6 21.5 95.5 28.9 128.6 35.2 156.8 0.119 lbs 0.177 kg
L04BY40B Eagle White 40D B/17 21/32 x 7/16" 17 x 11mm 5.2" 132mm 27.6 122.6 47.1 209.5 64.9 288.9 80.3 357 0.114 lbs 0.17 kg
4940030 Eagle Red 90 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.12 lbs 0.178 kg
L04BE95B Eagle Beige 95 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 30.4 135.1 45.4 201.9 58.6 260.8 70.2 312.3 0.124 lbs 0.184 kg
1032046 Eagle Orange 85 B/17 Ribbed 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 6.5 28.7 10.9 48.6 15.3 68.3 19.4 86.5 0.107 lbs 0.159 kg
L04G89BX Eagle Green 89 B/17 Ridge-Top --- 17 x 19.5mm 6.91" 176mm 53.7 238.9 82 364.9 107.4 477.7 129.5 576.1 0.174 lbs 0.259 kg
1032048 Eagle Orange 85 B/17 Wing-Top 11/16 x 5/8" --- 5" 127mm 7.8 34.6 13.2 58.7 18.5 82.3 23.5 104.3 0.129 lbs 0.192 kg
1232600 Eagle Orange 85 BB 11/16 x 9/16" --- 4.5" 114mm 10.3 45.8 17.5 77.7 24.5 109 31.1 138.1 0.171 lbs 0.254 kg
4911070 Eagle Clear 95 BB 11/16 x 9/16" --- 5.63" 143mm 19.4 86.5 31.7 140.9 42.6 189.6 52 231.1 0.175 lbs 0.26 kg
4924330 Eagle Red 85 CXF B/17 0.69 x 0.5" 17.5 x 12.54mm 4.28" 109mm 8.1 36.1 12.8 57 17.4 77.5 21.7 96.7 0.15 lbs 0.223 kg
493040030M Eagle Ivory 85 SGT PU B/17 0.66 x 0.60" 17 x 15.56mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.146 lbs 0.218 kg
L04I85BSG Eagle Ivory 85 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.158 lbs 0.235 kg
493130030M Eagle Ivory 85 SGT TPE B/17 0.66 x 0.61" 17 x 15.84mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.39 lbs 0.215 kg
L04G89BSG Eagle Green 89 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.16 lbs 0.238 kg
L04R90BSG Eagle Red 90 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.16 lbs 0.238 kg
L04BY40BSG Eagle White 40D SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 6.96" 177mm 27.6 122.6 47.1 209.51 64.9 288.9 80.3 357 0.154 lbs 0.229 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
