493040030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section B/17 | 0.66" w x 0.60" h, 17mm w x 15.56mm h | Non-Reinforced | Ivory | 100ft
Fenner Drives

493040030M by Fenner Drives | Eagle 85 SGT PU V Belting | Cross Section B/17 | 0.66" w x 0.60" h, 17mm w x 15.56mm h | Non-Reinforced | Ivory | 100ft

Sale price$1,379.04
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

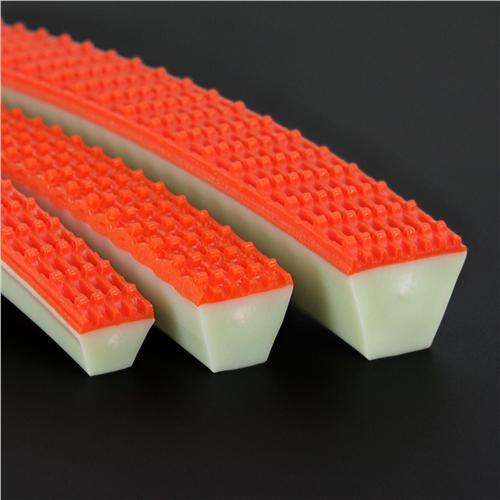

  • Eagle Ivory 85 Reinforced SGT PU is constructed of a polyester cord reinforced 85 A durometer polyurethane base belt made and a high-grip, low-wear SGT (SuperGrip Top) polyurethane top surface. Packaged in 100'/30.5m lengths.
Description:
  • Look no further! We have the grip you are seeking! Fenner Drives Eagle 85 Reinforced SGT PU Vee belts are the toughest and most durable SuperGrip Top in our product line. Harder and less pliable than our other offering, this relatively soft polyurethane compound provides superior traction for tough applications. This belt combines a 70A polyurethane SuperGrip Top surface for superior abrasion resistance with a durable 85A base durometer and a polyester reinforcing tensile member for maximum strength!

    Best Suited For: Conveying applications that require a strong, low stretch vee belt combined with a super grip surface. Perfect for conveying in the most abrasive environments such as moving concrete blocks, bricks, and tiles of all types.

  • 70A polyurethane SuperGrip Top for superior abrasion resistance
  • 85A polyurethane base durometer
  • Integrally bonded tops cannot delaminate
  • Polyester reinforcing tensile member
  • RoHS 2002/95/EC Directive Compliant


    • Eagle Ivory 85 Reinforced SGT PU Belting wears up to 3x longer than our PVC SuperGrip Top and is ideal for inclines and declines in the ceramic and roof tile sectors!

    Eagle Ivory 85 Reinforced SGT PU Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Ivory 85 Reinforced SGT PU Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, C/22
Reinforcement: Single Polyester Cord Color: Ivory, Orange
Compliancy: RoHS Durometer: 70A, 85A
Material: Polyurethane, Polyurethane Top Surface Special Feature: Polyurethane Gip Top Surface
Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4941109 Eagle Blue 80 MD B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 5 22 8.4 37.3 11.8 52.6 15.1 67 0.113 lbs 0.168 kg
4940010 Eagle Opaque 80 B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 7.4 33.1 15.3 68 24.1 107.2 32.5 144.5 0.121 lbs 0.18 kg
1032047 Eagle Orange 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7 31.1 11.8 52.7 16.6 73.9 21.1 93.7 0.116 lbs 0.172 kg
4912069 Eagle Clear 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7.2 31.9 12.1 54 17 75.8 21.6 96 0.116 lbs 0.172 kg
L04I85B Eagle Ivory 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.62" 92mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.118 lbs 0.175 kg
L04BL85B Eagle Blue 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.25" 92mm 7.3 31 12.4 52.5 17.4 73.7 22 93.4 0.121 lbs 0.18 kg
L04G89B Eagle Green 89 B/17 21/32 x 7/16" 17 x 11.5mm 4.07" 104mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.112 lbs 0.178 kg
4911069 Eagle Clear 95 B/17 11/16 x 13/32" 17.5 x 10mm 4.13" 105mm 13.2 58.6 21.5 95.5 28.9 128.6 35.2 156.8 0.119 lbs 0.177 kg
L04BY40B Eagle White 40D B/17 21/32 x 7/16" 17 x 11mm 5.2" 132mm 27.6 122.6 47.1 209.5 64.9 288.9 80.3 357 0.114 lbs 0.17 kg
4940030 Eagle Red 90 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.12 lbs 0.178 kg
L04BE95B Eagle Beige 95 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 30.4 135.1 45.4 201.9 58.6 260.8 70.2 312.3 0.124 lbs 0.184 kg
1032046 Eagle Orange 85 B/17 Ribbed 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 6.5 28.7 10.9 48.6 15.3 68.3 19.4 86.5 0.107 lbs 0.159 kg
L04G89BX Eagle Green 89 B/17 Ridge-Top --- 17 x 19.5mm 6.91" 176mm 53.7 238.9 82 364.9 107.4 477.7 129.5 576.1 0.174 lbs 0.259 kg
1032048 Eagle Orange 85 B/17 Wing-Top 11/16 x 5/8" --- 5" 127mm 7.8 34.6 13.2 58.7 18.5 82.3 23.5 104.3 0.129 lbs 0.192 kg
1232600 Eagle Orange 85 BB 11/16 x 9/16" --- 4.5" 114mm 10.3 45.8 17.5 77.7 24.5 109 31.1 138.1 0.171 lbs 0.254 kg
4911070 Eagle Clear 95 BB 11/16 x 9/16" --- 5.63" 143mm 19.4 86.5 31.7 140.9 42.6 189.6 52 231.1 0.175 lbs 0.26 kg
4924330 Eagle Red 85 CXF B/17 0.69 x 0.5" 17.5 x 12.54mm 4.28" 109mm 8.1 36.1 12.8 57 17.4 77.5 21.7 96.7 0.15 lbs 0.223 kg
493040030M Eagle Ivory 85 SGT PU B/17 0.66 x 0.60" 17 x 15.56mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.146 lbs 0.218 kg
L04I85BSG Eagle Ivory 85 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.158 lbs 0.235 kg
493130030M Eagle Ivory 85 SGT TPE B/17 0.66 x 0.61" 17 x 15.84mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.39 lbs 0.215 kg
L04G89BSG Eagle Green 89 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.16 lbs 0.238 kg
L04R90BSG Eagle Red 90 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.16 lbs 0.238 kg
L04BY40BSG Eagle White 40D SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 6.96" 177mm 27.6 122.6 47.1 209.51 64.9 288.9 80.3 357 0.154 lbs 0.229 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
