1232600 Fenner Drives Eagle Orange 85 V Belting - Cross Section BB - 11/16" w x 9/16" h - Non-Reinforced - 100ft - Beltsmart
Fenner Drives

1232600 by Fenner Drives | Eagle 85 V Belting | Cross Section BB | 11/16" w x 9/16" h | Non-Reinforced | Orange | 100ft

Sale price$2,087.99
Fenner Drives - Conveying - V Belting - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

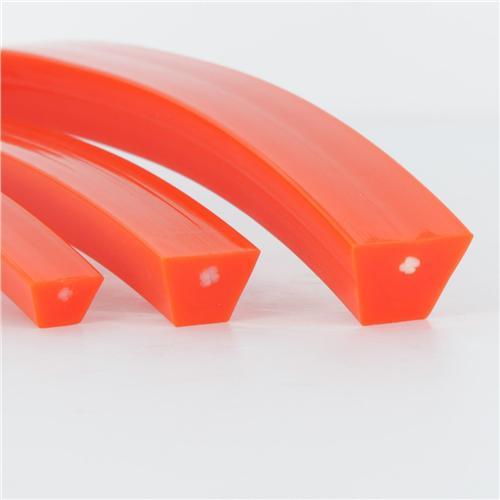

  • Eagle Orange 85 Reinforced Vee Belting is constructed of polyurethane with an 85 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m length.
Description:
  • Eagle Orange 85 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Orange 85 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Vee belt profile.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 shore A durometer
  • polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch, High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Reinforced Vee Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Orange 85 Reinforced Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, Z/10
Reinforcement: Single Polyester Cord Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions
w x h*		 Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4941109 Eagle Blue 80 MD B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 5 22 8.4 37.3 11.8 52.6 15.1 67 0.113 lbs 0.168 kg
4940010 Eagle Opaque 80 B/17 21/32 x 7/16" 17 x 11.5mm 3.17" 81mm 7.4 33.1 15.3 68 24.1 107.2 32.5 144.5 0.121 lbs 0.18 kg
1032047 Eagle Orange 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7 31.1 11.8 52.7 16.6 73.9 21.1 93.7 0.116 lbs 0.172 kg
4912069 Eagle Clear 85 B/17 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 7.2 31.9 12.1 54 17 75.8 21.6 96 0.116 lbs 0.172 kg
L04I85B Eagle Ivory 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.62" 92mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.118 lbs 0.175 kg
L04BL85B Eagle Blue 85 B/17 21/32 x 7/16" 17 x 11.5mm 3.25" 92mm 7.3 31 12.4 52.5 17.4 73.7 22 93.4 0.121 lbs 0.18 kg
L04G89B Eagle Green 89 B/17 21/32 x 7/16" 17 x 11.5mm 4.07" 104mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.112 lbs 0.178 kg
4911069 Eagle Clear 95 B/17 11/16 x 13/32" 17.5 x 10mm 4.13" 105mm 13.2 58.6 21.5 95.5 28.9 128.6 35.2 156.8 0.119 lbs 0.177 kg
L04BY40B Eagle White 40D B/17 21/32 x 7/16" 17 x 11mm 5.2" 132mm 27.6 122.6 47.1 209.5 64.9 288.9 80.3 357 0.114 lbs 0.17 kg
4940030 Eagle Red 90 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.12 lbs 0.178 kg
L04BE95B Eagle Beige 95 B/17 21/32 x 7/16" 17 x 11.5mm 4.5" 115mm 30.4 135.1 45.4 201.9 58.6 260.8 70.2 312.3 0.124 lbs 0.184 kg
1032046 Eagle Orange 85 B/17 Ribbed 11/16 x 13/32" 17.5 x 10mm 3.25" 83mm 6.5 28.7 10.9 48.6 15.3 68.3 19.4 86.5 0.107 lbs 0.159 kg
L04G89BX Eagle Green 89 B/17 Ridge-Top --- 17 x 19.5mm 6.91" 176mm 53.7 238.9 82 364.9 107.4 477.7 129.5 576.1 0.174 lbs 0.259 kg
1032048 Eagle Orange 85 B/17 Wing-Top 11/16 x 5/8" --- 5" 127mm 7.8 34.6 13.2 58.7 18.5 82.3 23.5 104.3 0.129 lbs 0.192 kg
1232600 Eagle Orange 85 BB 11/16 x 9/16" --- 4.5" 114mm 10.3 45.8 17.5 77.7 24.5 109 31.1 138.1 0.171 lbs 0.254 kg
4911070 Eagle Clear 95 BB 11/16 x 9/16" --- 5.63" 143mm 19.4 86.5 31.7 140.9 42.6 189.6 52 231.1 0.175 lbs 0.26 kg
4924330 Eagle Red 85 CXF B/17 0.69 x 0.5" 17.5 x 12.54mm 4.28" 109mm 8.1 36.1 12.8 57 17.4 77.5 21.7 96.7 0.15 lbs 0.223 kg
493040030M Eagle Ivory 85 SGT PU B/17 0.66 x 0.60" 17 x 15.56mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.146 lbs 0.218 kg
L04I85BSG Eagle Ivory 85 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.158 lbs 0.235 kg
493130030M Eagle Ivory 85 SGT TPE B/17 0.66 x 0.61" 17 x 15.84mm 4.28" 109mm 20.6 91.6 31.4 139.8 41.2 183.4 49.9 222.2 0.39 lbs 0.215 kg
L04G89BSG Eagle Green 89 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 37 164.4 56.4 251.1 73.9 328.7 89.1 396.4 0.16 lbs 0.238 kg
L04R90BSG Eagle Red 90 SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 4.82" 122mm 49.3 219.3 71 315.9 89.4 397.5 104.6 465.2 0.16 lbs 0.238 kg
L04BY40BSG Eagle White 40D SGT PVC B/17 0.66 x 0.66" 17 x 17.01mm 6.96" 177mm 27.6 122.6 47.1 209.51 64.9 288.9 80.3 357 0.154 lbs 0.229 kg

* w (width) is the widest part of the belt. h (height) is the tallest part of the belt, including the belting top surface. Dimensions are for reference only.
