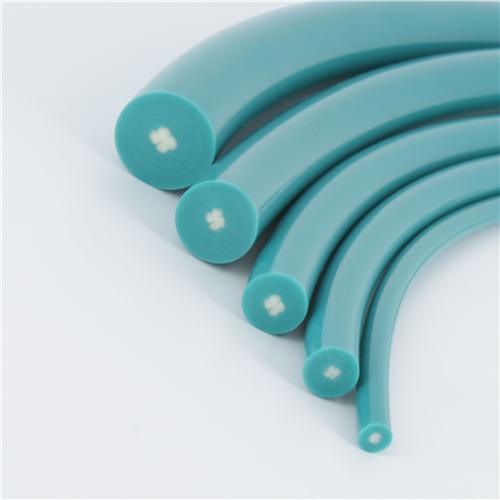

5218015 by Fenner Drives | Eagle Hyfen 85 Round Belting | 5/16" Diameter | Reinforced | Green, Blue | 100ft

5218015 by Fenner Drives | Eagle Hyfen 85 Round Belting | 5/16" Diameter | Reinforced | Green, Blue | 100ft

Sale price$826.45
Fenner Drives - Conveying - Round Belting - 7mm, 8mm, 5/16" Round Cross Sections - Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $776.86
15–29 $702.48
30+ $619.84
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:
  • Eagle Hyfen 85 Reinforced Belting is the ideal high-strength, low-stretch choice with an 85 Shore A durometer and a polyester reinforcing tensile member. Packaged in 100'/30.5m lengths.
Description:
  • Fenner Drives Eagle Hyfen 85 Reinforced Belts are made of an 85 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 85 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 85 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member!

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 85 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 85 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 3/16", 3/4", 3/8", 5/16", 5/8", 9/16"
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940050 Eagle Green 89 Textured --- 7mm 2.76" 70mm 4.5 19.9 13.5 59.9 27.6 122.7 42.5 189.2 0.031 lbs 0.046 kg
4940059 Eagle Orange 85 5/16" --- 3.13" 79mm 1.3 5.6 4.3 19.3 8.5 37.6 12.1 54 0.04 lbs 0.059 kg
5218015 Eagle Hyfen 85 5/16" --- 3.44" 87mm 3.7 16.5 12.4 55.2 20 89 27.8 123.7 0.04 lbs 0.059 kg
L04OG858R Eagle Orange 85 --- 8mm 3.15" 80mm 1.3 5.7 4.4 19.6 8.6 38.2 12.3 54.8 0.041 lbs 0.06 kg
L04G898MRS Eagle Green 89 --- 8mm 3.15" 80mm 4.3 18.9 12.8 56.8 26.2 116.4 40.4 179.5 0.04 lbs 0.06 kg
4940051 Eagle Green 89 Textured --- 8mm 3.15" 80mm 5.8 26 17.6 78.2 36 160.1 55.5 246.8 0.04 lbs 0.06 kg
L04BE958R Eagle Beige 95 --- 8mm 3.78" 96mm 3.8 16.9 7 31.1 10.4 46.3 13.6 60.5 0.042 lbs 0.062 kg
