4940050 by Fenner Drives | Eagle 89 Textured Round Belting | 7mm Diameter | Reinforced | Green | 100ft
Fenner Drives

4940050 by Fenner Drives | Eagle 89 Textured Round Belting | 7mm Diameter | Reinforced | Green | 100ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Overview:

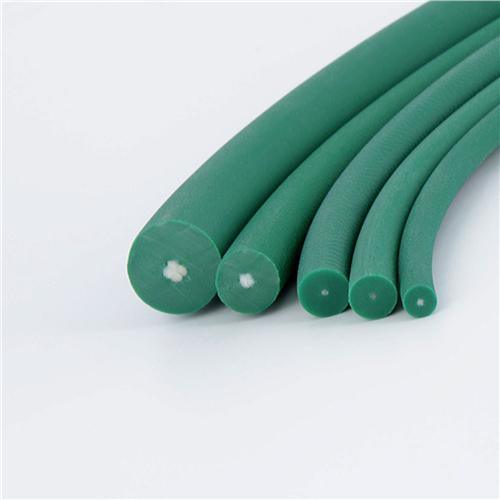

  • Eagle Green 89 Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. They carry no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes those impossibly heavy loads possible to convey. Eagle Green 89 Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of friction) is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Polyester reinforcing tensile member
  • Superior heat and water resistance
  • Low stretch
  • High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Green 89 Reinforced Textured Round Belts are not self-tensioning, they work perfectly with Fenner Drives' T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 18mm, 5mm, 6mm, 7mm, 8mm, 9mm
Reinforcement: Single Polyester Cord Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature Textured
Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940050 Eagle Green 89 Textured --- 7mm 2.76" 70mm 4.5 19.9 13.5 59.9 27.6 122.7 42.5 189.2 0.031 lbs 0.046 kg
4940059 Eagle Orange 85 5/16" --- 3.13" 79mm 1.3 5.6 4.3 19.3 8.5 37.6 12.1 54 0.04 lbs 0.059 kg
5218015 Eagle Hyfen 85 5/16" --- 3.44" 87mm 3.7 16.5 12.4 55.2 20 89 27.8 123.7 0.04 lbs 0.059 kg
L04OG858R Eagle Orange 85 --- 8mm 3.15" 80mm 1.3 5.7 4.4 19.6 8.6 38.2 12.3 54.8 0.041 lbs 0.06 kg
L04G898MRS Eagle Green 89 --- 8mm 3.15" 80mm 4.3 18.9 12.8 56.8 26.2 116.4 40.4 179.5 0.04 lbs 0.06 kg
4940051 Eagle Green 89 Textured --- 8mm 3.15" 80mm 5.8 26 17.6 78.2 36 160.1 55.5 246.8 0.04 lbs 0.06 kg
L04BE958R Eagle Beige 95 --- 8mm 3.78" 96mm 3.8 16.9 7 31.1 10.4 46.3 13.6 60.5 0.042 lbs 0.062 kg

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
