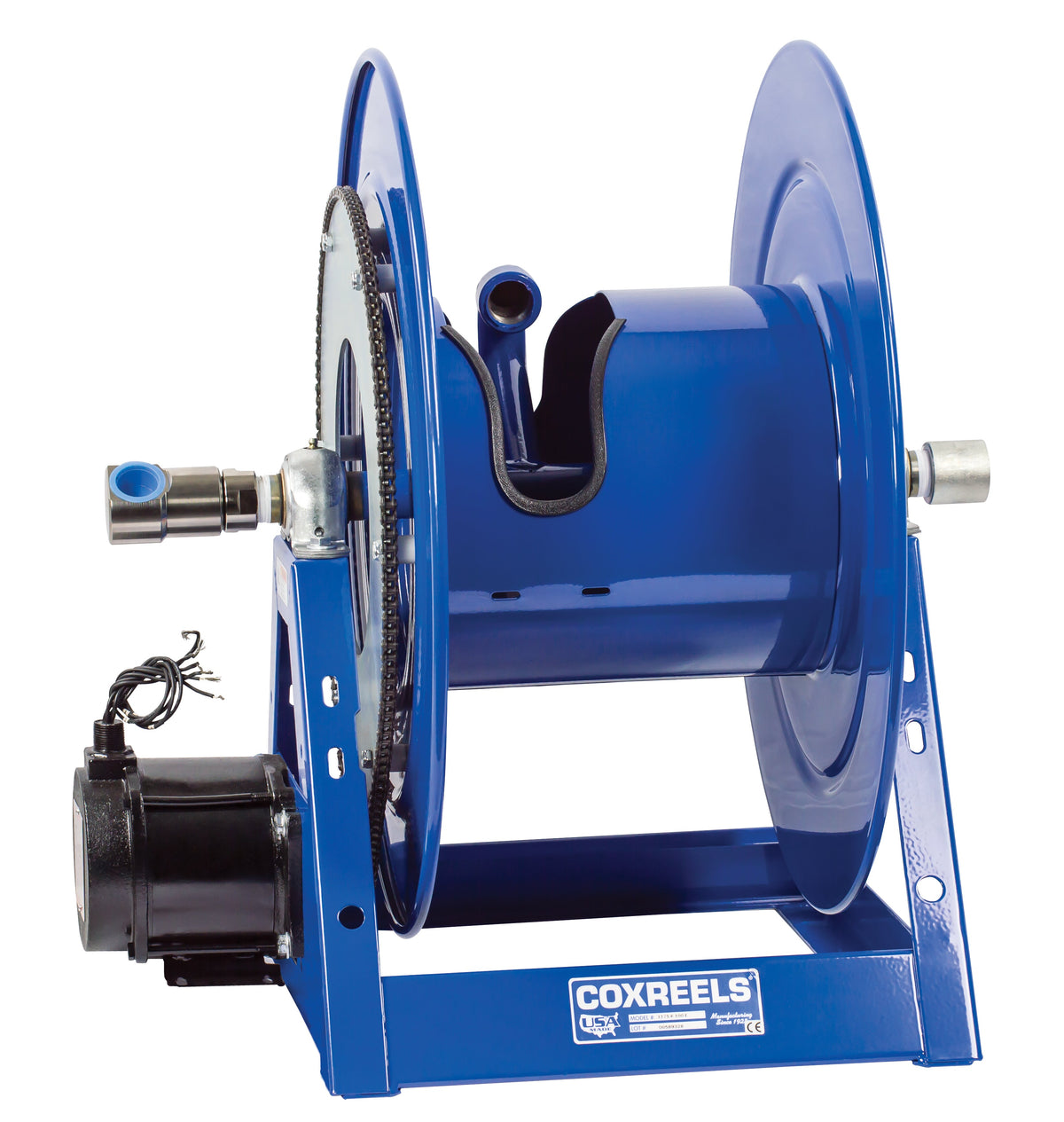

1175-6-150-EB by Coxreels | 1175 Series | 3,000 PSI Motor Driven Hose Reel | 24V DC 1/2 HP Explosion Proof Electric Motor | 1" Hose ID, 1" FNPT Inlet | Steel | 150ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Motor driven hose reel
Coxreels 1175 Series Motor Driven Hose Reels
Steel A-frame motor driven hose reels for water, oil and lubrication, fuel delivery, fire booster hose and high-flow watering, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Oil & Lubrication
- Fuel Delivery
- Fire Booster Hose
- High-Flow Watering
- Hydro Seeding
- Chemical Fluid Transfer
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Nickel Plated Steel 90° full-flow with AFLAS seals
Inlet
1" FNPT
Max Temperature
250°F
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Base Model | Hose I.D. | Capacity | Max PSI | Drum Width | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1175-6-50 | 1" | 50 ft | 3,000 | 7.5" | -A | -E | -H | -AB | -EA | -EB | -ED | — | -EJ |
| 1175-6-100 | 1" | 100 ft | 3,000 | 7.5" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1175-6-125 | 1" | 125 ft | 3,000 | 11.5" | -A | -E | -H | — | -EA | -EB | -ED | — | — |
| 1175-6-135 | 1" | 135 ft | 3,000 | 20" | -A | -E | -H | -AB | -EA | -EB | -ED | — | — |
| 1175-6-150 | 1" | 150 ft | 3,000 | 15.5" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
| 1175-6-200 | 1" | 200 ft | 3,000 | 20" | -A | -E | -H | -AB | -EA | -EB | -ED | -EF | -EJ |
Part number = base model + motor suffix (e.g. 1175-6-100-A). Suffix key:
| Suffix | Motor |
|---|---|
| -A | Air motor (#4 Gast) |
| -E | 12V DC, 1/3 HP electric motor |
| -H | Hydraulic motor |
| -AB | Air motor (#6 Gast) |
| -EA | 115V AC, 1/2 HP, explosion proof electric motor |
| -EB | 24V DC, 1/2 HP, explosion proof electric motor |
| -ED | 12V DC, 1/2 HP, explosion proof electric motor |
| -EF | 24V DC, 1/3 HP electric motor |
| -EJ | 230V AC, 1/2 HP, explosion proof electric motor |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 7.5" | 11.5" | 15.5" | 20" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15363-7.5, 15363-11.5 | 15363-13.5 | 15363-15.5 | 15363-20 |
| 3-way roller bracket, top rewind | 15360-7.5, 15360-11.5 | 15360-13.5 | 15360-15.5 | 15360-20 |
| 4-way roller bracket, bottom rewind | 15037-7.5, 15037-11.5 | 15037-13.5 | 15037-15.5 | 15037-20 |
| 4-way roller bracket, top rewind | 15357-7.5, 15357-11.5 | 15357-13.5 | 15357-15.5 | 15357-20 |
Hose guides — by drum width:
| Accessory | 7.5" | 11.5" | 15.5" | 20" |
|---|---|---|---|---|
| Pivoting Hose Guide HD - Bottom Return | 15728-7.5, 15728-11.5 | 15728-13.5 | 15728-15.5 | 15728-20 |
| Pivoting Hose Guide HD - Top Return | 15729-7.5, 15729-11.5 | 15729-13.5 | 15729-15.5 | 15729-20 |
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts — fit every model | ||
| 7700 | Gear Guards (for motor driven only) | |
| 8340 | Heavy Duty Band Brake | |
| HSRK-100, HSRK-100F | Hose Strain Relief Kit | |
| 20843 | Spring Loaded Lock Pin | |
| Motor controls | ||
| 20873, 20874, 20875 | 115/230 AC/Volt Variable Speed Controller | -EA models, plus 1175-6-50-EJ |
| 20870, 20871, 20872 | 12 Volt DC Electric Motor Variable Speed Controller | -E, -ED models |
| 20878 | Circuit Breaker | -E, -ED models |
| 15212 | Control Valve for No. 4 Gast Air Motor | -A models |
| 15212-1 | Control Valve for No. 6 Gast Air Motor | 1175-6-50/100/200-AB |
| 20882 | Explosion Proof Stationary Push Button Switch | -E models |
| 15210 | General Purpose Reversing Switch | -EA models, plus 1175-6-50-EJ |
| 20876 | Sealed Push Button Switch | -E, -EA, -EB, -ED models, plus 1175-6-50-EJ; 1175-6-200-EF |
| 20877 | Solenoid Relay | -E, -ED models |
| 8281 | Switch Box | -E, -ED models |
| 20883 | Vapor Proof Junction Box | -E, -EA, -EB, -ED models, plus 1175-6-50-EJ; 1175-6-200-EF |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCA / -BXCX | Top payout, on reel: motorized right / motorized left |
| -BXFX / -BXFI | Bottom payout, on reel: motorized right / motorized left |
| 3-way roller position | |
| -BXEA / -BXEX | Top payout, on reel: motorized right / motorized left |
| -BXHX / -BXHI | Bottom payout, on reel: motorized right / offset motorized left-front |
| Swivel and motor/crank position | |
| -BXXX | Top payout motorized standard, swivel left, motor left |
| -BXAI | Top payout motorized standard, swivel right, motor right |
| -BXAI | Bottom payout motorized standard, swivel left, motor left |
| -BXXX | Bottom payout motorized standard, swivel right, motor right |
7
Where can I find product documents?
1175 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
⚠ WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer, and Chromium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
