15729-11.5 by Coxreels | Heavy Duty Pivoting Hose Guide for Hand Crank & Motorized Hose Reels | Top Return, 11.5" Drum Width | Fits 1175 & Storage Series | Steel
Buy more, save moreDiscounts applied in cart/checkout.

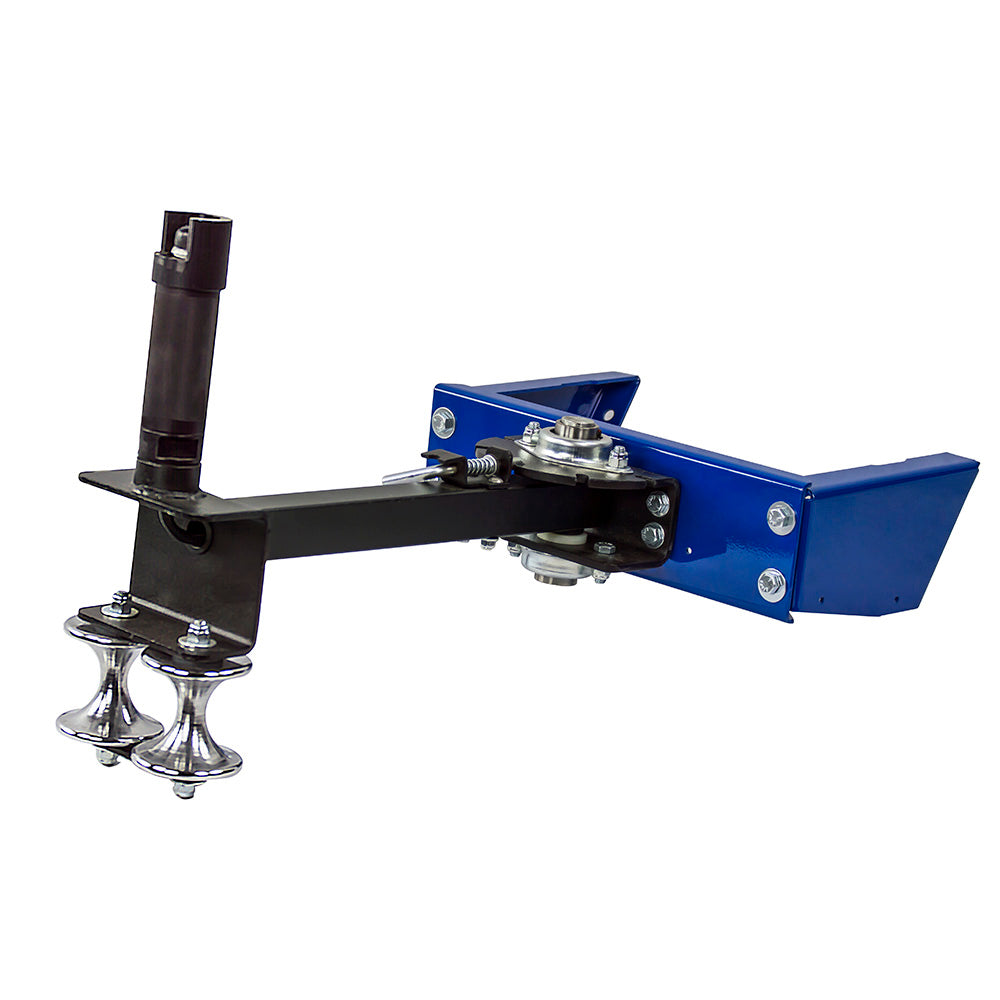

Coxreels Pivoting Hose Guide - HD
Heavy-duty pivoting hose guide for 1175 and 1185 Series motorized reels.
What are the main product features?
- Powder coated steel arm, 5 locking positions, 1" pivot shaft
- Sealed precision bearings, chrome-plated billet aluminum rollers
- Motor options E and ED; sized by drum width
Which part numbers are available?
Order the part number whose drum width matches your reel's drum width.
| Part Number | Return | Drum Width | Fits |
|---|---|---|---|
| 15728-7.5 | Bottom | 7.5" | 1175 |
| 15728-11.5 | Bottom | 11.5" | 1175, 1185, 1185-BUXX, Storage |
| 15728-13.5 | Bottom | 13.5" | 1175 |
| 15728-15.5 | Bottom | 15.5" | 1175, 1185, 1185-BUXX |
| 15728-20 | Bottom | 20" | 1175, 1185, 1185-BUXX, Storage |
| 15728-25 | Bottom | 25" | 1185, 1185-BUXX |
| 15728-33 | Bottom | 33" | 1185, 1185-BUXX, Storage |
| 15729-7.5 | Top | 7.5" | 1175 |
| 15729-11.5 | Top | 11.5" | 1175, Storage |
| 15729-13.5 | Top | 13.5" | 1175 |
| 15729-15.5 | Top | 15.5" | 1175 |
| 15729-20 | Top | 20" | 1175, Storage |
| 15730-11.5 | Top | 11.5" | 1185, 1185-BUXX |
| 15730-15.5 | Top | 15.5" | 1185, 1185-BUXX |
| 15730-20 | Top | 20" | 1185, 1185-BUXX, Storage |
| 15730-25 | Top | 25" | 1185, 1185-BUXX |
| 15730-33 | Top | 33" | 1185, 1185-BUXX, Storage |
Additional Product Data:
Series:
Material(s):
Compatible Series:
