15357-13.5 by Coxreels | 4-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 13.5" Drum Width | Fits 1175 & 1275 Series | Steel
Buy more, save moreDiscounts applied in cart/checkout.

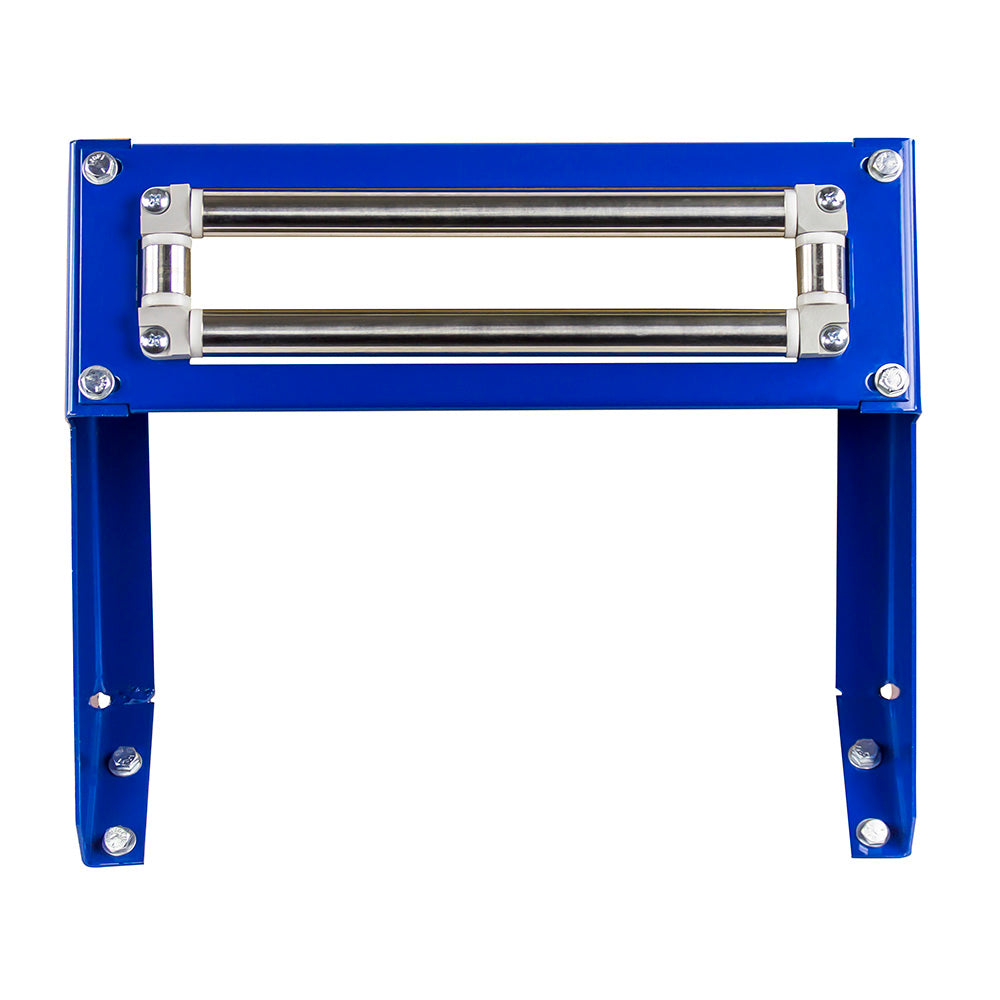

Coxreels 4-Way Top Roller Bracket
Top-rewind 4-way roller bracket for hand crank and motorized hose reels.
What are the main product features?
- 4-way enclosed, pinch-proof 1" stainless steel rollers
- Powder coated steel brackets
- Sized by drum width (part-number suffix) and disc size
Which part numbers are available?
Order the part number whose drum width matches your reel's drum width.
-SS and -SP part numbers are the versions for the matching -SS / -SP stainless reel models.
| Part Number | Drum Width | Version | Fits |
|---|---|---|---|
| 9073-8 | 8" | Standard | 100, 100W |
| 9073-12.5 | 12.5" | Standard | 100 |
| 9073-18 | 18" | Standard | 100 |
| 9075-8 | 8" | Standard | 100 Pure Flow, 100, 100W, 112Y |
| 9075-12.5 | 12.5" | Standard | 100, 112Y |
| 15353-6 | 6" | Standard | 1125 Pure Flow, 1125, 1125WCL, HP1125 |
| 15353-6-SP | 6" | -SP | 1125-SS |
| 15353-6-SS | 6" | -SS | 1125-SS |
| 15353-8 | 8" | Standard | 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W |
| 15353-9.5 | 9.5" | Standard | 1125 |
| 15353-12 | 12" | Standard | 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage |
| 15353-12-SP | 12" | -SP | 1125-SS |
| 15353-12-SS | 12" | -SS | 1125-SS |
| 15353-15.5 | 15.5" | Standard | 1125 |
| 15353-18 | 18" | Standard | 1125, 1275, 1275W, HP1125, Storage |
| 15353-20 | 20" | Standard | 1275 |
| 15353-22 | 22" | Standard | 1125 |
| 15353-24 | 24" | Standard | 1125, 1275, HP1125 |
| 15353-24-SP | 24" | -SP | 1125-SS |
| 15353-24-SS | 24" | -SS | 1125-SS |
| 15353-28 | 28" | Standard | 1125, HP1125, Storage |
| 15355-6 | 6" | Standard | 1125 Pure Flow, 1125 |
| 15355-8 | 8" | Standard | 1125 Pure Flow, 1275, 1275HP, 1275W |
| 15355-9.5 | 9.5" | Standard | 1125 |
| 15355-12 | 12" | Standard | 1125 Pure Flow, 1125, 1275, 1275HP, 1275W |
| 15355-15.5 | 15.5" | Standard | 1125 |
| 15355-18 | 18" | Standard | 1125, 1275, 1275W |
| 15355-24 | 24" | Standard | 1125, 1275, 1275W |
| 15355-28 | 28" | Standard | 1125 |
| 15357-7.5 | 7.5" | Standard | 1175 |
| 15357-11.5 | 11.5" | Standard | 1175, Storage |
| 15357-11.5-SP | 11.5" | -SP | 1175-SS |
| 15357-11.5-SS | 11.5" | -SS | 1175-SS |
| 15357-13.5 | 13.5" | Standard | 1175, 1275 |
| 15357-15.5 | 15.5" | Standard | 1175 |
| 15357-20 | 20" | Standard | 1175, 1275, Storage |
| 15357-20-SP | 20" | -SP | 1175-SS |
| 15357-20-SS | 20" | -SS | 1175-SS |
| 15368-1-9.5 | 9.5" | Standard | 1195, 1195-BUXX |
| 15368-1-13.5 | 13.5" | Standard | 1195, 1195-BUXX |
| 15368-1-17.5 | 17.5" | Standard | 1195, 1195-BUXX |
| 15368-1-20 | 20" | Standard | 1195, 1195-BUXX |
| 15368-17.5 | 17.5" | Standard | 1195 |
| 15368-24 | 24" | Standard | 1195, 1195-BUXX |
| 15368-32 | 32" | Standard | 1195, 1195-BUXX |
| 15369-1-20 | 20" | Standard | 1185, 1185-BUXX, Storage |
| 15369-1-25 | 25" | Standard | 1185, 1185-BUXX |
| 15369-1-33 | 33" | Standard | 1185, 1185-BUXX, Storage |
| 15369-11.5 | 11.5" | Standard | 1185, 1185-BUXX |
| 15369-15.5 | 15.5" | Standard | 1185, 1185-BUXX |
| 15369-20 | 20" | Standard | 1185, 1185-BUXX |
| 15369-33 | 33" | Standard | 1185, 1185-BUXX |
| 16901 | — | Standard | 1600 (20" disc) |
| 16902 | — | Standard | 1600 (24" disc) |
| 16903 | — | Standard | 1600 (28" disc) |
Additional Product Data:
Series:
Material(s):
Compatible Series:
