15360-11.5 by Coxreels | 3-Way Top Roller Bracket for Hand Crank & Motorized Hose Reels | 11.5" Drum Width | Steel
Buy more, save moreDiscounts applied in cart/checkout.

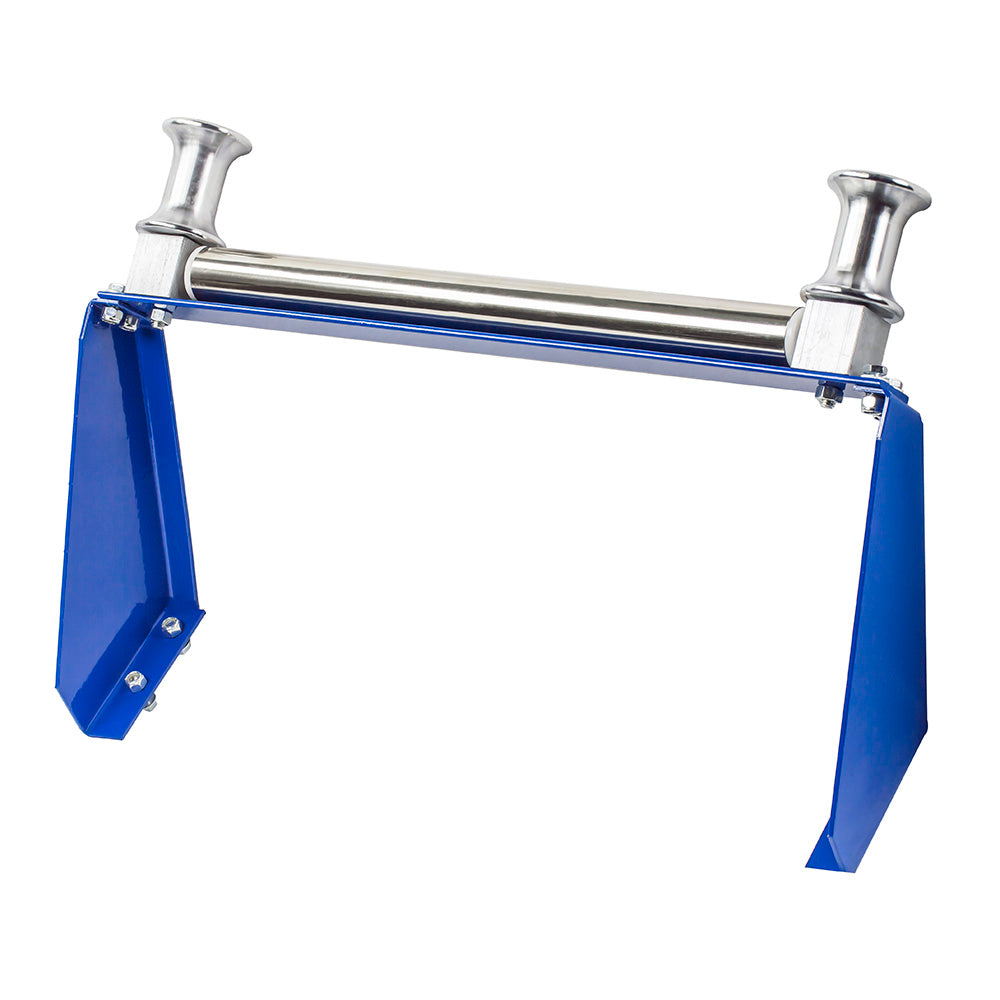

Coxreels 3-Way Top Roller Bracket
Top-rewind 3-way open-spool roller bracket for hand crank and motorized hose reels.
What are the main product features?
- 1.5" chrome-plated machined steel spools
- 1.5" stainless steel bottom roller
- Powder coated steel brackets; sized by drum width
Which part numbers are available?
Order the part number whose drum width matches your reel's drum width.
| Part Number | Drum Width | Fits |
|---|---|---|
| 15359-6 | 6" | 1125 Pure Flow, 1125, 1125WCL, HP1125 |
| 15359-8 | 8" | 1125 Pure Flow, 1125PCL, 1275, 1275HP, 1275W |
| 15359-9.5 | 9.5" | 1125 |
| 15359-12 | 12" | 1125 Pure Flow, 1125, 1125WCL, 1275, 1275HP, 1275W, HP1125, Storage |
| 15359-15.5 | 15.5" | 1125 |
| 15359-18 | 18" | 1125, 1275, 1275W, HP1125, Storage |
| 15359-20 | 20" | 1275 |
| 15359-22 | 22" | 1125 |
| 15359-24 | 24" | 1125, 1275, 1275W, HP1125 |
| 15359-28 | 28" | 1125, HP1125, Storage |
| 15360-7.5 | 7.5" | 1175 |
| 15360-11.5 | 11.5" | 1175, 1185, 1185-BUXX, Storage |
| 15360-13.5 | 13.5" | 1175 |
| 15360-15.5 | 15.5" | 1175, 1185, 1185-BUXX |
| 15360-20 | 20" | 1175, 1185, 1185-BUXX, Storage |
| 15360-25 | 25" | 1185, 1185-BUXX |
| 15360-33 | 33" | 1185, 1185-BUXX |
| 15361-20 | 20" | Storage |
| 15361-33 | 33" | Storage |
Additional Product Data:
Series:
Material(s):
Compatible Series:
