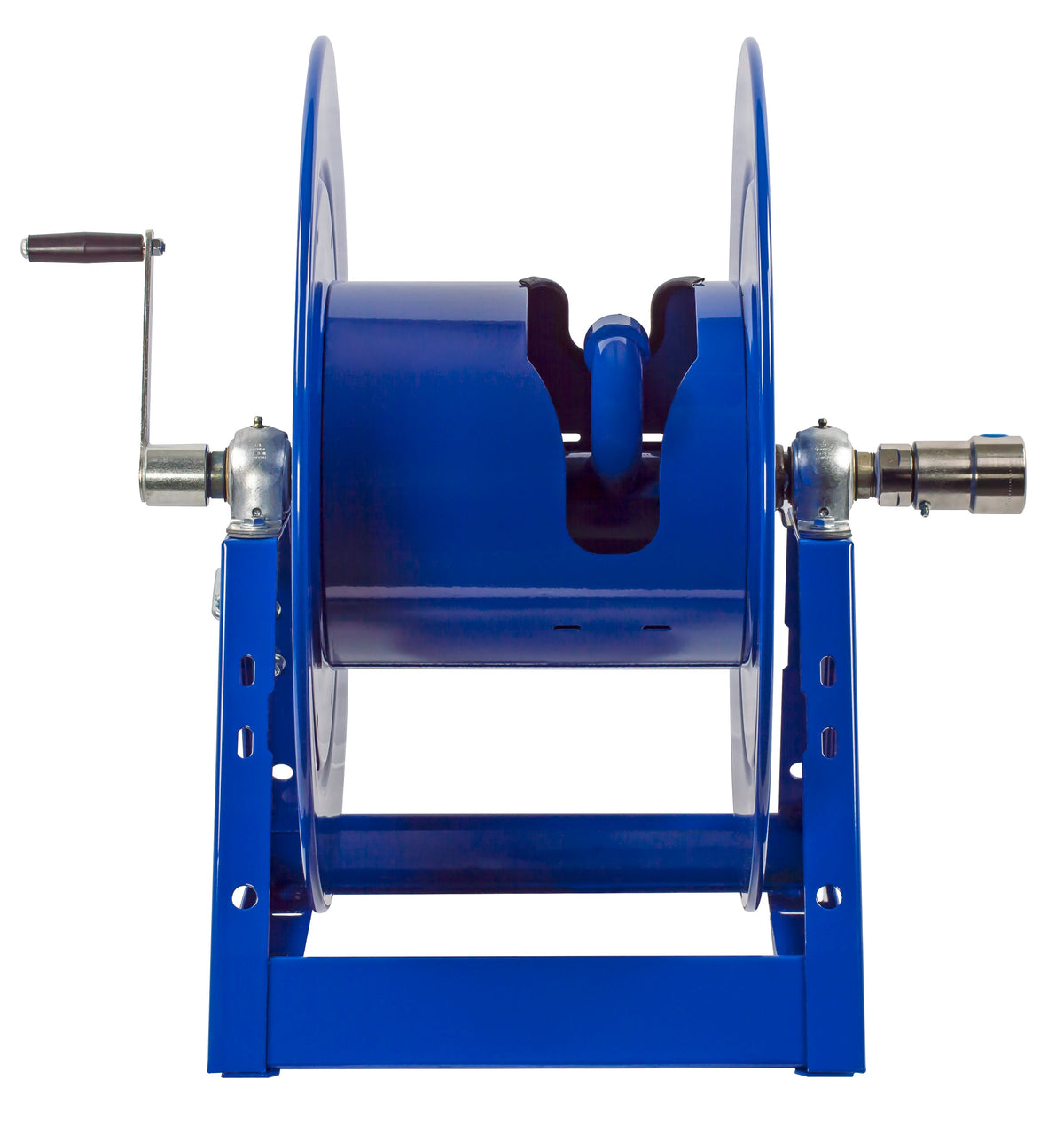

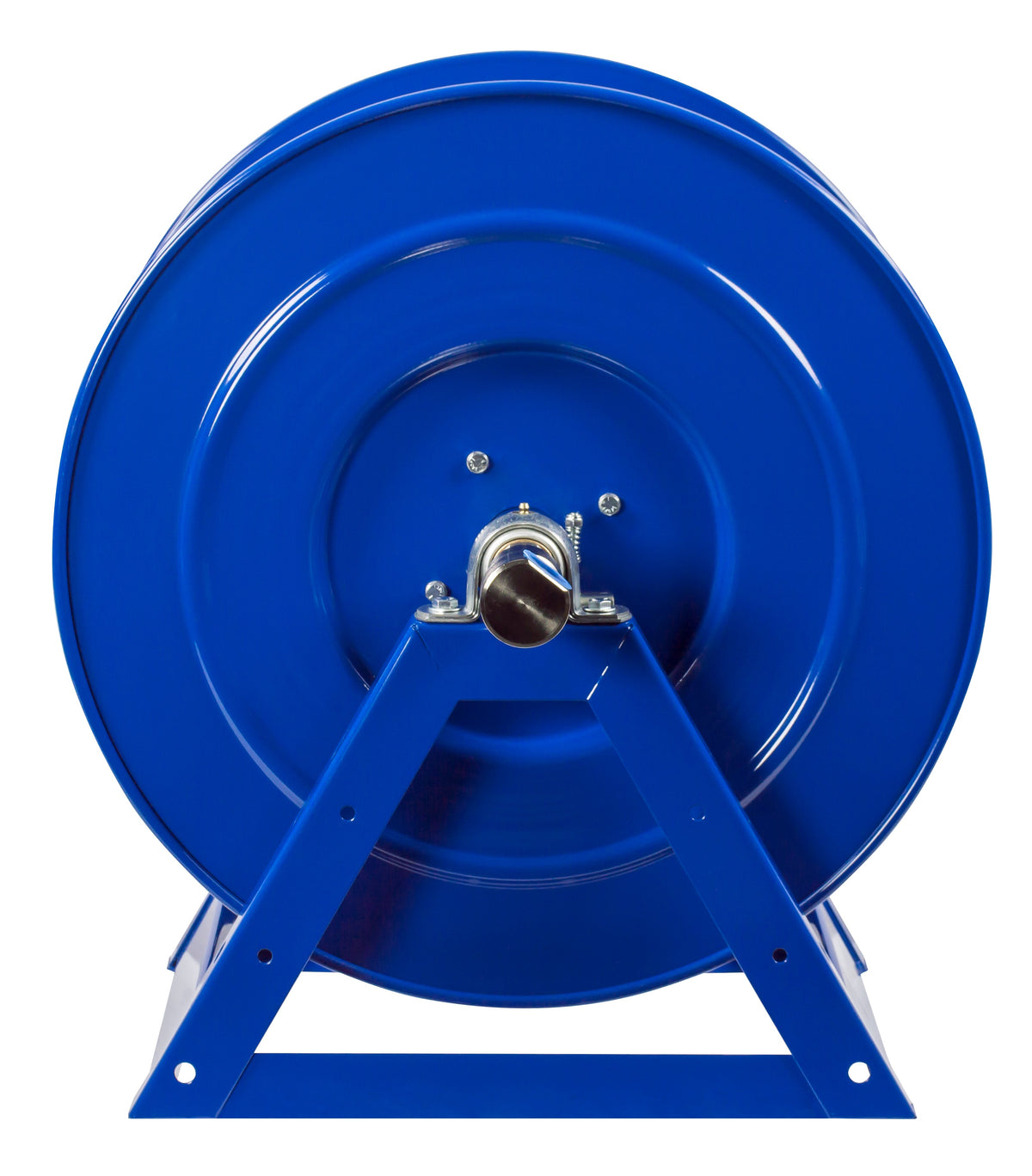

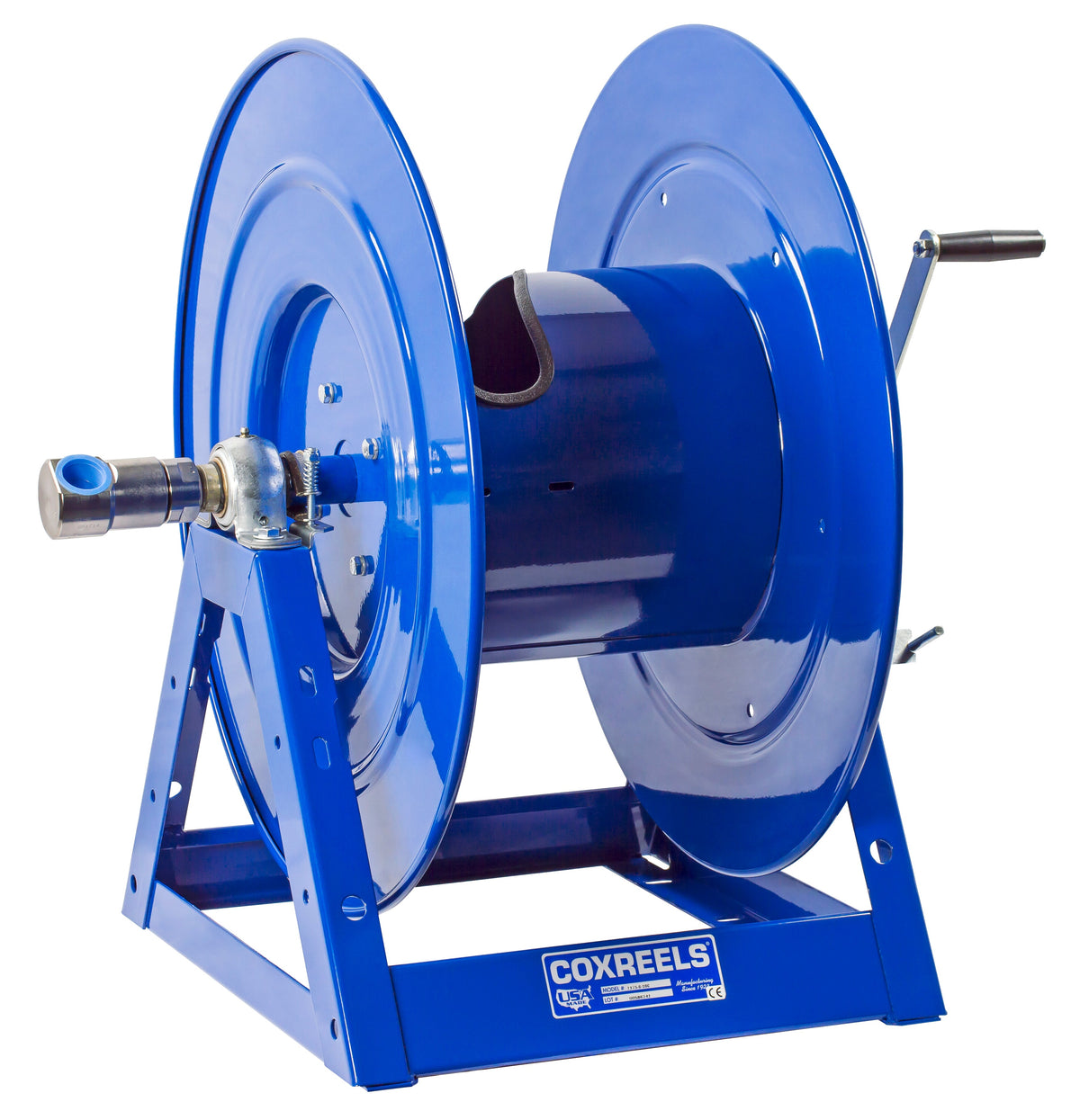

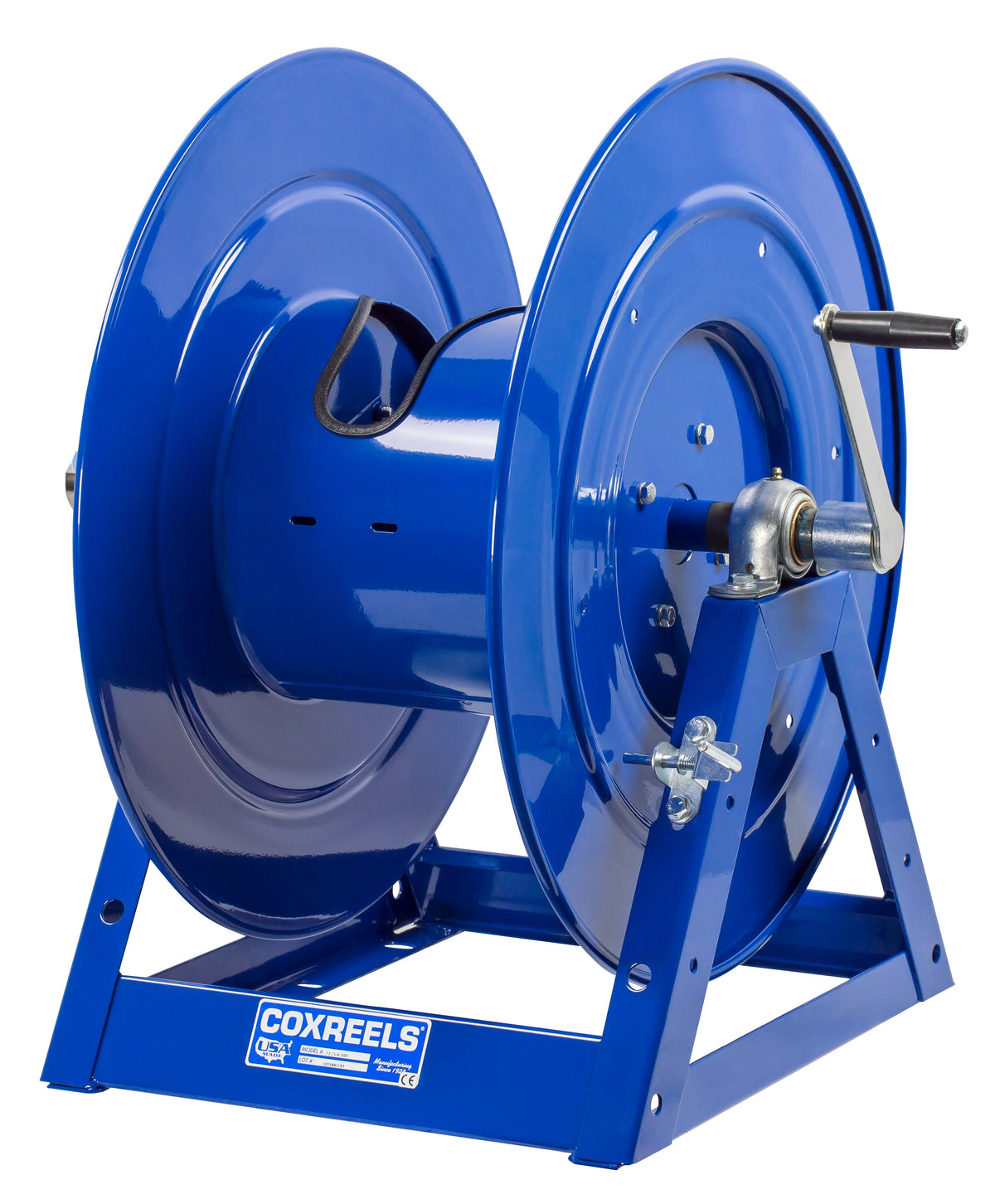

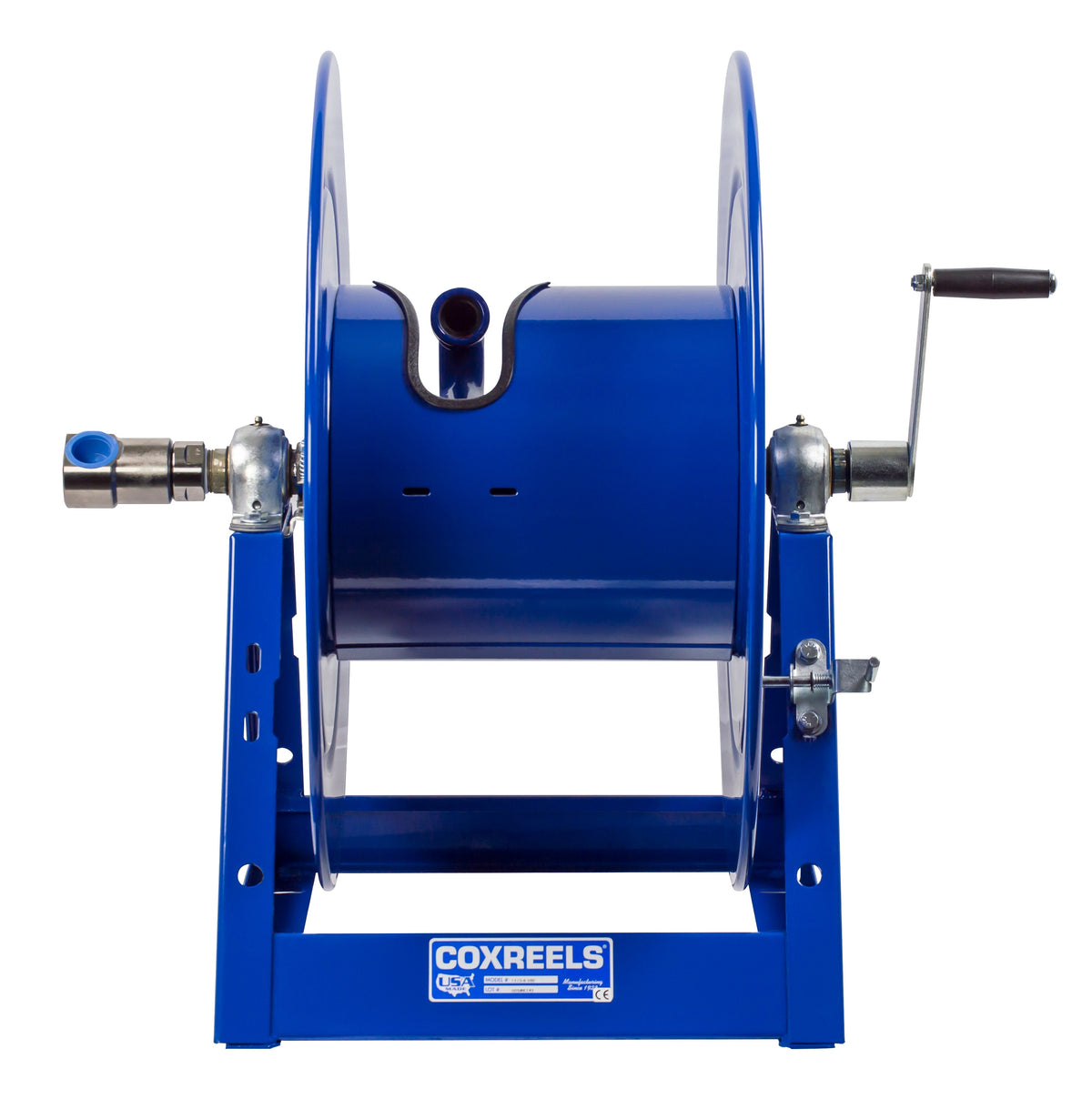

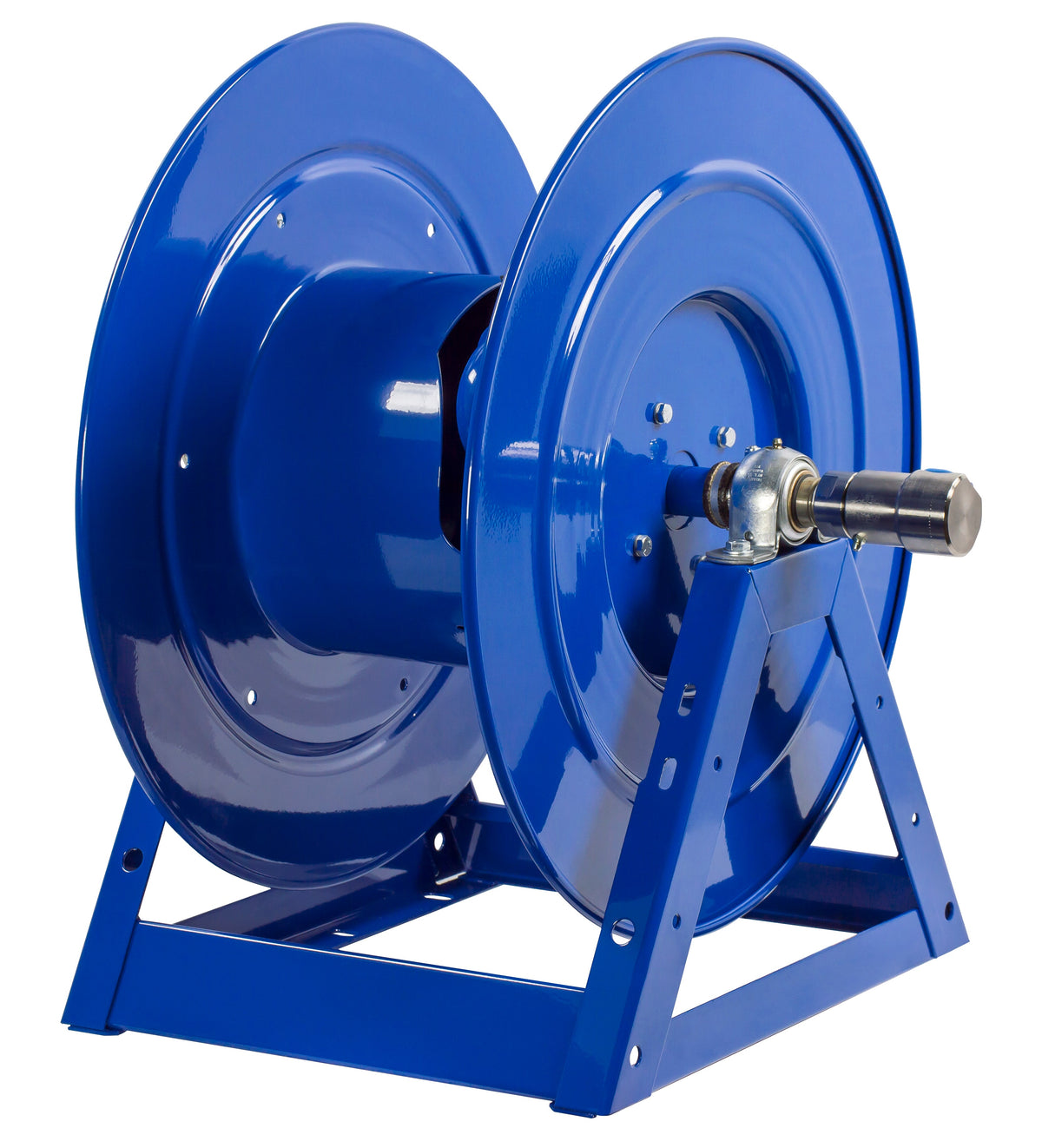

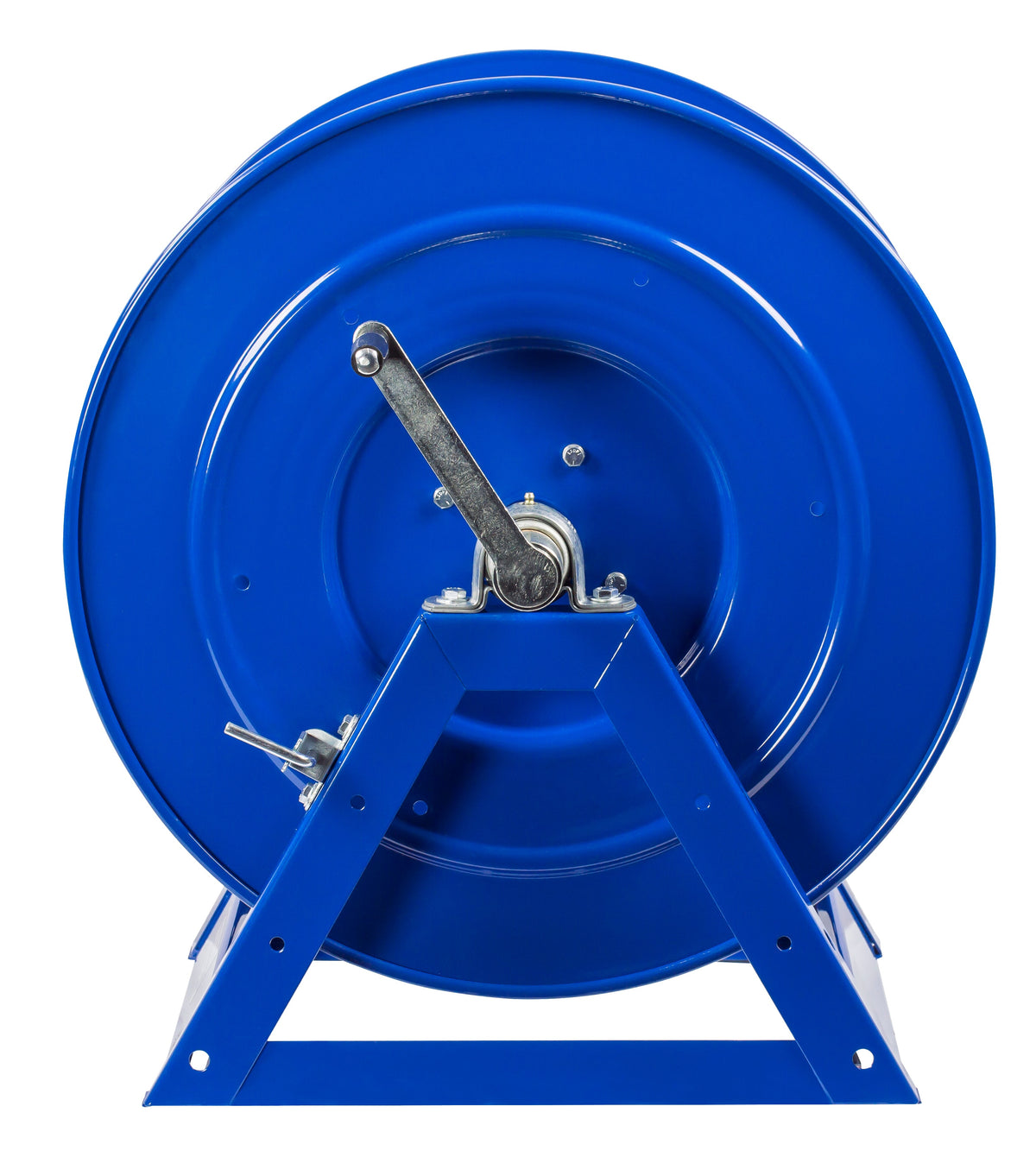

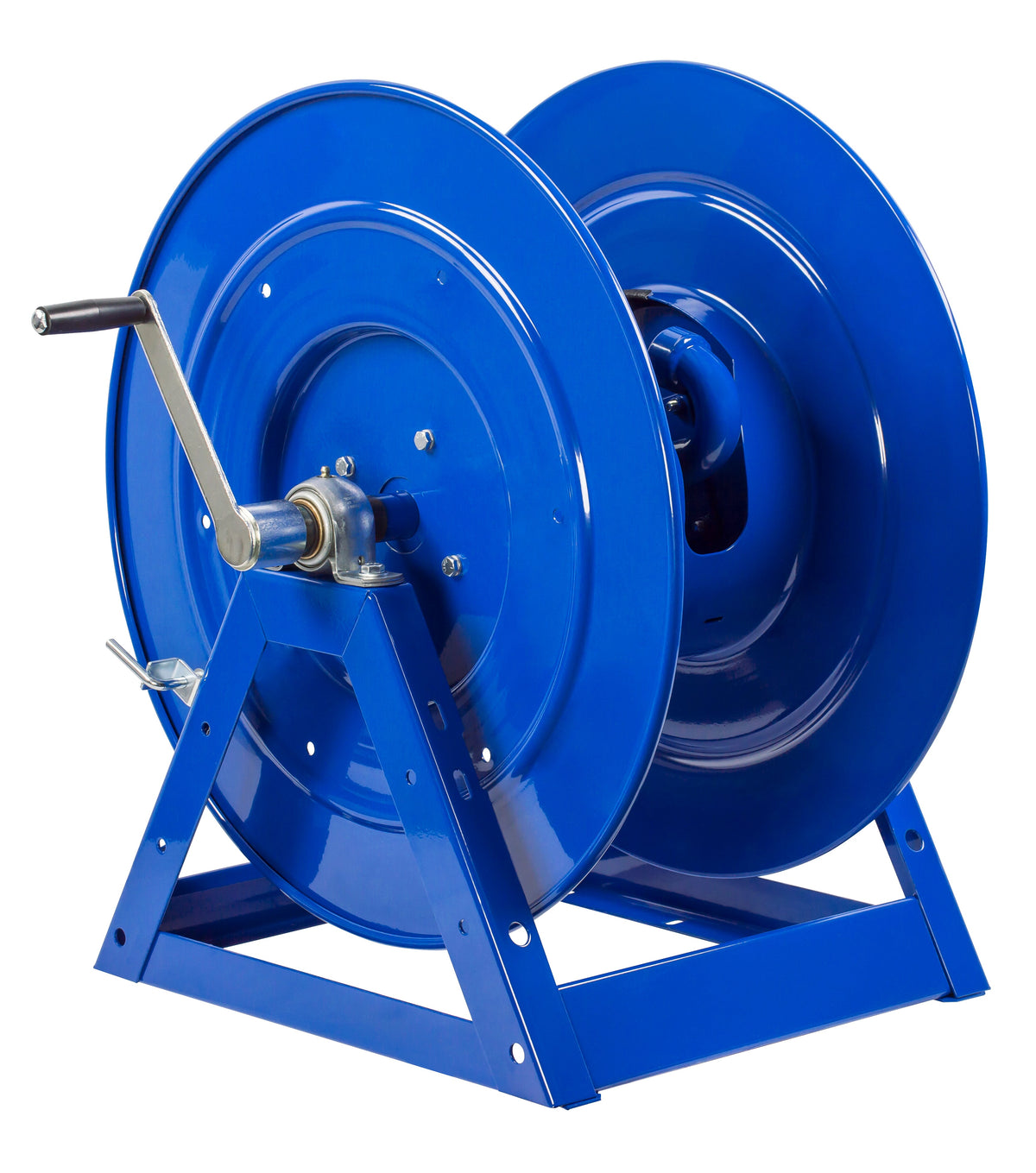

1175-6-125 by Coxreels | 1175 Series | 3,000 PSI Hand Crank Hose Reel | 1" Hose ID, 1" FNPT Inlet | Steel | 125ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Hand crank hose reel
Coxreels 1175 Series Hand Crank Hose Reels
Steel A-frame hand crank hose reels for water, oil and lubrication, fuel delivery, fire booster hose and high-flow watering, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Water
- Oil & Lubrication
- Fuel Delivery
- Fire Booster Hose
- High-Flow Watering
- Hydro Seeding
- Chemical Fluid Transfer
- Bulk Liquid Handling
2
What are the key specifications?
Construction
Steel, A-frame
Swivel
Nickel Plated Steel 90° full-flow with AFLAS seals
Inlet
1" FNPT
Max Temperature
250°F / 225°F depending on hose
Bearings
Permanently Lubricated Self Aligning Pillow Block Bearings
Finish
CPC™ powder coat
Mounting
Floor, Wall, Vehicle Mounting
Mounting Holes
0.5 SLOT
3
What are the main product features?
- Swivel — Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" Frame — Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- Pillow Block Bearings — Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Reel W × H × L (in) |
|---|---|---|---|---|---|
| 1175-6-50 | 1" | 50 ft | 3,000 | 7.5" | 24.125 × 26.125 × 24 |
| 1175-6-50-C | 1" | 50 ft | 3,000 | 7.5" | 24.125 × 26.125 × 24 |
| 1175-6-100 | 1" | 100 ft | 3,000 | 7.5" | 28.125 × 26.125 × 24 |
| 1175-6-100-C | 1" | 100 ft | 3,000 | 7.5" | 28.125 × 26.125 × 24 |
| 1175-6-125 | 1" | 125 ft | 3,000 | 11.5" | 30.125 × 26.125 × 24 |
| 1175-6-125-C | 1" | 125 ft | 3,000 | 11.5" | 30.125 × 26.125 × 24 |
| 1175-6-135 | 1" | 135 ft | 3,000 | 20" | 36.625 × 22 × 20 |
| 1175-6-150 | 1" | 150 ft | 3,000 | 15.5" | 32.125 × 26.125 × 24 |
| 1175-6-150-C | 1" | 150 ft | 3,000 | 15.5" | 32.125 × 26.125 × 24 |
| 1175-6-200 | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
| 1175-6-200-C | 1" | 200 ft | 3,000 | 20" | 36.625 × 26.125 × 24 |
5
Which accessories are available?
Roller guides — by drum width:
| Accessory | 7.5" | 11.5" | 15.5" | 20" |
|---|---|---|---|---|
| 3-way roller bracket, bottom rewind | 15363-7.5, 15363-11.5 | 15363-13.5 | 15363-15.5 | 15363-20 |
| 4-way roller bracket, bottom rewind | 15037-7.5, 15037-11.5 | 15037-13.5 | 15037-15.5 | 15037-20 |
| 4-way roller bracket, top payout, ceiling mount applications | 15356-7.5, 15356-11.5 | 15356-13.5 | 15356-15.5 | 15356-20 |
| 4-way roller bracket, top rewind | 15357-7.5, 15357-11.5 | 15357-13.5 | 15357-15.5 | 15357-20 |
| Part # | Accessory | Fits |
|---|---|---|
| Roller guides | ||
| 15360-7.5 | 3-way roller bracket, top rewind | 1175-6-50 |
| 15360-11.5 | 3-way roller bracket, top rewind | 1175-6-100 |
| 15360-13.5 | 3-way roller bracket, top rewind | 1175-6-125 |
| 15360-15.5 | 3-way roller bracket, top rewind | 1175-6-150 |
| 15360-20 | 3-way roller bracket, top rewind | 1175-6-135/200 |
Hose guides — by drum width:
| Accessory | 7.5" | 11.5" | 15.5" | 20" |
|---|---|---|---|---|
| Pivoting Hose Guide HD - Bottom Return | 15728-7.5, 15728-11.5 | 15728-13.5 | 15728-15.5 | 15728-20 |
| Pivoting Hose Guide HD - Top Return | 15729-7.5, 15729-11.5 | 15729-13.5 | 15729-15.5 | 15729-20 |
| Part # | Accessory | Fits |
|---|---|---|
| Upgrades and service parts | ||
| 7700 | Gear Guards (for motor driven only) | 1175-6-50/100/125/150/200-C |
| 8340 | Heavy Duty Band Brake | Drum width 11.5" |
| HSRK-100, HSRK-100F | Hose Strain Relief Kit | Every model |
| 20843 | Spring Loaded Lock Pin | Every model |
| Carts | ||
| PRP-1175-11 | Portable Cart - (w/ 8" semi-pneumatic tires) | Capacity 100 ft |
| PR-1175-11 | Portable Cart - (w/ Solid 8" rubber tires) | Capacity 100 ft |
| PR-1175-15 | Portable Cart - (w/ Solid 8" rubber tires) | 1175-6-150 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| -ZXXX | Galvanized |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BFXX | Standard plumbing & stainless steel swivel with Nitrile |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX / -BDXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR / with food grade |
| -BQXX | Stainless steel plumbing, less swivel |
| -BYXX | Less swivel, no riser, storage |
| 4-way roller position | |
| -BXCX / -BXCF / -BXCA / -BXCX | Top payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| -BXIX | Top payout, ceiling mount applications, on reel |
| -BXFF / -BXFF/-BXFX / -BXFX | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right |
| 3-way roller position | |
| -BXEX / -BXEF | Top payout, on reel: hand crank right / hand crank left |
| -BXHF / -BXHX / -BXHX / -BXHF | Bottom payout, on reel: hand crank right / hand crank left / bevel crank right / bevel crank left |
| Swivel and motor/crank position | |
| -BXXX | Top payout hand crank, swivel left, crank right |
| -BXAF | Top payout hand crank, swivel right, crank left |
| -BXAF | Bottom payout hand crank, swivel left, crank right |
| -BXXX | Bottom payout hand crank, swivel right, crank left |
| -BXXA | Top payout bevel crank, swivel left, crank right |
| -BXXX | Top payout bevel crank, swivel right, crank left |
| -BXXX | Bottom payout bevel crank, swivel right, crank left |
| -BXXA | Bottom payout motorized standard, swivel left, motor left |
7
Where can I find product documents?
1175 Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
