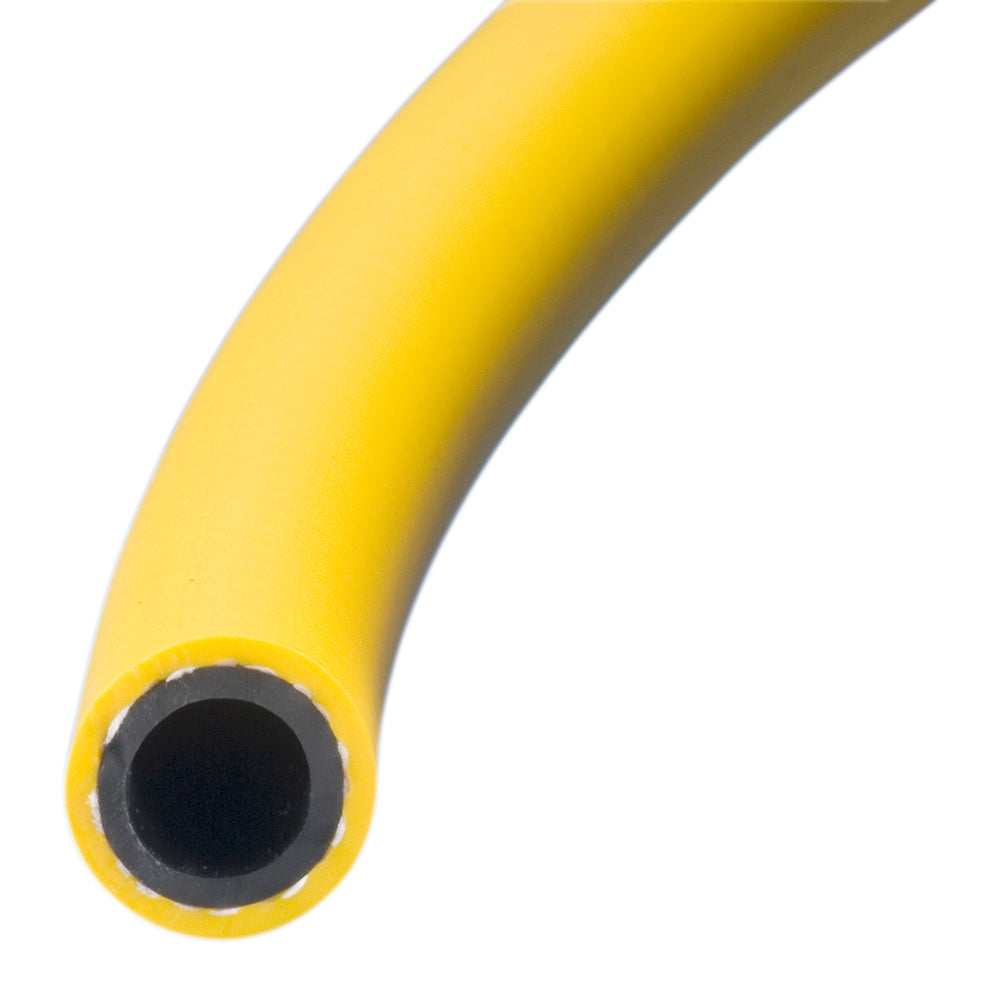

K1131-12X100 Kuri-Tec by Kuriyama | POLYAIR® | K1131 Series | Multi-Purpose Air & Water Hose | 3/4" ID | 1.125" OD | Yellow | 100ft Length

K1131-12X100 Kuri-Tec by Kuriyama | POLYAIR® | K1131 Series | Multi-Purpose Air & Water Hose | 3/4" ID | 1.125" OD | Yellow | 100ft Length

Sale price$242.32

Kuri Tec® by Kuriyama
POLYAIR® | K1131 Series | Multi-Purpose Air & Water Hose

Kuriyama's high quality flexible PVC compounds are uniquely blended to make this hose look and feel like comparable rubber hose and stay flexible at low temperatures.

Its light weight makes it an ideal hose for air tool applications.

Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
5–19 $227.78
20–59 $205.97
60+ $181.74
Discounts applied in cart/checkout.

Product Data:

Brand:
  • POLYAIR
  • Kuri Tec
Series:
  • K1131 Series
Color(s):
  • Yellow

SPECIFICATIONS

Applications: Ideal for in-plant applications requiring color coding of hose supply lines.
Transfer of air, water and mild water-soluble chemicals.
Outdoor applications requiring a low temperature hose.
General air supply line for pneumatic tools and paint spray systems.
Low pressure spray hose for water-soluble chemicals.
Tube: Black PVC compound. Reinforcement: Spiral polyester yarn with additional longitudinal yarns... reduces elongation under pressure.
Cover: PVC compound. Pin-pricked. Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • U. V. and weather resistant.
  • Excellent cold weather flexibility.
  • Easily re-coiled after use.
  • Medium/high oil resistance, complies with ARPM's Class B Designation.
  • Non-marking pin-pricked cover.
  • Lightweight.
  • One-piece lengths.
  • Chemical resistance of PVC.
  • Silicone-free materials.
  • RoHS compliant.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1134 Series | Red
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1134-04X100 - K1134-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1134-05X100 - K1134-05X500 5/16" 8.0mm 0.625" 15.9mm 300 PSI 180 PSI
K1134-06X100 - K1134-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1134-08X100 - - 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1134-10X100 K1134-10X300 - 5/8" 15.9mm 0.906" 23.0mm 250 PSI 125 PSI
K1134-12X100 K1134-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1134-16X100 K1134-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1131 Series | Yellow
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1131-04X100 - K1131-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1131-06X100 - K1131-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1131-08X100 - K1131-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1131-12X100 K1131-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1131-16X100 K1131-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1136 Series | Blue
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1136-04X100 - K1136-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1136-06X100 - K1136-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1136-08X100 - K1136-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1136-12X100 K1136-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1136-16X100 K1136-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1138 Series | Gray
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1138-04X100 - K1138-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1138-06X100 - K1138-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1138-08X100 - K1138-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1138-12X100 K1138-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1138-16X100 K1138-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1137 Series | Green
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1137-06X100 - K1137-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
