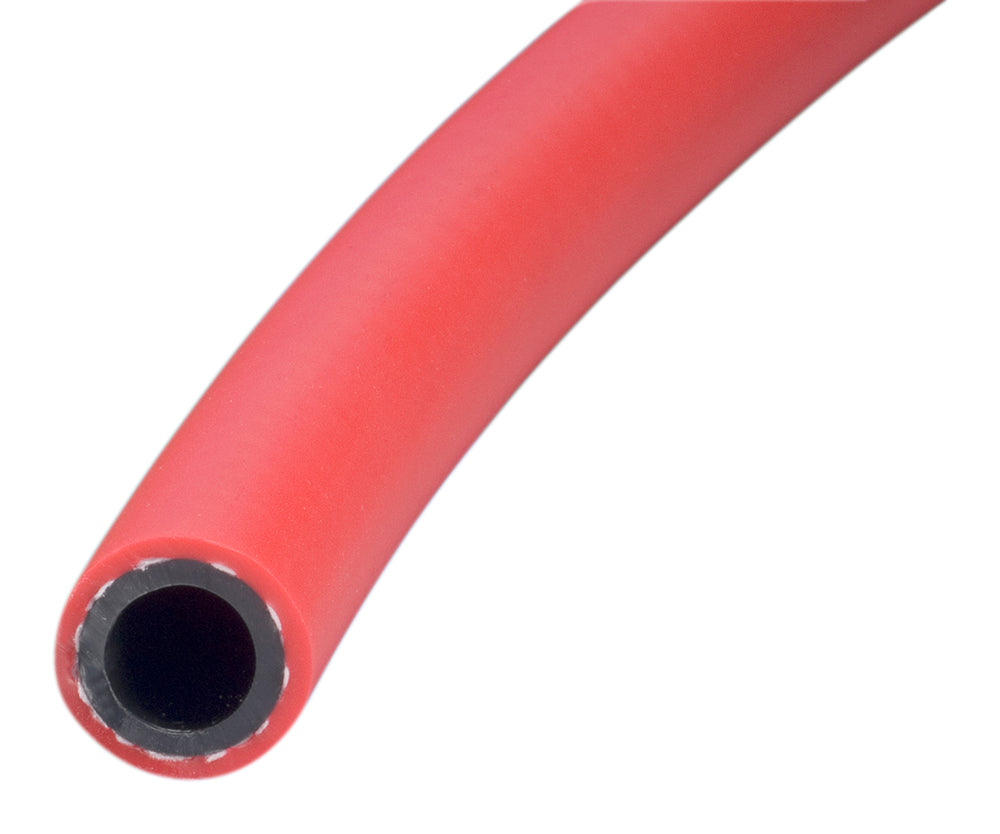

K1134-05X500 Kuri-Tec by Kuriyama | POLYAIR® | K1134 Series | Multi-Purpose Air & Water Hose | 5/16" ID | .625 OD | Red | 500ft Reel

K1134-05X500 Kuri-Tec by Kuriyama | POLYAIR® | K1134 Series | Multi-Purpose Air & Water Hose | 5/16" ID | .625 OD | Red | 500ft Reel

Sale price$520.40

Package Quantity: 500 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Ideal for in-plant applications requiring color coding of hose supply lines.
Transfer of air, water and mild water-soluble chemicals.
Outdoor applications requiring a low temperature hose.
General air supply line for pneumatic tools and paint spray systems.
Low pressure spray hose for water-soluble chemicals.
Tube: Black PVC compound. Reinforcement: Spiral polyester yarn with additional longitudinal yarns... reduces elongation under pressure.
Cover: PVC compound. Pin-pricked. Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • U. V. and weather resistant.
  • Excellent cold weather flexibility.
  • Easily re-coiled after use.
  • Medium/high oil resistance, complies with ARPM's Class B Designation.
  • Non-marking pin-pricked cover.
  • Lightweight.
  • One-piece lengths.
  • Chemical resistance of PVC.
  • Silicone-free materials.
  • RoHS compliant.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1134 Series | Red
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1134-04X100 - K1134-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1134-05X100 - K1134-05X500 5/16" 8.0mm 0.625" 15.9mm 300 PSI 180 PSI
K1134-06X100 - K1134-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1134-08X100 - - 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1134-10X100 K1134-10X300 - 5/8" 15.9mm 0.906" 23.0mm 250 PSI 125 PSI
K1134-12X100 K1134-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1134-16X100 K1134-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1131 Series | Yellow
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1131-04X100 - K1131-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1131-06X100 - K1131-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1131-08X100 - K1131-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1131-12X100 K1131-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1131-16X100 K1131-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1136 Series | Blue
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1136-04X100 - K1136-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1136-06X100 - K1136-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1136-08X100 - K1136-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1136-12X100 K1136-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1136-16X100 K1136-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1138 Series | Gray
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1138-04X100 - K1138-04X500 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
K1138-06X100 - K1138-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
K1138-08X100 - K1138-08X500 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI
K1138-12X100 K1138-12X300 - 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI
K1138-16X100 K1138-16X300 - 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI
K1137 Series | Green
Part Number
100ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1137-06X100 - K1137-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI

Additional Product Data:

Brand:
  • POLYAIR
  • Kuri Tec
Series:
  • K1134 Series
Color(s):
  • Red

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
