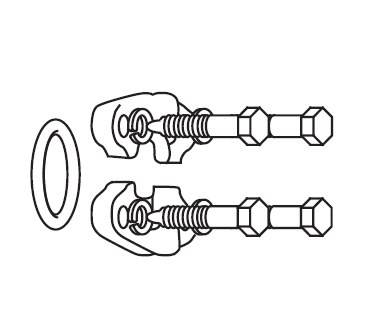

FF595-16 Aeroquip by Danfoss | Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1" Flange Size | Steel
Aeroquip® by Danfoss
SAE Code 62 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $96.37 |
| 20–59 | $87.14 |
| 60+ | $76.89 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
Seal Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
|||
| Note: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Components Included in Complete Kit: | |||||||||
| Complete Kit Part Number |
Flange Halves (2 required) Part Number |
Buna-N O-Ring (1 required) Part Number |
Bolts (4 required) Part Number |
Lock washer (4 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
| FF595-12 | FC3425-12-449 | FF9446-214 | FF9442-0624-94 | 210104-6S | 3/4" | 2.00" | 0.94" | 0.42" | 300-400 |
| FF595-16 | FC3425-16-449 | FF9446-219 | FF9442-0728-94 | 210104-7S | 1" | 2.25" | 1.10" | 0.50" | 500-600 |
| FF595-20 | FC3425-20-449 | FF9446-222 | FF9442-0828-94 | 210104-8S | 1-1/4" | 2.62" | 1.24" | 0.60" | 750-900 |
| FF595-24 | FC3425-24-449 | FF9446-225 | FF9442-1036-94 | 210104-10S | 1-1/2" | 3.12" | 1.44" | 0.66" | 1400-1600 |
| FF595-32 | FC3425-32-449 | FF9446-228 | FF9442-1244-94 | 210104-12S | 2" | 3.81" | 1.76" | 0.78" | 2400-2600 |
