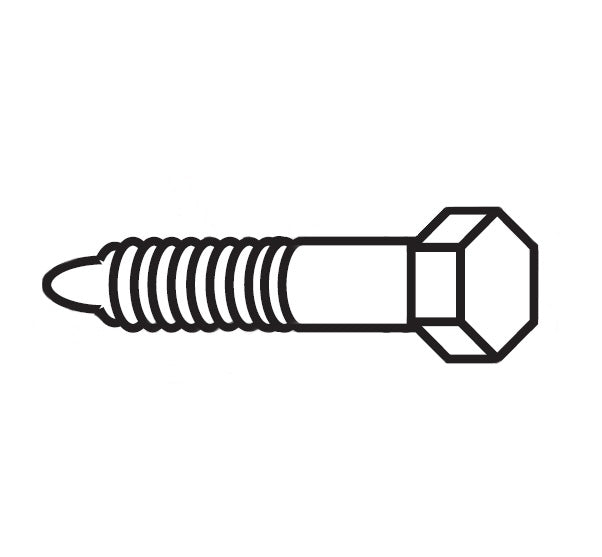

FF9442-0728-94 Aeroquip by Danfoss | Code 62 Split Flange Bolt (1 Bolt) | for 1" Flange Size | Steel
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
Flange Bolt for SAE Code 62 Split Flange Kit (SAE J518)
Important: 4 bolts are required for a complete assembly.
Flange Bolts are not sold as a pack of 4. If you require 4 bolts, set the quantity below, to 4.
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.58 |
| 40–79 | $1.43 |
| 80+ | $1.26 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Material(s):
| Technical Info: | |||
|---|---|---|---|
| Specifications: | |||
|
 |
|||||
|---|---|---|---|---|---|
| Bolts (4 required) Part Number |
Nominal Flange Size |
A | B | C | Bolt torque lb.-in |
| FF9442-0624-94 | 3/4" | 2.00" | 0.94" | 0.42" | 300-400 |
| FF9442-0728-94 | 1" | 2.25" | 1.10" | 0.50" | 500-600 |
| FF9442-0828-94 | 1-1/4" | 2.62" | 1.24" | 0.60" | 750-900 |
| FF9442-1036-94 | 1-1/2" | 3.12" | 1.44" | 0.66" | 1400-1600 |
| FF9442-1244-94 | 2" | 3.81" | 1.76" | 0.78" | 2400-2600 |
