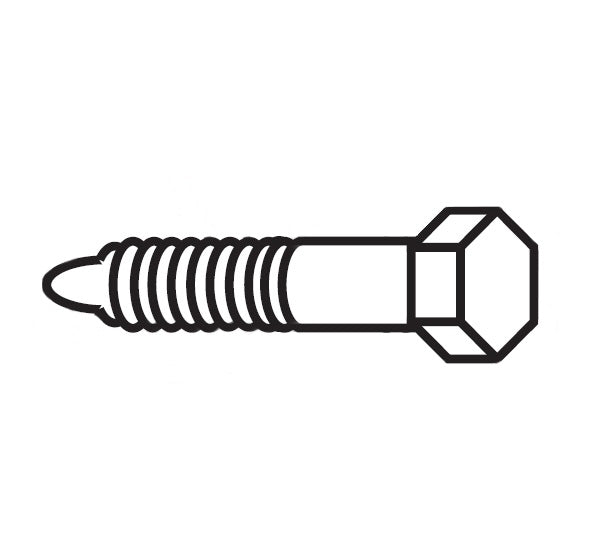

FF9442-1036-94 Aeroquip by Danfoss | Code 62 Split Flange Bolt (1 Bolt) | for 1-1/2" Flange Size | Steel

FF9442-1036-94 Aeroquip by Danfoss | Code 62 Split Flange Bolt (1 Bolt) | for 1-1/2" Flange Size | Steel

Minimum Order Quantity: 5 Units

Sale price$4.28
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Bolts
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF9442-0624-94 3/4" 2.00" 0.94" 0.42" 300-400
FF9442-0728-94 1" 2.25" 1.10" 0.50" 500-600
FF9442-0828-94 1-1/4" 2.62" 1.24" 0.60" 750-900
FF9442-1036-94 1-1/2" 3.12" 1.44" 0.66" 1400-1600
FF9442-1244-94 2" 3.81" 1.76" 0.78" 2400-2600

Additional Product Data:

Shape:

No Orientation

Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
