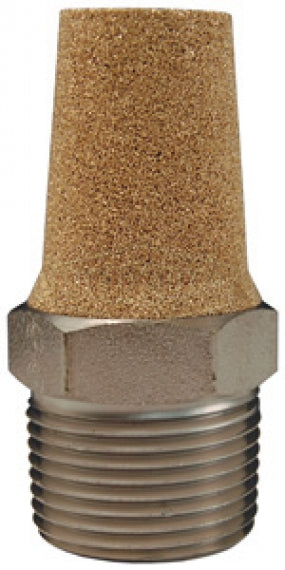

CMF18 by Dixon Valve | Pneumatic Conical Muffler | 1/8" Male NPT | 1-1/8" Overall Length | Nickel-Plated Steel

CMF18 by Dixon Valve | Pneumatic Conical Muffler | 1/8" Male NPT | 1-1/8" Overall Length | Nickel-Plated Steel

Minimum Order Quantity: 5 Units

Sale price$4.15
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Reduces noise levels below 90 dBA to conform with OSHA standards.
  • 40 micron bronze filter element.
  • Element is bonded directly to the fitting and is not replaceable.
Specifications:
  • Maximum operating pressure: 300 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number		 NPT Thread Overall Length
CMF18 1/8" 1-1/8"
CMF28 1/4" 1-3/8"
CMF38 3/8" 1-1/2"
CMF48 1/2" 1-7/8"
CMF68 3/4" 2-1/4"
CMF88 1" 2-7/8"

Additional Product Data:

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
