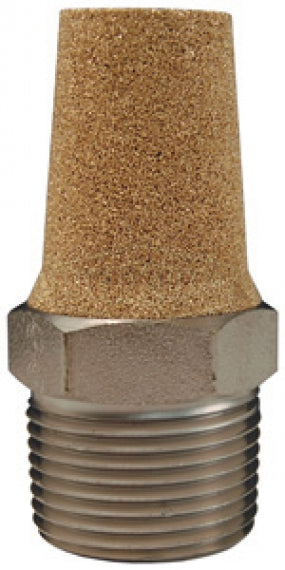

CMF48 by Dixon Valve | Pneumatic Conical Muffler | 1/2" Male NPT | 1-7/8" Overall Length | Nickel-Plated Steel

CMF48 by Dixon Valve | Pneumatic Conical Muffler | 1/2" Male NPT | 1-7/8" Overall Length | Nickel-Plated Steel

Sale price$11.35
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Reduces noise levels below 90 dBA to conform with OSHA standards.
  • 40 micron bronze filter element.
  • Element is bonded directly to the fitting and is not replaceable.
Specifications:
  • Maximum operating pressure: 300 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number		 NPT Thread Overall Length
CMF18 1/8" 1-1/8"
CMF28 1/4" 1-3/8"
CMF38 3/8" 1-1/2"
CMF48 1/2" 1-7/8"
CMF68 3/4" 2-1/4"
CMF88 1" 2-7/8"
