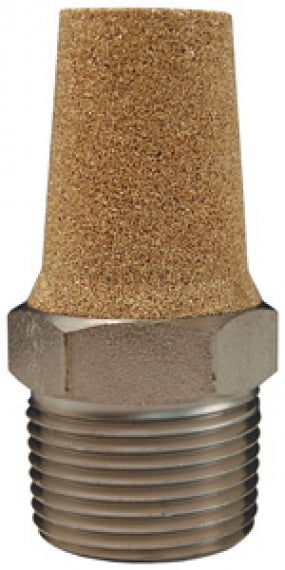

CMF38 by Dixon Valve | Pneumatic Conical Muffler | 3/8" Male NPT | 1-1/2" Overall Length | Nickel-Plated Steel

CMF38 by Dixon Valve | Pneumatic Conical Muffler | 3/8" Male NPT | 1-1/2" Overall Length | Nickel-Plated Steel

Minimum Order Quantity: 5 Units

Sale price$6.76

Conical Mufflers Conical mufflers are easy to install, threading the exhaust ports of air tool, valves, cylinders and other pneumatic equipment. They offer an economical method of reducing the noise levels below 90 dBA, conforming with OSHA standards. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Buy More, Save More!
Quantity Price Each
20–39 $6.35
40–79 $5.75
80+ $5.07
Discounts applied in cart/checkout.

Product Data:
Features:
  • Reduces noise levels below 90 dBA to conform with OSHA standards.
  • 40 micron bronze filter element.
  • Element is bonded directly to the fitting and is not replaceable.
Specifications:
  • Maximum operating pressure: 300 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number		 NPT Thread Overall Length
CMF18 1/8" 1-1/8"
CMF28 1/4" 1-3/8"
CMF38 3/8" 1-1/2"
CMF48 1/2" 1-7/8"
CMF68 3/4" 2-1/4"
CMF88 1" 2-7/8"
