L04C855M by Fenner Drives | Eagle 85 Round Belting | 5mm Diameter | Non-Reinforced | Clear | 100ft

L04C855M by Fenner Drives | Eagle 85 Round Belting | 5mm Diameter | Non-Reinforced | Clear | 100ft

Sale price$159.97
Fenner Drives - Conveying - Round Belting - 4mm, 5mm, 3/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Quantity Price Each
15–29 $151.97
30–59 $143.97
60+ $127.98
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

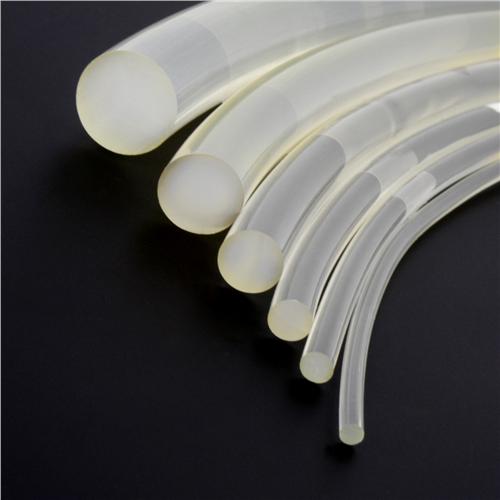

  • Eagle Clear 85 Non-Reinforced Round Belting is constructed of solid polyurethane with an 85 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 85 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 85 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a round profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 80 Shore A durometer polyurethane belting
  • High elasticity; no take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Clear 85 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 2mm, 3/16", 3/32", 3/4", 3/8", 3mm, 4mm, 5/16", 5/8", 5mm, 6mm, 7mm, 8mm, 9/16"
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928002 Eagle Blue 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
4927002 Eagle Clear 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
L04OP804 Eagle Opaque 80 --- 4mm 1.1" 28mm 0.8 3.7 1.4 6.2 2 8.7 2.5 11 0.01 lbs 0.015 kg
L04OG854 Eagle Orange 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04C854 Eagle Clear 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04R8504 Eagle Red 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
L04BL854 Eagle Blue 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
4905404 Eagle Green 89 --- 4mm 1.42" 36mm 1.3 5.7 2.1 9.3 2.9 12.8 3.6 16 0.01 lbs 0.015 kg
4905304 Eagle Green 89 Textured --- 4mm 1.42" 36mm 0.9 4.1 1.5 6.8 2.1 9.3 2.6 11.6 0.01 lbs 0.015 kg
4940021 Eagle Red 90 --- 4mm 1.57" 40mm 4.2 18.6 6 26.8 7.6 33.8 8.9 39.5 0.01 lbs 0.015 kg
4941100 Eagle Blue 80 MD 3/16" --- 1.31" 33mm 0.8 3.5 1.2 5.4 1.6 7 1.9 8.6 0.013 lbs 0.02 kg
1032006 Eagle Orange 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4908009 Eagle Clear 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4940022 Eagle Red 90 3/16" --- 1.88" 48mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
4907009 Eagle Clear 95 3/16" --- 1.88" 48mm 2 9.1 3 13.5 3.9 17.3 4.6 20.6 0.015 lbs 0.022 kg
4934009 Eagle Clear 85 QC .188" x .080" --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4934021 Eagle Yellow 85 QC .188" x .080"* --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4928003 Eagle Blue 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
4927003 Eagle Clear 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
L04OP805M Eagle Opaque 80 --- 5mm 1.38" 35mm 1.3 5.7 2.2 9.7 3.1 13.6 3.9 17.2 0.016 lbs 0.024 kg
4940100 Eagle Orange 85 --- 5mm 1.57" 40mm 1.2 5.4 1.9 8.3 2.5 11 3.1 13.6 0.016 lbs 0.024 kg
L04C855M Eagle Clear 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04R855 Eagle Red 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04BL855M Eagle Blue 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
4905405 Eagle Green 89 --- 5mm 1.77" 45mm 2 8.9 3.3 14.6 4.5 20.1 5.6 25.1 0.016 lbs 0.023 kg
4905305 Eagle Green 89 Textured --- 5mm 1.77" 45mm 1.5 6.5 2.4 10.6 3.3 14.6 4.1 18.2 0.016 lbs 0.023 kg
L04R9005M Eagle Red 90 --- 5mm 1.97" 50mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
L04BE955M Eagle Beige 95 --- 5mm 1.97" 50mm 5.3 23.6 7.5 33.4 9.4 41.8 11 48.8 0.016 lbs 0.024 kg
L04QC855M Eagle Clear 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
L04QR855M Eagle Red 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
4935009 QC Connectors 25/pack N/A N/A
