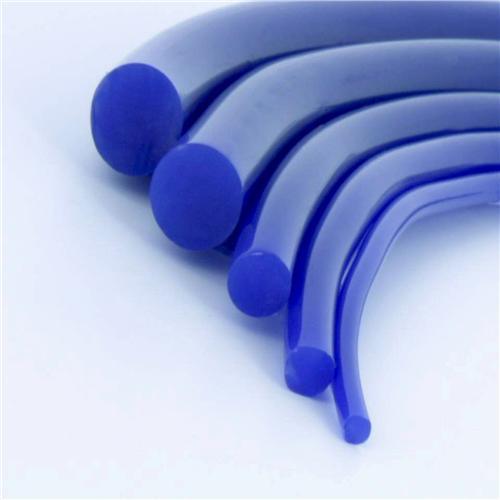

4928002 by Fenner Drives | Eagle 80 EC Round Belting | 4mm Diameter | Non-Reinforced | Blue | 100ft

Sale price$123.35

Fenner Drives - Conveying - Round Belting - 4mm, 5mm, 3/16" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT


Quantity Price Each
15–29 $117.18
30–59 $111.02
60+ $98.68
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Eagle
Series:
  • 80 EC Series
Overview:
  • Eagle Blue 80 EC Non-Reinforced Round Belting is made of solid polyurethane designed specifically for direct food contact within the framework defined by the Regulation 1935/2004/EC. Also offers excellent abrasion resistance and high elasticity. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Blue 80 EC Non-Reinforced Round Belting is Fenner Drives' latest addition to the already stellar Eagle line. This Eagle premium belt is suitable for repeat use direct food contact at temperatures up to 40 deg. C (104 deg.F) with all food types having a pH of greater than 4.5.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

    80 Shore A durometer polyurethane belting Eagle premium belting for repeated direct food contact Independently tested and verified to meet FDA standards for direct food contact For repeat use food contact at temps up to 40 deg. C with all types having a pH greater than 4.5. Solid polyurethane construction Produced in accordance with Good Manufacturing Practice (GMP) standards with exacting quality control, Eagle EC Belting is of such dimensional consistency sanitary conveyor system performance and reliability is improved.

    Eagle Blue EC Non-Reinforced Round Belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 8mm, 9.5mm
Reinforcement: None Color: Blue
Compliancy: EC Food Safety, FDA, REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928002 Eagle Blue 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
4927002 Eagle Clear 80 EC --- 4mm 1.1" 28mm 0.6 2.8 0.9 4.2 1.3 5.6 1.5 6.7 0.009 lbs 0.014 kg
L04OP804 Eagle Opaque 80 --- 4mm 1.1" 28mm 0.8 3.7 1.4 6.2 2 8.7 2.5 11 0.01 lbs 0.015 kg
L04OG854 Eagle Orange 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04C854 Eagle Clear 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 1.9 8.6 0.01 lbs 0.015 kg
L04R8504 Eagle Red 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
L04BL854 Eagle Blue 85 --- 4mm 1.26" 32mm 0.8 3.4 1.2 5.3 1.6 7 2 8.7 0.01 lbs 0.015 kg
4905404 Eagle Green 89 --- 4mm 1.42" 36mm 1.3 5.7 2.1 9.3 2.9 12.8 3.6 16 0.01 lbs 0.015 kg
4905304 Eagle Green 89 Textured --- 4mm 1.42" 36mm 0.9 4.1 1.5 6.8 2.1 9.3 2.6 11.6 0.01 lbs 0.015 kg
4940021 Eagle Red 90 --- 4mm 1.57" 40mm 4.2 18.6 6 26.8 7.6 33.8 8.9 39.5 0.01 lbs 0.015 kg
4941100 Eagle Blue 80 MD 3/16" --- 1.31" 33mm 0.8 3.5 1.2 5.4 1.6 7 1.9 8.6 0.013 lbs 0.02 kg
1032006 Eagle Orange 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4908009 Eagle Clear 85 3/16" --- 1.5" 38mm 1.1 4.9 1.7 7.5 2.2 10 2.8 12.3 0.014 lbs 0.021 kg
4940022 Eagle Red 90 3/16" --- 1.88" 48mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
4907009 Eagle Clear 95 3/16" --- 1.88" 48mm 2 9.1 3 13.5 3.9 17.3 4.6 20.6 0.015 lbs 0.022 kg
4934009 Eagle Clear 85 QC .188" x .080" --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4934021 Eagle Yellow 85 QC .188" x .080"* --- 1.5" 38mm 0.5 2 0.7 3.1 0.9 4.2 1.2 5.2 0.012 lbs 0.018 kg
4928003 Eagle Blue 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
4927003 Eagle Clear 80 EC --- 5mm 1.38" 35mm 0.9 4.2 1.4 6.3 1.9 8.4 2.4 10.6 0.015 lbs 0.022 kg
L04OP805M Eagle Opaque 80 --- 5mm 1.38" 35mm 1.3 5.7 2.2 9.7 3.1 13.6 3.9 17.2 0.016 lbs 0.024 kg
4940100 Eagle Orange 85 --- 5mm 1.57" 40mm 1.2 5.4 1.9 8.3 2.5 11 3.1 13.6 0.016 lbs 0.024 kg
L04C855M Eagle Clear 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04R855 Eagle Red 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
L04BL855M Eagle Blue 85 --- 5mm 1.57" 40mm 1.2 5.3 1.9 8.3 2.5 11 3 13.5 0.016 lbs 0.024 kg
4905405 Eagle Green 89 --- 5mm 1.77" 45mm 2 8.9 3.3 14.6 4.5 20.1 5.6 25.1 0.016 lbs 0.023 kg
4905305 Eagle Green 89 Textured --- 5mm 1.77" 45mm 1.5 6.5 2.4 10.6 3.3 14.6 4.1 18.2 0.016 lbs 0.023 kg
L04R9005M Eagle Red 90 --- 5mm 1.97" 50mm 6 26.5 8.6 38.2 10.8 48.1 12.6 56.2 0.014 lbs 0.022 kg
L04BE955M Eagle Beige 95 --- 5mm 1.97" 50mm 5.3 23.6 7.5 33.4 9.4 41.8 11 48.8 0.016 lbs 0.024 kg
L04QC855M Eagle Clear 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
L04QR855M Eagle Red 85 QC --- 5mm x 2mm* 1.57" 40mm 0.5 2.3 0.8 3.5 1.1 4.7 1.3 5.8 0.013 lbs 0.02 kg
4935009 QC Connectors 25/pack N/A N/A
