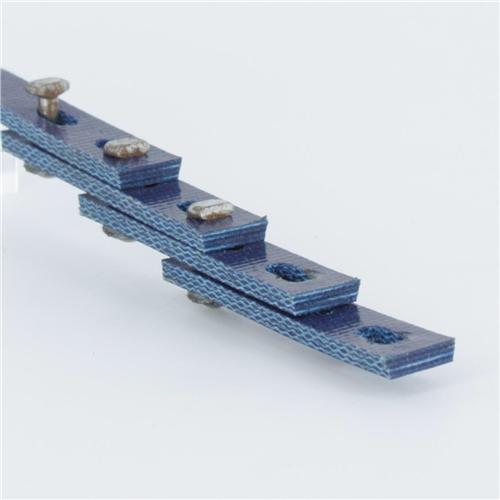

L02Z20N by Fenner Drives | SuperTLink Link Belting | Cross Section: SPZ | 20m
Fenner Drives

L02Z20N by Fenner Drives | SuperTLink Link Belting | Cross Section: SPZ | 20m

Sale price$2,535.72
Fenner Drives - Belting, Belt & Chain Tensioners for Power Transmission - Link Belting - PowerTwist Plus AA

Package Quantity: 20 M

Product Data:

Brand:
  • SuperTLink
Overview:
  • Anytime, Anywhere, Anybelt, 3L section PowerTwist Plus V-Belts combine industry standard horsepower ratings, superior performance in challenging operating environments with fast, easy installation and are a permanent replacement upgrade from traditional rubber V-belts.
Description:
    • PowerTwist Plus can't be outperformed! PowerTwist Plus sets the standard for link V-belt longevity and durability. Other brands don't come close. The combination of high strength and low elongation under load simply cannot be beaten. Because they're made of a custom-designed, high-tech polyurethane/polyester composite, PowerTwist Plus V-belts won't fail you when others may. The result? Less downtime. Higher productivity. Reduced maintenance costs.

      Best Suited For: Any power transmission application designed to use classical 3L section industrial rubber V-belts. Also ideal for conveying applications designed for 3L section belts.

    • Everyday industrial workhorse
    • Minimized maintenance time
    • High performance polyester/polyurethane composite technology with the same horsepower ratings as conventional rubber V-belts
    • Easy to inventory
    • Offer problem solving alternatives to V-belts of classical cross-sections
    • Drop-in permanent upgrade for conventional endless rubber V-belts


      The right belt at the right time! Instead of trying to carry all the endless V-belt sizes you might need, with PowerTwist Plus, you only need to stock the most common cross sections - 3L, 4L/A, 5L/B, C and D - and you'll have almost 100%, on-site availability guaranteed. With PowerTwist Plus you will reduce the inventory dollars you have tied up in replacement V-belts and still have instant availability.


    • Perfectly suited to Z/10, 3L, A/13, B/17, C/22, and D/32 drives
    • Reduced inventory... any belt, any time!
      • No tools required. No matter what equipment you are operating, productivity is critical. PowerTwist Plus V-Belts minimize downtime with no tools required, easy installation in minutes without machine tear-downs or struggling with rusted-down motor bases.


      PowerTwist Plus V-Belts have the same cross section dimensions as conventional endless V-belts and can be installed on existing pulleys with no changes in set-up.


      Single or matched V-belt sets can be made with a flick of the wrist! PowerTwist Plus V-Belts can be made up to required length by hand in seconds and rolled onto the drive just like a bicycle chain. Their custom multi-ply composite construction prevents roll-on damage. If conventional rubber V-belts are installed this way, almost certainly some of the load-bearing tension cords will be broken, leading to significantly reduced belt life.


    • Easier, faster installation
    • Easily installed without dismantling drive components
    • Make any length by hand in seconds without any tools
    • Simplified drive design


      Tame hostile environments If your V-belt drives are operating in hostile, nasty environments, you've got to take advantage of the high performance properties of polyurethanes. That's why we use a high performance polyurethane elastomer reinforced with multiple plies of polyester fabric for PowerTwist Plus. This custom material provides PowerTwist Plus with significantly superior resistance to oils, grease, water, most common industrial/agricultural chemicals and solvents. Plus an operating temperature range, with no loss of performance, of -40 deg F to +240 deg F. Conventional SBR/chloroprene brand V-belts simply can't compete.


      If your drive environment is like hell's kitchen and conventional V-belt life is down to a few months, PowerTwist Plus may be your long term answer.
    • Longer belt life in harsh operating conditions
    • Unaffected by extreme temperatures, water, steam, oil, grease, and common industrial chemicals and solvents


      Reduce transmitted vibration. All conventional V-belts with a continuous internal continuous tensile cord will transmit vibrations from the motor to driven components; these vibrations cause system noise and can significantly shorten bearing life. The segmented twist-lock design of PowerTwist Plus acts as a vibration dampener - vibration can enter a link but cannot be transmitted as there is no continuous tension cord present. Save your bearings - fit PowerTwist Plus V-belts!


    • unique belt construction dampens transmitted motor vibrations, extending the bearing life and reducing noise levels
    • high resistance to abrasion and shock loads


    RoHS 2002/95/EC Directive compliant.

SPECIFICATIONS

Profile Shape: Vee Profile Size: 3L
Reinforcement: None Color: Red
Compliancy: RoHS Material: Composite Polyester/Polyurethane
Minimum Pulley Diameter: 2.00" Top Width: 3/8"

Part Number Material & Color Cross Section Nominal Width Length Minimum Pulley Weight
inches mm inches mm
L04BY403M PowerTwist Plus 3L 3/8" --- 5' Sleeve 2.00" --- N/A
0405010 PowerTwist Plus 3L 3/8" --- 25ft 2.00" --- N/A
0408010 PowerTwist Plus 3L 3/8" --- 100ft 2.00" --- N/A
04100202 PowerTwist Plus Z/10 --- 10mm 2m Sleeve --- 45mm N/A
0410020 PowerTwist Plus Z/10 --- 10mm 10m --- 45mm N/A
0418023 PowerTwist Plus Z/10 --- 10mm 30m --- 45mm N/A
L01Z5 NuTLink Z/10 --- 10mm 5m --- 45mm N/A
L01Z20 NuTLink Z/10 --- 10mm 20m --- 45mm N/A
0418030SL PowerTwist Plus A/4L/13 1/2" 13mm 5' Sleeve 3.00" 80mm N/A
0418030SL PowerTwist Plus A/4L/13 1/2" 13mm 5' Sleeve 3.00" 80mm N/A
04090502M PowerTwist Plus A/4L/13 1/2" 13mm 2m Sleeve 3.00" 80mm N/A
0405030 PowerTwist Plus A/4L/13 1/2" 13mm 25' 3.00" 80mm N/A
0408030 PowerTwist Plus A/4L/13 1/2" 13mm 100ft 3.00" 80mm N/A
0410030 PowerTwist Plus A/4L/13 1/2" 13mm 10m 3.00" 80mm N/A
0418033 PowerTwist Plus A/4L/13 1/2" 13mm 30m 3.00" 80mm N/A
0408505 PowerTwist Plus Antistatic A/4L/13 1/2" 13mm 25ft 3.00" 80mm N/A
0408501 PowerTwist Plus Antistatic A/4L/13 1/2" 13mm 100ft 3.00" 80mm N/A
040850010 PowerTwist Plus Antistatic A/4L/13 1/2" 13mm 10m 3.00" 80mm N/A
0408500 PowerTwist Plus Antistatic A/4L/13 1/2" 13mm 30m 3.00" 80mm N/A
L01A5 NuTLink A/13 1/2" 13mm 5m 3.00" 80mm N/A
L01A20 NuTLink A/13 1/2" 13mm 20m 3.00" 80mm N/A
0405230 PowerTwist Plus AA 1/2" 13mm 25ft 3.00" 80mm N/A
0408230 PowerTwist Plus AA 1/2" 13mm 100ft 3.00" 80mm N/A
0418050SL PowerTwist Plus B/5L/17 5/8" 17mm 6' Sleeve 5.00" 125mm N/A
04090302M PowerTwist Plus B/5L/17 5/8" 17mm 2m Sleeve 5.00" 125mm N/A
0405050 PowerTwist Plus B/5L/17 5/8" 17mm 25ft 5.00" 125mm N/A
0408050 PowerTwist Plus B/5L/17 5/8" 17mm 100ft 5.00" 125mm N/A
0410050 PowerTwist Plus B/5L/17 5/8" 17mm 10m 5.00" 125mm N/A
0418053 PowerTwist Plus B/5L/17 5/8" 17mm 30m 5.00" 125mm N/A
0408605 PowerTwist Plus Antistatic B/5L/17 5/8" 17mm 25ft 5.00" 125mm N/A
0408601 PowerTwist Plus Antistatic B/5L/17 5/8" 17mm 100ft 5.00" 125mm N/A
040860010 PowerTwist Plus Antistatic B/5L/17 5/8" 17mm 10m 5.00" 125mm N/A
0408600 PowerTwist Plus Antistatic B/5L/17 5/8" 17mm 30m 5.00" 125mm N/A
L01B5 NuTLink B/17 5/8" 17mm 5m 5.00" 125mm N/A
L01B20 NuTLink B/17 5/8" 17mm 20m 5.00" 125mm N/A
0405250 PowerTwist Plus BB 5/8" 17mm 25ft 5.00" 125mm N/A
0408250 PowerTwist Plus BB 5/8" 17mm 100ft 5.00" 125mm N/A
0419250 PowerTwist Plus BB 5/8" 17mm 30m 5.00" 125mm N/A
0419250 PowerTwist Plus BB 5/8" 17mm 30m 5.00" 125mm N/A
0405070 PowerTwist Plus C/22 7/8" 22mm 25ft 9.00" 229mm N/A
0408070 PowerTwist Plus C/22 7/8" 22mm 100ft 9.00" 229mm N/A
0418073 PowerTwist Plus C/22 7/8" 22mm 30m 9.00" 229mm N/A
L01C5 NuTLink C/22 7/8" 22mm 5m 9.00" 229mm N/A
L01C20 NuTLink C/22 7/8" 22mm 20m 9.00" 229mm N/A
0405270 PowerTwist Plus CC 7/8" 22mm 25ft 9.00" 229mm N/A
0408270 PowerTwist Plus CC 7/8" 22mm 100ft 9.00" 229mm N/A
0418270 PowerTwist Plus CC 7/8" 22mm 30m 9.00" 229mm N/A
0405090 PowerTwist Plus D/32 1-1/4" 32mm 25ft 13.2" 335mm N/A
0408090 PowerTwist Plus D/32 1-1/4" 32mm 100ft 13.2" 335mm N/A
0405090 PowerTwist Plus D/32 1-1/4" 32mm 10m 13.2" 335mm N/A
0418093 PowerTwist Plus D/32 1-1/4" 32mm 30m 13.2" 335mm N/A
0407100 SuperTLink 3V 0.45" 11mm 100ft 2.8" 71mm N/A
0417025 SuperTLink 5V 0.66" 17mm 25ft 5.5" 140mm N/A
0417100 SuperTLink 3V 0.45" 11mm 100ft 2.8" 71mm N/A
L02Z5N SuperTLink SPZ --- 10mm 5m --- 71mm N/A
L02Z20N SuperTLink SPZ --- 10mm 20m --- 71mm N/A
L02A5N SuperTLink SPA --- 13mm 5m --- 90mm N/A
L02A20N SuperTLink SPA --- 13mm 20m --- 90mm N/A
L02B5 SuperTLink SPB --- 17mm 5m --- 140mm N/A
L02B20 SuperTLink SPB --- 17mm 20m --- 140mm N/A
L02C5 SuperTLink SPC --- 22mm 5m --- 224mm N/A
L02C20 SuperTLink SPC --- 22mm 20m --- 224mm N/A
04051050 PowerTwist Ground Round 5/16" --- --- 25ft 2.00" 51mm N/A
04081050 PowerTwist Ground Round 5/16" --- --- 100ft 2.00" 51mm N/A
04051060 PowerTwist Ground Round 3/8" --- --- 25ft 3.00" 76mm N/A
04081060 PowerTwist Ground Round 3/8" --- --- 100ft 3.00" 76mm N/A
04051040 PowerTwist Ground Round 1/2" --- --- 25ft 3.00" 76mm N/A
04081040 PowerTwist Ground Round 1/2" --- --- 100ft 3.00" 76mm N/A
04051070 PowerTwist Ground Round 9/16" --- --- 25ft 5.50" 140mm N/A
04081070 PowerTwist Ground Round 9/16" --- --- 100ft 5.50" 140mm N/A
04081080 PowerTwist Ground Round 3/4" --- --- 100ft 8.50" 216mm N/A
L02NT10 TLink Installation Tool (10pk)
