818R-2 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 7/8x14 Thread Size | for 100R2 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

818R-2 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 7/8x14 Thread Size | for 100R2 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$32.61
Buy more, save moreDiscounts applied in cart/checkout.
Reusable — Field Attachable

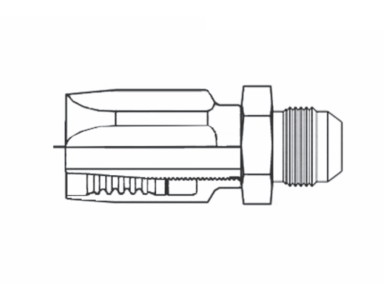

818R Reusable Coupling — JIC 37°, Male Solid, Straight

818R is the JIC 37°, Male Solid, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hose Type
618R-1 3/8" 9/16x18 3/8" 100R1 Thin
618R-2 3/8" 9/16x18 3/8" 100R2 Thin
815R-2 1/2" 3/4x16 1/2" 100R2 Thin
818R-2 1/2" 7/8x14 5/8" 100R2 Thin

Additional Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 5/8in Male JIC
  • 1/2in Reusable Hose End
