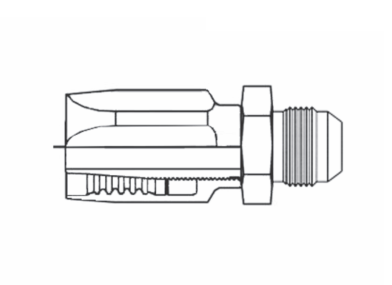

618R-1 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 9/16x18 Thread Size | for 100R1 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

618R-1 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 9/16x18 Thread Size | for 100R1 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$39.87

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - JIC 37° - Male Solid
Buy More, Save More!
Quantity Price Each
10–39 $37.48
40–79 $33.89
80+ $29.90
Discounts applied in cart/checkout.

Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 3/8in Male JIC
  • 3/8in Reusable Hose End
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Pipe Size Thread Size Hose Type
    618R-1 3/8" 9/16x18 3/8" 100R1 Thin
    618R-2 3/8" 9/16x18 3/8" 100R2 Thin
    815R-2 1/2" 3/4x16 1/2" 100R2 Thin
    818R-2 1/2" 7/8x14 5/8" 100R2 Thin

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
