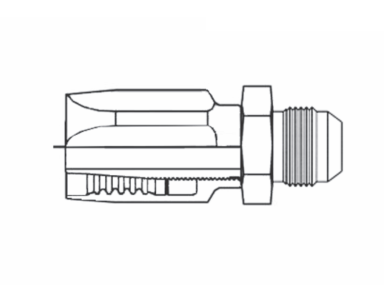

815R-2 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 3/4x16 Thread Size | for 100R2 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

815R-2 by Couplamatic | R1 & R2 Reusable Coupling | 1/2" Hose ID x 3/4x16 Thread Size | for 100R2 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

Sale price$30.48
Buy more, save moreDiscounts applied in cart/checkout.
Reusable — Field Attachable

818R Reusable Coupling — JIC 37°, Male Solid, Straight

818R is the JIC 37°, Male Solid, Straight configuration of the Reusable Coupling, terminating 100R1 and 100R2 thin cover hose, or 100R5 textile cover hose, depending on the series.

1

What are the main product features?
  • Non-Mandrel and No Skive
  • Trivalent Zinc Plating
  • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
  • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
  • Field attachable — assembles with hand tools; no crimp machine needed.
  • Reusable — the coupling can be removed and reinstalled on a new length of hose.
  • Ideal for field repair — keeps equipment running where a crimper is not available.
2

Which sizes are available?
Part Number Hose ID Pipe Size Thread Size Hose Type
618R-1 3/8" 9/16x18 3/8" 100R1 Thin
618R-2 3/8" 9/16x18 3/8" 100R2 Thin
815R-2 1/2" 3/4x16 1/2" 100R2 Thin
818R-2 1/2" 7/8x14 5/8" 100R2 Thin

Additional Product Data:

Series:
  • Reusable Fitting Series
Shape:

Straight

Ends Configuration:
  • 1/2in Male JIC
  • 1/2in Reusable Hose End

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
