7701-312X12 by FlexFab | Series 7701 | 3-ply Fiberglass Reinforced Turbo Sleeve | 3.13" x 3.32" OD | 12ft Length
FlexFab

7701-312X12 by FlexFab | Series 7701 | 3-ply Fiberglass Reinforced Turbo Sleeve | 3.13" x 3.32" OD | 12ft Length

Sale price$497.53

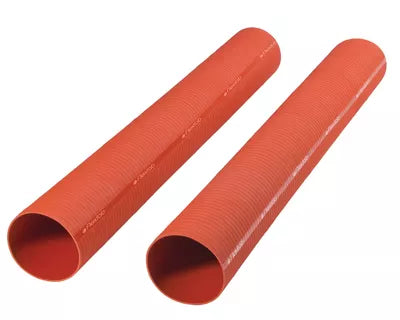

Flexfab Industrial Hose - Series 7701 - Fiberglass Reinforced Turbo Sleeves

WARNING: This product may take 5-7 weeks to ship.

Package Quantity: 12 units

Product Data:

Series:
  • 7701 Series
Color(s):
  • Orange
Internal Diameter:
  • 3.13in
Overview:
  • Comes in 3' lengths
  • 12' Lengths Also Available
Construction:
  • 3-Ply Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Wall thickness is .080"/.110"
Applications:
  • For connection between the turbocharger and the engine (where no vibration is present)
  • Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment

Part Number (3ft & 12ft) Inside Diameter Outside Diameter Burst Pressure Maximum OperatingPressure - (PSI) Weight Clamp
7701-075 & 7701-075X12 0.75" 0.94" 135 PSI 45 PSI 0.450 lbs./ft FLX2582-0010
7701-087 & 701-087X12 0.88" 1.07" 135 PSI 45 PSI 0.475 lbs./ft FLX2582-0010
7701-100 & N/A 1.00" 1.19" 135 PSI 45 PSI 0.500 lbs./ft FLX2582-0012
7701-112 & 7701-112X12 1.12" 1.31" 120 PSI 40 PSI 0.525 lbs./ft FLX2582-0016
7701-125 & N/A 1.25" 1.44" 120 PSI 40 PSI 0.550 lbs./ft FLX2583-0138 or FLX2584-0175
7701-138 & N/A 1.38" 1.57" 120 PSI 40 PSI 0.575 lbs./ft FLX2583-0138 or FLX2584-0175
7701-150 & 7701-150X12 1.50" 1.69" 120 PSI 40 PSI 0.600 lbs./ft FLX2583-0150 or FLX2584-0212
7701-162 & 7701-162X12 1.63" 1.82" 105 PSI 35 PSI 0.625 lbs./ft FLX2583-0162 or FLX2584-0212
7701-175 & 7701-175X12 1.75" 1.94" 105 PSI 35 PSI 0.650 lbs./ft FLX2583-0175 or FLX2584-0212
7701-187 & N/A 1.88" 2.07" 105 PSI 35 PSI 0.675 lbs./ft FLX2583-0187 or FLX2584-0212
7701-200 & N/A 2.00" 2.19" 105 PSI 35 PSI 0.700 lbs./ft FLX2583-0200 or FLX2584-0262
7701-212 & N/A 2.13" 2.32" 90 PSI 30 PSI 0.725 lbs./ft FLX2583-0212 or FLX2584-0262
7701-225 & N/A 2.25" 2.44" 90 PSI 30 PSI 0.750 lbs./ft FLX2583-0225 or FLX2584-0262
7701-238 & N/A 2.38" 2.57" 90 PSI 30 PSI 0.775 lbs./ft FLX2583-0238 or FLX2584-0312
7701-250 & 7701-250X12 2.50" 2.69" 90 PSI 30 PSI 0.800 lbs./ft FLX2583-0250 or FLX2584-0312
7701-262 & 7701-262X12 2.63" 2.82" 75 PSI 25 PSI 0.825 lbs./ft FLX2583-0262 or FLX2584-0312
7701-275 & 7701-275X12 2.75" 2.94" 75 PSI 25 PSI 0.850 lbs./ft FLX2583-0275 or FLX2584-0312
7701-287 & 7701-287X12 2.88" 3.07" 75 PSI 25 PSI 0.875 lbs./ft FLX2583-0287 or FLX2584-0362
7701-300 & 7701-300X12 3.00" 3.19" 75 PSI 25 PSI 0.900 lbs./ft FLX2583-0300 or FLX2584-0362
7701-312 & 7701-312X12 3.13" 3.32" 60 PSI 20 PSI 0.925 lbs./ft FLX2583-0312 or FLX2584-0362
7701-325 & 7701-325X12 3.25" 3.44" 60 PSI 20 PSI 0.950 lbs./ft FLX2583-0325 or FLX2584-0362
7701-338 & 7701-338X12 3.38" 3.57" 60 PSI 20 PSI 0.975 lbs./ft FLX2583-0338 or FLX2584-0412
7701-350 & 7701-350X12 3.50" 3.69" 60 PSI 20 PSI 1.000 lbs./ft FLX2583-0350 or FLX2584-0412
7701-375 & 7701-375X12 3.75" 3.94" 45 PSI 15 PSI 1.050 lbs./ft FLX2583-0375 or FLX2584-0412
7701-400 & 7701-400X12 4.00" 4.19" 45 PSI 15 PSI 1.100 lbs./ft FLX2583-0400 or FLX2584-0462
7701-425 & 7701-425X12 4.25" 4.44" 30 PSI 10 PSI 1.150 lbs./ft FLX2583-0425 or FLX2584-0462
7701-450 & 7701-450X12 4.50" 4.69" 30 PSI 10 PSI 1.175 lbs./ft FLX2583-0450 or FLX2584-0512
7701-500 & 7701-500X12 5.00" 5.19" 30 PSI 10 PSI 1.200 lbs./ft FLX2583-0500 or FLX2584-0562
7701-600 & 7701-600X12 6.00" 6.19" 30 PSI 10 PSI 1.300 lbs./ft FLX2584-0662

*Specifications for reference only. Specific test data available on request.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
