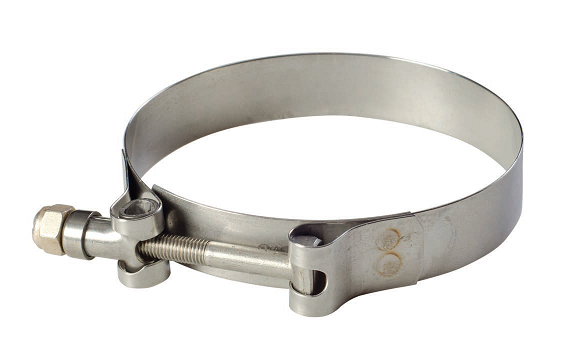

FLX2583-0150 by FlexFab | Series 2583 | T-Bolt Clamps | 1.50" Min Dia | 1.63" Max Dia | 10 Per pack
FlexFab

FLX2583-0150 by FlexFab | Series 2583 | T-Bolt Clamps | 1.50" Min Dia | 1.63" Max Dia | 10 Per pack

Sale price$134.93

Flexfab Industrial Hose - Series 2583 - T-Bolt Clamps

Package Quantity: 10 EA

Product Data:

Series:
  • Series 2583
Material(s):
  • 300 Stainless Steel
Minimum Clamp I.D.:

1.5"
Overview:
  • Recommended for Charge Air Connectors and Turbo Charger Sleeves
  • Heavy-duty T-Bolt clamps provide uniform sealing pressure for a positive, reliable seal. Designed for use in high vibration applications in heavy-duty trucks, industrial machinery, off-road equipment, agricultural irrigation equipment and machinery. Features a 3/4" wide stainless steel band with welded construction for reliability.
Specifications:
  • All 300 grade stainless steel T-bolt clamps
  • Hex Head: 7/16" with Nylon insert
  • Band Width: 3/4"
Applications:
  • Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting
  • Resists salt water and may be used in marine applications
CAC And Turbo Charger Hose Clamping Instructions:
  • Use only T-bolt style clamps. Constant torque T-bolt style clamps may help retain clamp load. Torque clamps to 70-75 inch-lbs.
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs - Per 10
FLX2583-0138 1.38" 1.56" 10 1 lbs
FLX2583-0150 1.50" 1.63" 10 1.5 lbs
FLX2583-0163 1.63" 1.88" 10 1.5 lbs
FLX2583-0175 1.75" 2.00" 10 1.5 lbs
FLX2583-0188 1.88" 2.19" 10 1.5 lbs
FLX2583-0200 2.00" 2.31" 10 1.5 lbs
FLX2583-0213 2.13" 2.44" 10 1.5 lbs
FLX2583-0225 2.25" 2.56" 10 1.5 lbs
FLX2583-0238 2.38" 2.69" 10 1.5 lbs
FLX2583-0250 2.50" 2.81" 10 1.5 lbs
FLX2583-0263 2.63" 2.94" 10 1.5 lbs
FLX2583-0275 2.75" 3.06" 10 1.5 lbs
FLX2583-0288 2.88" 3.19" 10 1.5 lbs
FLX2583-0300 3.00" 3.31" 10 1.5 lbs
FLX2583-0313 3.13" 3.44" 10 1.5 lbs
FLX2583-0325 3.25" 3.56" 10 1.5 lbs
FLX2583-0338 3.38" 3.69" 10 1.5 lbs
FLX2583-0350 3.50" 3.81" 10 1.5 lbs
FLX2583-0363 3.63" 3.94" 10 1.5 lbs
FLX2583-0375 3.75" 4.06" 10 1.5 lbs
FLX2583-0400 4.00" 4.31" 10 2 lbs
FLX2583-0425 4.25" 4.56" 10 2 lbs
FLX2583-0450 4.50" 4.81" 10 2 lbs
FLX2583-0475 4.75" 5.06" 10 2 lbs
FLX2583-0500 5.00" 5.31" 10 2 lbs
*Specifications for reference only.
