FLX2584-0312 by FlexFab | Series 2584 | Constant Tension Clamps | 2.25" Min Dia | 3.13" Max Dia | 10 Per pack
FlexFab

FLX2584-0312 by FlexFab | Series 2584 | Constant Tension Clamps | 2.25" Min Dia | 3.13" Max Dia | 10 Per pack

Sale price$153.69

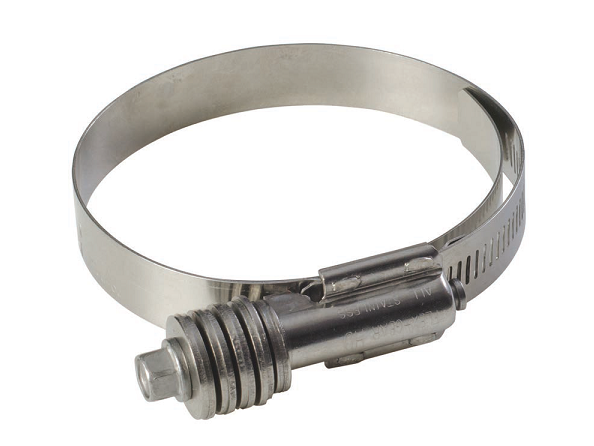

Flexfab Industrial Hose - Series 2584 - Constant Tension Clamps

Package Quantity: 10 EA

Product Data:

Series:
  • Series 2584
Material(s):
  • 300 Stainless Steel
Minimum Clamp I.D.:

2.25"
Overview:
  • Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavy-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. The inner liner protects against shearing of the hose surface. This type of clamp provides a uniform 360° seal.
Specifications:
  • All 300 grade stainless steel Constant Tension lined clamps
  • Hex Head: 3/8"
  • Band Width: 5/8"
Applications:
  • Recommended for silicone coolant hose, heater hose, marine, and silicone tubing
  • Resists salt water and may be used in marine applications
Coolant And Heater Hose Clamping Instructions:
  • Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted, or wire type clamps.
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs - Per 10
FLX2584-0175 1.00" 1.75" 10 Pieces 2 lbs
FLX2584-0212 1.25" 2.13" 10 Pieces 2 lbs
FLX2584-0262 1.75" 2.63" 10 Pieces 2 lbs
FLX2584-0312 2.25" 3.13" 10 Pieces 2 lbs
FLX2584-0362 2.75" 3.63" 10 Pieces 2 lbs
FLX2584-0412 3.25" 4.13" 10 Pieces 2.5 lbs
FLX2584-0462 3.75" 4.63" 10 Pieces 2.5 lbs
FLX2584-0512 4.25" 5.13" 10 Pieces 2.5 lbs
FLX2584-0562 4.75" 5.63" 10 Pieces 2.5 lbs
FLX2584-0612 5.25" 6.13" 10 Pieces 2.5 lbs
FLX2584-0662 5.75" 6.63" 10 Pieces 3 lbs
FLX2584-0712 6.25" 7.13" 10 Pieces 3 lbs
FLX2584-0762 6.75" 7.63" 10 Pieces 3 lbs
FLX2584-0812 7.25" 8.13" 10 Pieces 3 lbs
FLX2584-0862 7.75" 8.63" 10 Pieces 3 lbs
FLX2584-0912 8.25" 9.13" 10 Pieces 3.5 lbs
*Specifications for reference only.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
