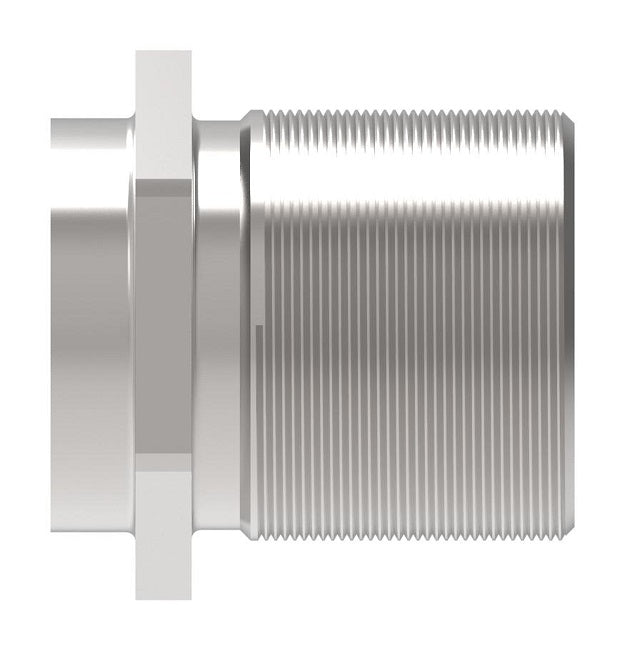

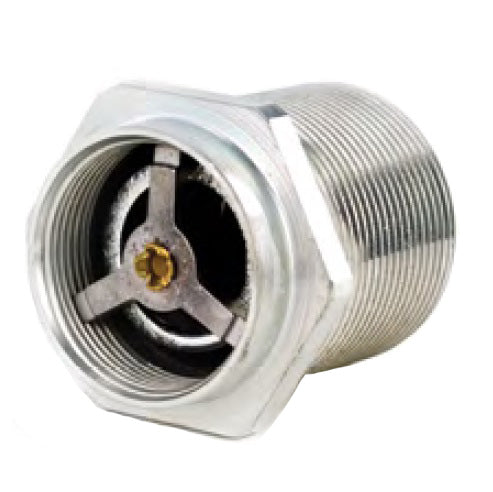

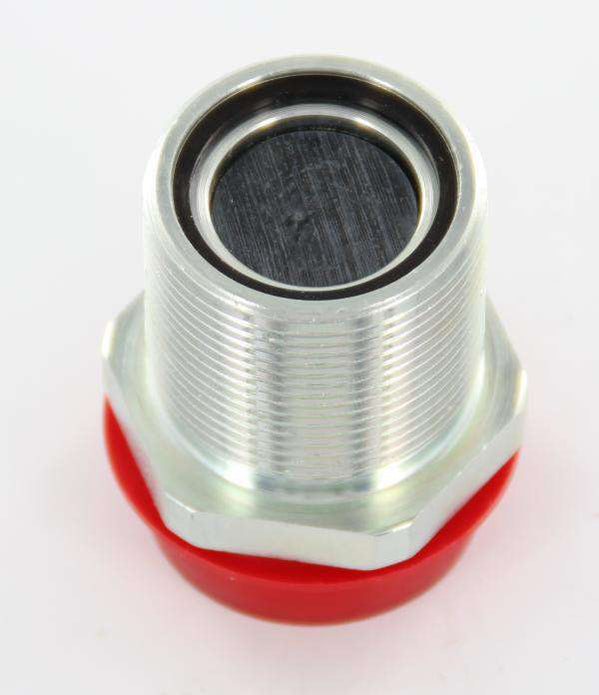

5400-S2-8 Hansen® by Danfoss | Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant | Male Half | 1/2" Body Size | Neoprene Seal | Carbon Steel
5400-S2-8 Hansen® by Danfoss | Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant | Male Half | 1/2" Body Size | Neoprene Seal | Carbon Steel
5400-S2-8 Hansen® by Danfoss | Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant | Male Half | 1/2" Body Size | Neoprene Seal | Carbon Steel

5400-S2-8 Hansen® by Danfoss | Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant | Male Half | 1/2" Body Size | Neoprene Seal | Carbon Steel

Sale price$30.76

Hansen® by Danfoss
Quick Disconnect Coupling | 5400 Series | Low Air Inclusion Refrigerant

Quick Disconnect for Refrigerant Applications.

Danfoss Hansen 5400 Series low air inclusion product line is designed for air conditioning, refrigerant, gaseous and fluid transfer applications.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $28.91
40–79 $26.15
80+ $23.07
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5400 Series
Shape:

Straight
Features:
  • Brazed or threaded end connections for versatility of installation on tubing or hose.
  • Tubular valve construction for low fluid loss and air inclusion.
  • Thread together design allows connection and disconnection against pressure.
  • Lock washer and jam nut standard for optional bulkhead mounting.
Applications & Markets:
  • Mobile air conditioning and refrigerant
  • Thermal management
Materials:
  • Standard body material: Carbon Steel
  • Standard seal material: Neoprene
  • Dura-Kote™ plating for excellent corrosion resistance.
Coupling Size Max. Operating Pressure
Connected		 Min. Burst Pressure
Connected		 Max. Operating Pressure
Disconnected		 Vacuum
Connected
Only		 Rated Flow Air Inclusion Fluid Loss
Male Half Female Half
1/4" 207 bar 3,000 psi 621 bar 9,000 psi 172 bar 2,500 psi 34 bar 500 psi 28 in./Hg 8 lpm 2 gpm .10 cc. Max. .05 cc. Max.
1/2" 121 bar 1,750 psi 359 bar 5,200 psi 121 bar 1,750 psi 28 bar 400 psi 28 in./Hg 53 lpm 14 gpm .10 cc. Max. .10 cc. Max.
3/4" 48 bar 700 psi 145 bar 2,100 psi 55 bar 800 psi 28 bar 400 psi 28 in./Hg 132 lpm 35 gpm .30 cc. Max. .10 cc. Max.
1" 48 bar 700 psi 145 bar 2,100 psi 48 bar 700 psi 21 bar 300 psi 28 in./Hg 284 lpm 75 gpm .50 cc. Max. .20 cc. Max.
Male Half (Figure 1)
Female Half (Figure 2)
5400 Series | No Adapters Added
Part Number Coupling Type Body Size Type Figure Dimensions
A B Hex 1 Hex 2
5400-S2-4 Male 1/4" No Adapter 1 1.08"
(27.4mm)		 0.83"
(21.1mm)		 (19.1mm) 0.75"
5400-S5-4 Female 1/4" No Adapter 2 1.13"
(28.7mm)		 0.83"
(21.1mm)		 (16.0mm) 0.63"
5400-S2-8 Male 1/2" No Adapter 1 1.37"
(34.8mm)		 1.26"
(32.0mm)		 (29.0mm) 1.14"
5400-S5-8 Female 1/2" No Adapter 2 1.60"
(40.6mm)		 1.30"
(33.0mm)		 (26.0mm) 1.02"
5400-S2-12 Male 3/4" No Adapter 1 1.74"
(44.2mm)		 1.83"
(46.4mm)		 (41.0mm) 1.64"
5400-S5-12 Female 3/4" No Adapter 2 2.17"
(55.1mm)		 1.77"
(45.0mm)		 (35.0mm) 1.38"
5400-S2-16 Male 1" No Adapter 1 1.83"
(46.5mm)		 2.10"
(53.0mm)		 (48.0mm) 1.89"
5400-S5-16 Female 1" No Adapter 2 2.41"
(61.1mm)		 2.20"
(56.0mm)		 (45.0mm) 1.77"
Adapters & Fittings to Add

JIC Adapter
Body Size Brass
Part Number		 Steel
Part Number
1/4" 202220-4-4B 202220-4-4S
1/4" - 202220-6-4S
1/2" - 202220-6-8S
1/2" 202220-8-8B 202220-8-8S
3/4" - 202220-10-12S
3/4" - 202220-12-12S
3/4" - 202220-16-16S

Braze Adapter
Body Size Brass
Part Number		 Steel
Part Number
1/4" 202208-4-4B -
1/2" 202208-4-8B -
1/4" 202208-6-4B -
1/2" 202208-6-8B -
1/2" 202208-8-8B -
3/4" 202208-10-12B 202208-10-12S
1/2" 202208-10-8B 202208-10-8S
3/4" 202208-12-12B -
3/4" 202208-14-12B -
1" 202208-14-16B -
1" 202208-16-16B -
1" 202208-18-16B -
1" 202208-22-16B -

SAE 100R5 Hose Fitting
Body Size Brass
Part Number		 Steel
Part Number
1/4" - 487-4-4S
1/4" - 487-4-6S
1/2" - 487-8-6S
1/2" - 487-8-8S
3/4" - 487-12-12S
1" - 487-16-16S
1" - 487-16-20S
5400 Series | Dust Caps & Dust Plugs
Dust Cap with Gasket
Dust Plug with Gasket
Dust Cap with Gasket
Part Number		 Dust Plug with Gasket
Part Number		 Body Size
5400-S6-4 5400-S8-4 1/4"
5400-S6-8 5400-S8-8 1/2"
5400-S6-12 5400-S8-12 3/4"
5400-S6-16 5400-S8-16 1"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
